Power Amplifier
ACS-250-100W
red pointer150 kHz - 250 MHz
red pointer100 Watts
red pointer3 Year Warranty




(Photo Pending)

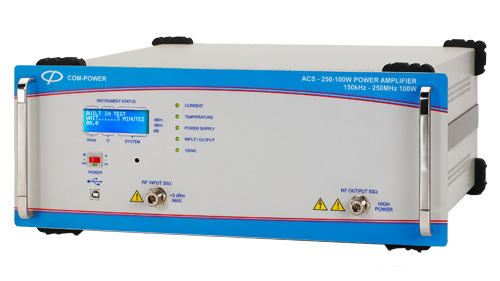

ACS-250-100W Power Amplifier

The ACS-250-100W is part of Com-Power's series of broadband RF amplifiers; diverse in application, yet specifically geared for use in EMC immunity testing applications. The ACS-250-100W model was engineered to provide high gain, with excellent efficiency and reliability, at an unbeatable price. It has 50 dB gain, 100 Watt nominal power output., The ACS-250-100W amplifier complies with all required technical specifications for IEC 61000-4-6 compliance testing, yet its low cost makes it affordable even as part of a pre-compliance testing solution.


Specifications:
Frequency Range
150 kHz to 250 MHz
Rated Power Output
100 watts into 2:1 VSWR
Gain
50 dB ±2 dB
Input for rated output
0 dBm (typical)
Automatic Safety Shut-off
140 watts
Power Output @ 1 dB Compression Point
No Compression until 100W
Input:
Impedance
50 ohms (nominal)
VSWR
1.7 (maximum)
Input Signal Modulation Compatibility:
AM, FM, or Pulse modulation
Connector
Type N on Front Panel
Output:
Impedance
50 ohms (nominal)
VSWR
1.7 (maximum)
Harmonic distortion
15 dBc minimum at 100 watts
Mismatch Tolerance
Automatic Safety Shut-off @ VSWR >7
Connector
Type N on Front Panel
Power
(Universal)
AC, Single Phase
100-240 VAC, 50/60 Hz
Display and Interfaces:
USB Remote Interface
Front Panel Display (Column 1)
Amplifier Current measurement Data
Front Panel Display (Column 2)
Amplifier Temperature measurement data
Front Panel Display (Column 3)
Load VSWR, RF Power Input/Output, Gain
Remote Interlock (optional)
2-pin DIN
Mechanical:
Cooling
Forced air (self-contained fans)
Size
19” Rack 4U
Weight
47 lbs (21.4 kg)
Operating Temperature Range
0° C to +40° C



Back Forward
