Antenna Kits
For EMC testing







Antenna Kits

Com-Power offers antenna kits suitable for offsite EMC testing. The antenna kit is supplied with a carrying case with a specific storage compartment for each item included in the kit. Please see table below for the items included with each kit.




model Frequency Range ITEMS in The kit

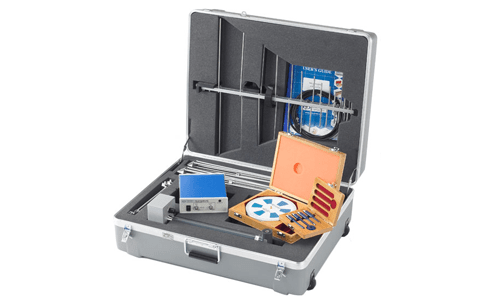

ANK-310 30 MHz - 1 GHz
  • Custom Carrying Case
  • ABF-900 Biconical Antenna (30 to 300 MHz)
  • ALC-100 Log Periodic ( 300 to 1 GHz)
  • PAM-103 Preamplifier (1 to 1000 MHz)
  • PS-500 Near Field Probes
  • CGO-501 or CGO-5051 Comb Generator
  • Cables

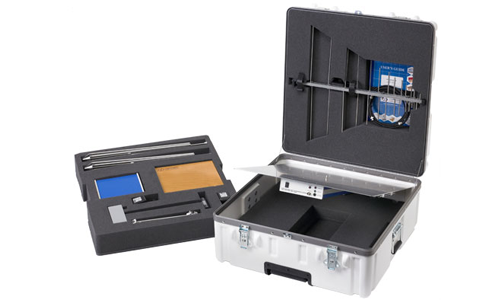

ANK-910M 9 kHz - 1 GHz
  • Custom Carrying Case
  • AM-741 Active Monopole Antenna
  • ABF-900 Biconical Antenna (30 to 300 MHz)
  • ALC-100 Log Periodic ( 300 to 1 GHz)
  • PAM-103 Preamplifier (1 to 1000 MHz)
  • PS-500 Near Field Probes
  • CGO-501 or 505 Comb Generator,
  • Cables

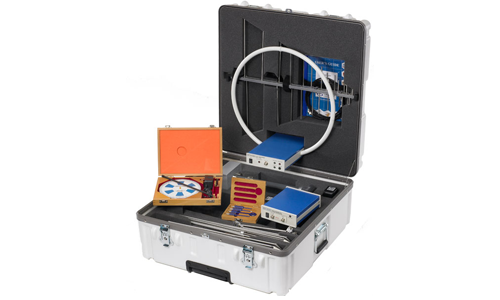

ANK-910L 9 kHz - 1 GHz
  • Custom Carrying Case
  • AL-130 Active Loop Antenna
  • ABF-900 Biconical Antenna (30 to 300 MHz)
  • ALC-100 Log Periodic ( 300 to 1 GHz)
  • PAM-103 Preamplifier (1 to 1000 MHz)
  • PS-500 Near Field Probes
  • CGO-501 or CGO- 505 Comb Generator,
  • Cables

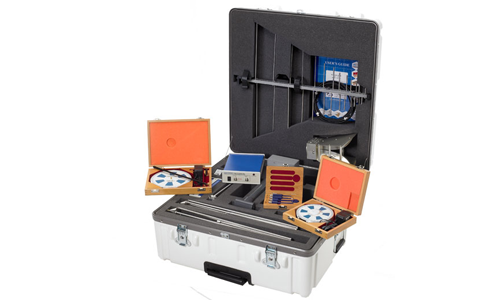

ANK-318 30 MHz - 18 GHz
  • Custom Carrying Case
  • ABF-900 Biconical Antenna (30 to 300 MHz)
  • ALC-100 Log Periodic ( 300 to 1 GHz)
  • AH-118 Horn Antenna ( 1 to 18 GHz)
  • PAM-103 Preamplifier (1-1000 MHz, 32 dB gain)
  • PAM-118A (1-18 GHz, 40 dB gain)
  • PS-500 Near Field Probes
  • CGO-520 Comb Generator
  • CGO-5100A Comb Generator,
  • Cables

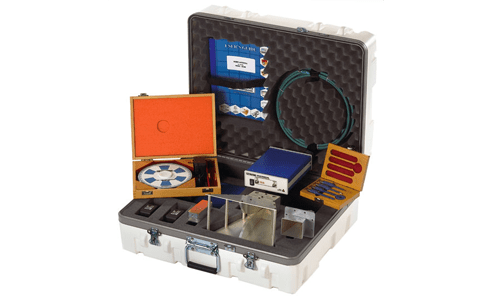

ANK-140 1 GHz - 40 GHz
  • Custom Carrying Case
  • AH-118 Horn Antenna (1 to 18 GHz)
  • AH-840 (18 to 40 GHz)
  • PAM-118A Preamplifier (1 to 18 GHz,)
  • PAM-840 Preamplifier(18 to 40 GHz)
  • PS-500 Near Field Probes
  • CGO-51000 Comb Generator,
  • Cables
