CDN-C50E

150 kHz - 230 MHz 50 Ohm Coaxial Cables

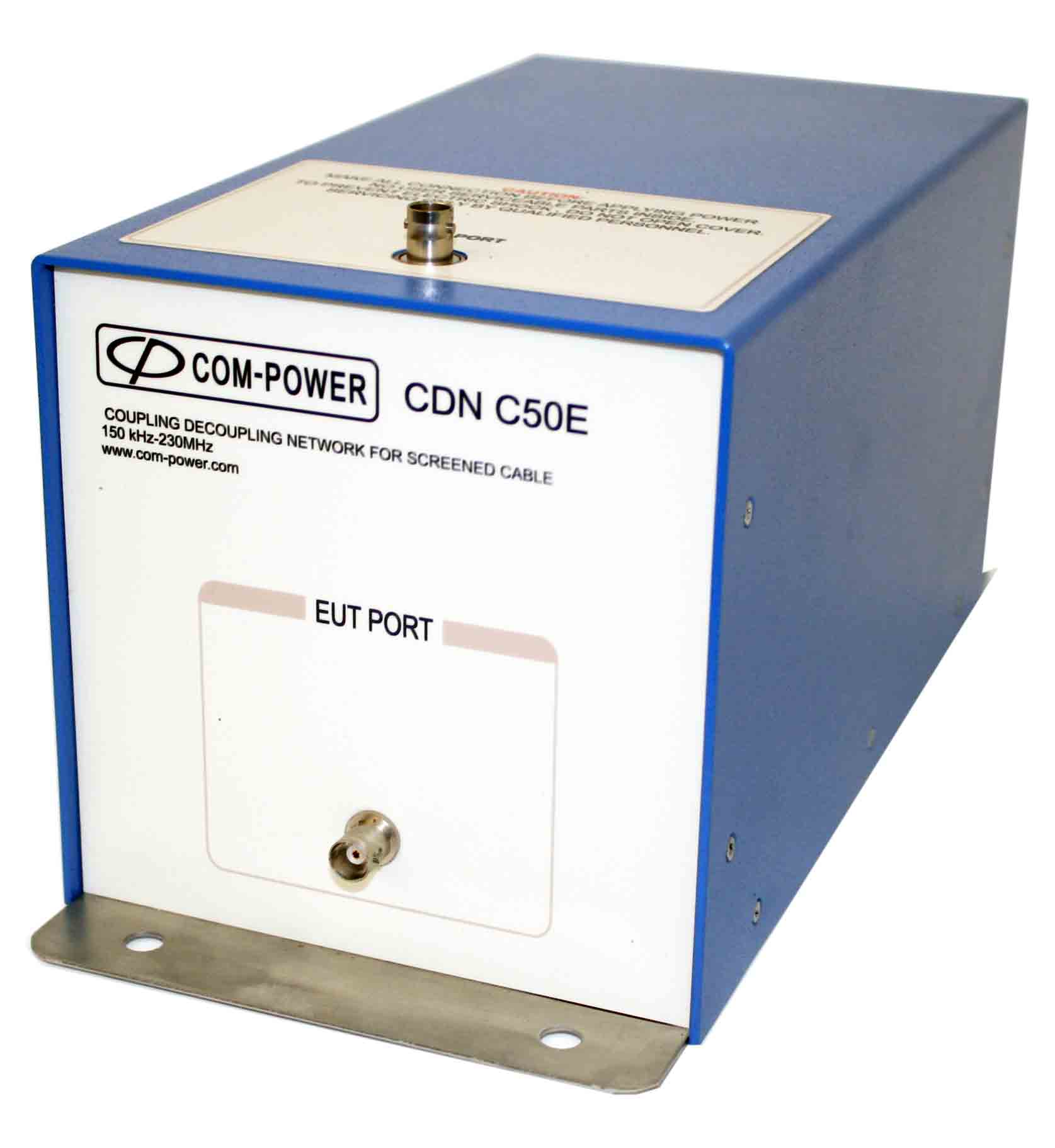

CDN-C50E Coupling Decoupling Network

Description

Com-Power CDN-C50E is one of the series of Coupling/Decoupling Networks designed to comply for testing product for conducted immunity per IEC/EN 61000-4-6 and CISPR 16-1-2. The CDN-C50E is designed for testing products that uses 50 Ohm coaxial cables for data communication. It has 50 Ohm BNC connectors for both EUT and AE power connection. The CDN-C50E can handle up to 1 Amp of current. The RF disturbance signal coupling port is female BNC. It can handle up to 40V of RF Input Voltage. The bottom surface of the CDN is not painted for easy and effective grounding. This is a pre-packaged solution that includes an ACS series power amplifier and all accessories required for the test. Com-Power CDNs are individually calibrated. All Com-Power CDNs can be purchased separately or as part of the CIS series conducted immunity test system.

  • Frequency Range 150 MHz to 230 MHz
  • Designed for IEC / EN 61000-4-6
  • 50 Ohm Coaxial Cables
  • Individual calibration included
  • Three Year Warranty
  • Product Name: Coupling Decoupling Network (CDN)
  • Compliant Test Standards: IEC / EN 61000-4-6
  • Application: 50 Ohm Coaxial Cables
  • Frequency Range: 150 kHz to 230 MHz
  • RF Input Voltage: 40 V (Max)
  • RF Input Connector: 50 Ω BNC (Female)
  • Voltage Rating: 310 V AC / 440 V DC (Line to Ground)
  • Current Rating: 1 Amp (Max)
  • AE and EUT Connections: 50 Ohm Female BNC
  • Common Mode Impedance:
  • 150 kHz - 26 MHz: 150Ω ± 20Ω
  • 26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω
  • 80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω
  • Voltage Division Factor: 9.5 dB +3 / -1
  • Decoupling of Common Mode Disturbance: ≥ 40dB (EUT/AE)
  • Dimensions: 6 x 6 x 13 inches or 15.2 x 15.2 x 33 cm
  • Weight: 5 lbs. or 2.3 kg
  • Accessories Available from Com-Power for setting test levels and running the test:
  • ADA-C50/C75 shorting adapters
  • ADA-515-2 150 Ω to 50 Ω adapters
  • TEP-050 50 Ω Terminator
  • ATTN-6-100W Power Attenuator
  • DCU-300-100W Directional Coupler
  • ASC series Power Amplifiers
