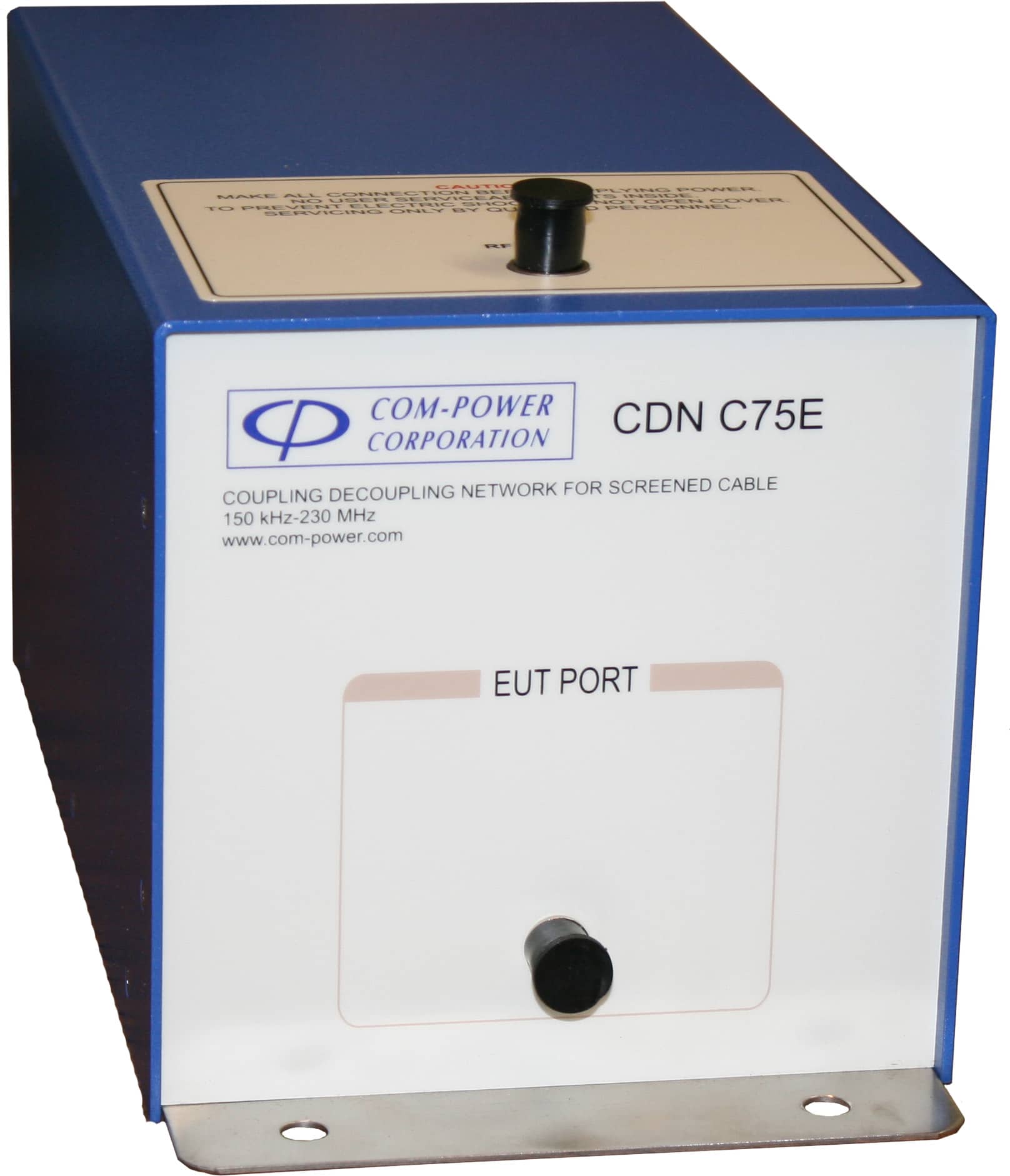

CDN-C75E

150 kHz - 230 MHz 75 Ohm Coaxial Cables

CDN-C75E

Description

The CDN-C75E is designed for testing products that uses 75 Ohm coaxial cables for data communication. It has 75 Ohm BNC connectors for both EUT and AE power connection. The Coupling Decoupling Network CDN-C75E can handle up to 1 Amp of current. The RF disturbance signal coupling port is female BNC. It can handle up to 40V of RF Input Voltage. The bottom surface of the CDN is not painted for easy and effective grounding. Com-Power CDN-C75E is a part of the series of Coupling/Decoupling Networks designed for testing product for conducted immunity per IEC/EN 61000-4-6. The Com-Power CDN-C75E fully complies with the requirements contained in the CISPR 16-1-2. All Com-Power CDNs are individually calibrated and can be purchased separately or as part of the CIS series conducted immunity test system. This is a pre-packaged solution for the EMC testing that includes all required accessories and ACS series power amplifier.

  • Frequency Range 150 kHz to 230 MHz
  • Designed for IEC / EN 61000-4-6
  • 75 Ohm Coaxial Cables
  • Individual calibration included
  • Three Year Warranty
  • Product Name: Coupling Decoupling Network (CDN)
  • Compliant Test Standards: IEC / EN 61000-4-6
  • Application: 75 Ohm Coaxial Cables
  • Frequency Range: 150 kHz to 230 MHz
  • RF Input Voltage: 40 V (Max)
  • RF Input Connector: 50 Ω BNC (Female)
  • Voltage Rating: 310 V AC / 440 V DC (Line to Ground)
  • Current Rating: 1 Amp (Max)
  • AE and EUT Connections: 75 Ohm Female BNC
  • Common Mode Impedance:
  • 150 kHz - 26 MHz: 150Ω ± 20Ω
  • 26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω
  • 80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω
  • Voltage Division Factor: 9.5 dB +3 / -1
  • Decoupling of Common Mode Disturbance: ≥ 40dB (EUT/AE)
  • Dimensions: 6 x 6 x 13 inches or 15.2 x 15.2 x 33 cm
  • Weight: 5 lbs. or 2.3 kg
  • Accessories Available from Com-Power for setting test levels and running the test:
  • ADA-C50/C75 shorting adapters
  • ADA-515-2 150 Ω to 50 Ω adapters
  • TEP-050 50 Ω Terminator
  • ATTN-6-100W Power Attenuator
  • DCU-300-100W Directional Coupler
  • ASC series Power Amplifiers
