Spectrum Analyzer

SPA Series

9 kHz - 7.5 GHz

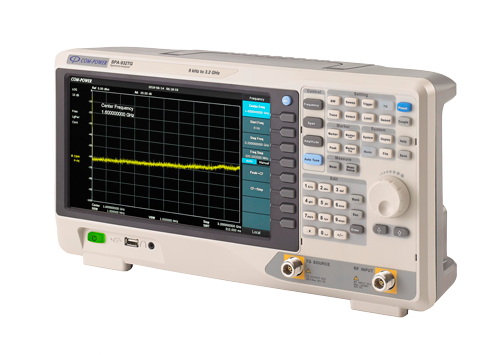

SPA-800 spectrum analyzer

Description

The SPA-series high performance, low cost, easy to use, portable spectrum analyzers are ideal for a pre-compliance laboratory. All three models feature a wide frequency range and low noise floor to increase system sensitivity and system to noise ratio. An advanced, easy to use interface makes your work simple by putting the features you need at your fingertips.

Value-priced without compromising on features, our EMI testing spectrum analyzers offer you the greatest performance to price ratio in the market. The measurement accuracy of these instruments make them ideal for preliminary radiated and conducted EMI testing. A user-oriented interface allows for easy operation of complex functions. A high-resolution WVGA display provides high quality images. Traces are drawn in different colors, allowing recognition of small disparities at a glance. The SPA series connectivity options include LAN(LXI) and USB.


Com-Power's SPA series spectrum analyzers for EMC testing includes three models to fit your budget:

  • SPA-815TGE: The SPA-815TGE is a highly precise EMC testing spectrum analyzer with preamplifier, 1.5 GHz tracking generator and a frequency range of 9 kHz to 1.5 GHz. It boasts a low, -135 dBm Displayed Average Noise Level (DANL) [RBW=100 Hz] and -80 dBc/Hz @ 10 kHz Offset Phase Noise. An 8-inch WVGA display makes viewing testing results and locating noise easy. It has a factory-installed EMI filter [for -6 dB measurement BW] and quasi-peak detector.

  • SPA-1030TGE: The SPA-1030TGE is a highly precise EMI testing spectrum analyzer with built-in preamplifier, 3 GHz tracking generator and a frequency range of 9 kHz to 3 GHz. It boasts a low, -138 dBm Displayed Average Noise Level (DANL) [RBW=100 Hz] and -80 dBc/Hz @ 10 kHz Offset Phase Noise. Its lightweight design and optional battery make this unit highly portable, while a larger (8.5) screen displays test results clearly and accurately. It has a factory-installed EMI filter [for -6 dB measurement BW] and quasi-peak detector.

  • SPA-875TGE: The SPA-875TGE is a highly precise EMC testing spectrum analyzer with preamplifier, 7.5 GHz tracking generator and a frequency range of 9 kHz to 7.5 GHz. It boasts a low, -152 dBm Displayed Average Noise Level (DANL) [RBW=10 Hz] and -98 dBc/Hz @ 10 kHz Offset Phase Noise. The SPA-875TGE is highly advanced and the most precise of our EMC testing spectrum analyzers. It has a factory-installed EMI filter [for -6 dB measurement BW] and quasi-peak detector.

  • Not certain which product or configuration is the best EMI spectrum analysis device for your needs? Contact us by phone or email for assistance.

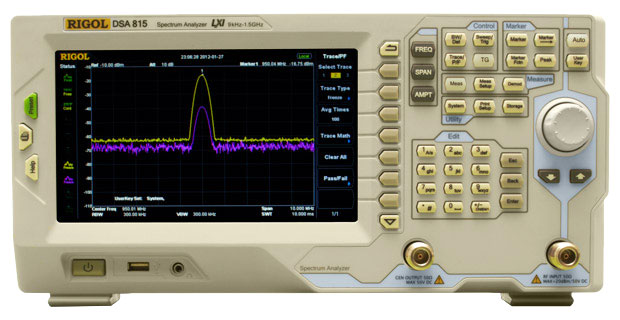

SPA-815TGE

  • All-Digital IF Technology
  • 9 kHz to 1.5 GHz Frequency Range
  • Up to -135 dBm Displayed Average Noise Level (DANL)
  • -80 dBc/Hz @10 kHz offset Phase Noise
  • Total Amplitude Uncertainty <1.5 dB
  • 100 Hz Minimum Resolution Bandwidth (RBW)
  • 1.5GHz Tracking Generator (DSA815-TG)
  • Advanced Measurement functions (Option)
  • EMI Filter & Quasi-Peak Detector Kit (optional)
  • VSWR Measurement Kit (optional)
  • Complete Connectivity: LAN,USB host,USB device,GPIB (option)
  • 8 Inch WVGA (800x480) Display
  • Compact Size,Light weight design
SPA-1030TGE
  • All-Digital All Digital IF Technology
  • 9 kHz to 3 GHz Frequency Range
  • Up to -138 dBm Displayed Average Noise Level (DANL)
  • -80 dBc/Hz @10 kHz offset Phase Noise
  • <1.5dB Total Amplitude Accuracy
  • 100 Hz Minimum Resolution Bandwidth (RBW)
  • Standard EMI filter and Quasi-peak detector function
  • 3 GHz Tracking Generator (DSA1030-TG)
  • Optional Advanced Measurement functions
  • Complete Connectivity: LAN,USB host,USB device,VGA ,GPIB (option)
  • Battery Option
  • 8.5 Inch WVGA (800x480) Display
  • Compact Size,Light weight design
SPA-875TGE
  • All-Digital IF Technology
  • 9 kHz to 7.5 GHz Frequency Range
  • Min. -161 dBm Displayed Average Noise Level (DANL)
  • Min. -98 dBc/Hz @10 kHz offset Phase Noise
  • Level Measurement Uncertainty <0.8 dB (0.3dB typ.)
  • Up to 10 Hz Minimum Resolution Bandwidth (RBW)
  • 7.5GHz Tracking Generator (DSA875-TG)
  • Advanced Measurement functions (Option)
  • EMI Filter & Quasi-Peak Detector Kit (optional)
  • VSWR Measurement Kit (optional)
  • Complete Connectivity: LAN,USB host,USB device,GPIB (option)
  • 8 Inch WVGA (800x480) Display
  • Compact Size,Light weight design
