FM High Power Log Periodic Antenna

Model: ALFM-80120

88 - 108 MHz

Power Log Periodic Antenna

88 - 108 MHz Log Periodic FM Antenna

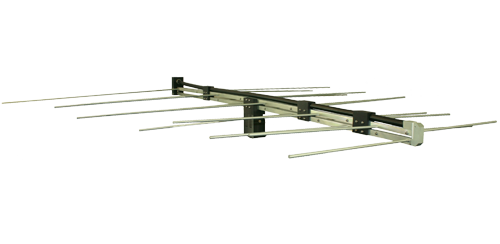

The ALFM-80120 is a linearly polarized Log Periodic Dipole Array (LPDA) Antenna, operating over the frequency range of 80 MHz to 120 MHz. The ALFM-80120 Power Log Periodic Antenna is part of our custom designed antennas specifically geared for use as a high power transmitting antenna to establish radiated RF fields for immunity tests, and is capable of handling power levels up to 2500 Watts (CW).

  • Frequency Range 88 MHz to 108 MHz ( Usable from 80 MHZ to 120 MHz )
  • Transmit & Receive Capabilities emissions/immunity applications
  • Individual Calibration Included per SAE ARP 958 with NIST traceability
  • Three-year Standard Warranty
  • Product Name: Power Log Periodic Antenna
  • Frequency Range: 88 MHz to 108 MHz (Usable from 80 MHz to 120 MHz)
  • Polarization: Linear
  • Nominal Impedance: 50 Ohms
  • Power Handling: 2500 Watts (continuous)
  • Connector: 7-16 DIN (female)
  • Antenna Factor: 6 to 8 [dB(m-1)]
  • Isotropic Gain: 1.5 to 5 dBi (@ 1 mtr)
  • VSWR:
      <1.3 (80 to 88 MHz)
      <1.25 (88 to 108 MHz)
      <1.45 (108 MHz to 120 MHz)
  • Dimensions (H x W x D): 7.5 x 81.9 x 82.7 Inches [19 x 208 x 210 cm]
  • Weight: 13.5 lbs. [6.1 kg]
  • Antenna Factors

    antenna factor frequency chart for log periodic fm antenna 80 mhz to 120 mhz

    Isotropic Gain

    isotropic gain frequency chart for log periodic antenna 88 mhz to 108 mhz

    Voltage Standing Wave Ratio (VSWR)

    voltage standing wave ratio chart for log periodic fm antenna 88 mhz to 108 mhz

    Return Loss

    return loss chart for log periodic fm antenna 80 mhz to 120 mhz

    Typical Field Strength @ 1 mtrs

    typical field strength at 1 meter chart for log periodic fm antenna 88 mhz to 108 mhz

    Typical Forward Power Levels

    forward power levels chart for log periodic fm antenna 80 mhz to 120 mhz
