Antenna Kit for DO-160 and MIL-STD

ANK-910M

9 kHz to 1 GHz

EMC Antenna Kit ANK-910M
ANK-910M

Radiated Emission for FCC, CISPR, DO-160, MIL STD-461

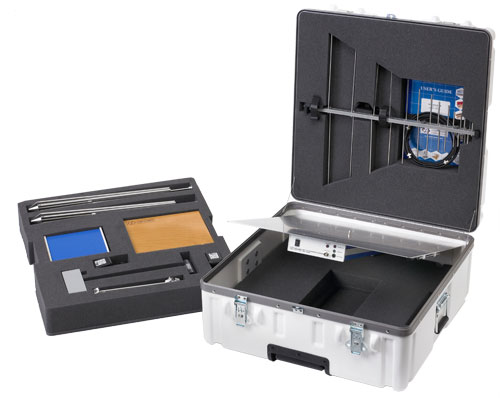

Com-Power ANK-910M antenna kit ALso know as the E-Field Emissions Testing suitable for offsite EMC testing from 9 kHz to 1 GHz. The antenna kit is supplied with a carrying case with a specific storage compartment for each antenna. Antenna tripod model AT-120 with a separate carrying case (ATC-120) is available as an option.

Items included:

1. AM-741R Active Monopole Antenna
2. ABF-900 Collapsible Biconical Antenna 25 MHz-300 MHz
3. ALC-100 Compact Log Periodic Antenna 300 MHz-1 GHz
4. PAM-103 33 dB Gain Preamplifier 1 MHz-1 GHz
5. CGO-501 or CGO-505 Comb Generator 1 or 5 MHz Step
6. PS-500 Near Field Probes 400 Hz-5 GHz
7. Cables N and BNC type

  • Broadband Antennas
  • High Gain Preamplifier
  • Near Field Probe Kit
  • Comb Generator
  • Carrying Case
  • 3-year Warranty
  • Frequency Range: 9 kHz to 1 GHz

    Items Included:
    AM-741R Active Monopole Antenna
    ABF-900 Collapsible Biconical Antenna 25 MHz-300 MHz
    ALC-100 Compact Log Periodic Antenna 300 MHz-1 GHz
    PAM-103 33 dB Gain Preamplifier 1 MHz-1 GHz
    CGO-501 or CGO-505 Comb Generator 1 or 5 MHz Step
    PS-500 Near Field Probes 400 Hz-5 GHz
    AMC-910 Cable Kit
    Calibration Data

    Weight: 38 lbs / 17.2 Kg

    Dimensions: 24x19x12 Inches / 60.9x48.2x30.5 cm

    Contact us for more information
