225 Watts Power Amplifier: DC -300 KHz

Model: ARI-101A

DC to 300 kHz

DC to 300 khz power amplifier 225 watts

DC to 300 kHz Power Amplifier 225 Watts

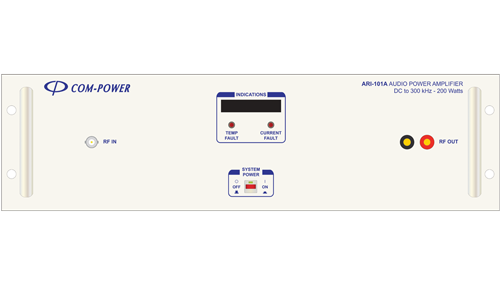

The Com-Power ARI-101A Audio Power Amplifier is specifically geared for conducted and radiated susceptibility testing such as that described in MIL-STD-461 (CS101 & RS101) and RTCA DO-160 (Section 18), in addition to other standards.
The ARI-101A operates from DC to 300 kHz with an output power up to 200 Watts (into 2 ohms) and 225 Watts (into 1 ohm).

  • Frequency Range: DC to 300 kHz
  • 200 Watts Power into 2 ohms - 225 Watts Power into 1 ohm
  • Protection Circuitry from Input Overload, Over-Temperature & Over-Current
  • Three-Year Warranty
  • General

  • Products Description: Audio Power Amplifier
  • Application: Audio Frequency Susceptibility Testing
  • Standards: MIL-STD-461, RTCA DO-160, etc.
  • Frequency Range: DC to 300 kHz
  • Output Power: 200 Watts (into 2Ω), 225 Watts (into 1Ω)
  • Input Signal: 0 dBm (maximum)
  • Input Impedance: 50 ohms (nominal)
  • Output Impedance: 1 ohm, 2 ohms
  • Output Voltage: >10 Vrms (DC to 150 kHz with 0 dBm input)
  • Distortion: ≤0.3%
  • DC Drift: < ±1.5 mV (after 30 minutes of operation)
  • Phase Response: ±5 degrees
  • Residual Noise: 300 µV
  • Signal-to-Noise Ratio: -100 dB
  • Gain Linearity: 0.15%
  • Common Mode Rejection: -60 dB
  • Electrical
  • AC Input Power: 115/230 Volts AC, 50/60 Hz
  • Input/Output Connectors
  • Input Connector: BNC (female)
  • Output Connectors: (2) x 4 mm Banana Jack Binding Posts
  • AC Power Input Connector: IEC C13 Receptacle
  • Eviromental
  • Operating Temperature: 40 F to 104 F (5 C to 40 C)
  • Cooling: Forced Air
  • Mechanical
  • Dimensions(HxWxD): 5.2 x 19 x 15.7 (131 mm x 482 mm x 398 mm)
  • Cooling: Forced Air
  • amplifier power into 1 ohm load chart for DC to 300 khz power amplifier 225 watts
    amplifier power into 2 ohm load chart for dc to 300 kHz power amplifier 225 watts
