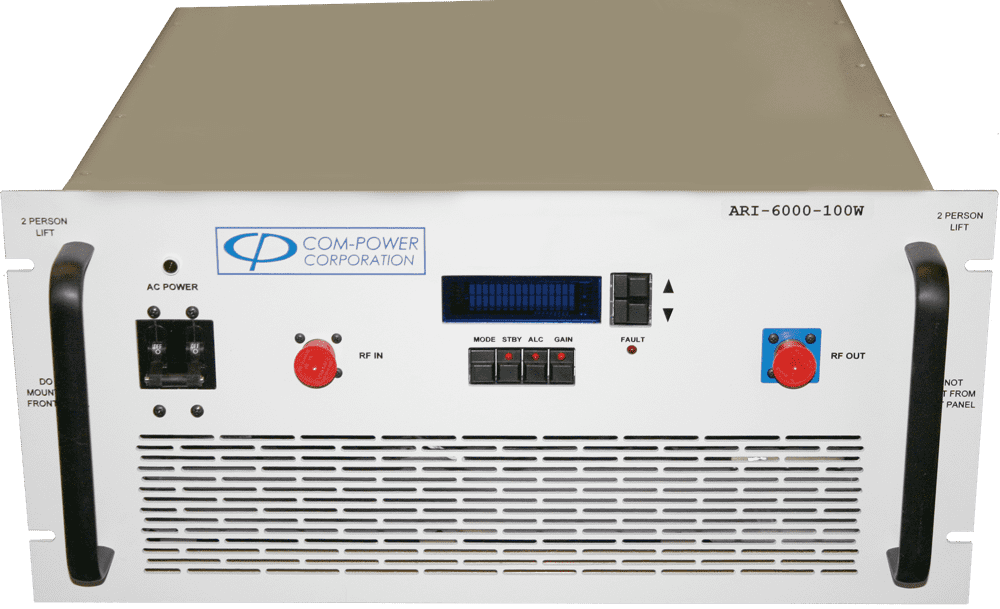

100 Watts Power Amplifier for Radiated Susceptibility to 6 GHz

Model: ARI-6000-100W

700 MHz to 6 GHz

6 ghz power amplifier 100 watts

6 GHz Power Amplifier 100 Watts

The ARI-6000-100W is part of Com-Power's series of broadband RF amplifiers; diverse in application, yet specifically geared for use in EMC immunity testing applications. The ARI-6000-100W model was engineered to provide high gain, with excellent efficiency and reliability, at an unbeatable price. It has 53 dB gain minimum, 100 Watt typical power output.

  • 700 MHz to 6 GHz
  • 100 Watts
  • 3 year warranty
  • Frequency Range: 0.7 6.0 GHz
  • Saturated Output Power: 100 Watts Typical
  • P1dB Output Power:60 Watts Minimum
  • Small Signal Gain: +53 dB Minimum
  • Power Flatness (Pin 0 dBm): ±4.0 dB Maximum
  • IP3: +54 dBm Typical
  • Input VSWR: 2:1 max
  • Harmonics: -20 dBc typical @ P1dB
  • Spurious Signals < -60 dBc typical @ P1dB
  • Input/Output Impedance: 50 Ohms Nominal
  • AC Input Power: 3,000 Watts Maximum
  • AC Input: 100 240 VAC, single phase
  • RF Input: 0 dBm nominal +3 dBm max without damage
  • RF Input Signal Format: CW/AM/FM/PM/Pulse
  • Class of Operation: A
  • Dimensions: 19 x 8.75 x 24
  • Weight: 95 Lbs.
  • Connectors: Type-N
  • Grounding: Chassis
  • Cooling: Internal Forced Air
  • Operating Temperature: 0° C to +50° C
  • Operating Humidity: 95% Non-condensing
  • Operating Altitude: Up to 10,000 Above Sea Level
  • Shock and Vibration: Normal Truck Transport
