Collapsible Biconical Antenna

Model ABF-900A

25 MHz - 300 MHz

Collpasible Biconical Antenna

Flexible Biconical Antenna

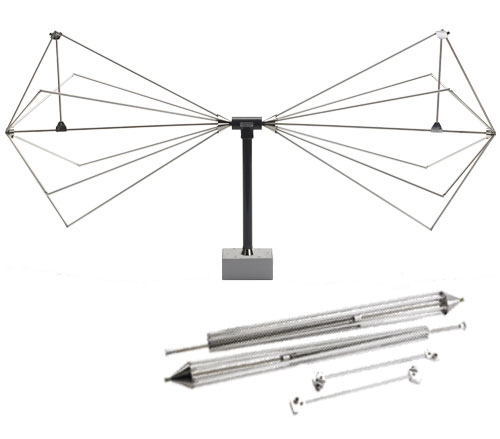

Model ABF-900A is used for emissions and immunity testing to meet various EMC standards. It has frequency range of 25 - 300 MHz. It has flexible and foldable conical elements for easy storage and transport.

  • Frequency range: 25 MHz to 300 MHz
  • Collapsible antenna elements
  • Part of ANK series antenna kits
  • Individual Calibration
  • Three year warrant
  • Frequency Range: 25 MHz-300 MHz
  • Continuous input power: (CW): 50 Watts
  • Polarization: Linear
  • Impedance: 50 N)
  • Connector: N (f)
  • Width: 52.75 in / 134 cm
  • Length: 28.75 in / 73 cm
  • Weight: 10 lbs. (4.5 kg) max.
  • Antenna Factors

    antenna factor frequency chart for collapsible biconical antenna 25 mhz to 300 mhz

    Isotropic Gain

    isotropic gain frequency chart for collapsible biconical antenna 25 mhz to 300 mhz

    Voltage Standing Wave Ratio (VSWR

    vswr frequency chart for collapsible biconical antenna 25 mhz to 300 mhz

    Return Loss

    return loss frequency chart for collapsible biconical antenna 25 mhz to 300 mhz

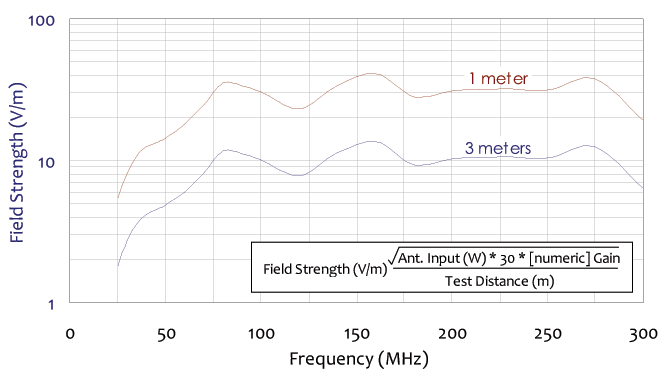

    Typical Field Strength with 50W Input Power

    typical field strength with 50 watt input power chart for collapsible biconical antenna 25 mhz to 300 mhz

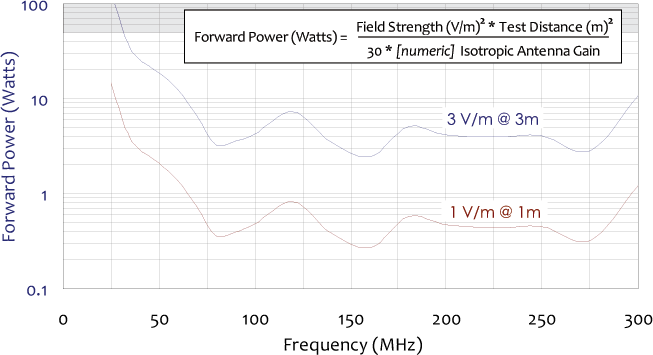

    Typical Forward Power Levels

    forward power levels chart for collapsible biconical antenna 25 mhz to 300 mhz
