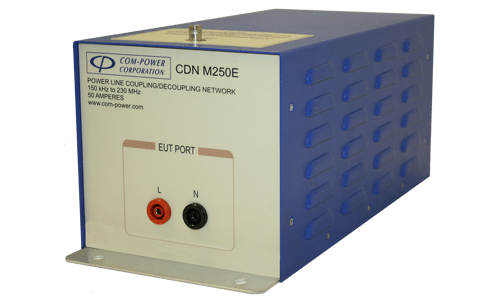

50 Amp CDN for Two Conductors Powerline

Model: CDN-M250E

150 kHz - 230 MHz Unscreened Power Supply Line

CDN-M225E

50 Amps CDN for Power Lines

Com-Power CDN-M250E Coupling/Decoupling Network is designed specifically for conducted immunity testing (per IEC 61000-4-6) of products using two conductor power cable. The disturbance signals are coupled to each conductor individually. The CDN-M250E has a current rating of 50 Amps. Com-Power CDNs are available for power supplies from 1 to 5 conductors. This CDNs cover the frequency range of 150 kHz - 230 MHz.

  • Frequency range: 150 MHz to 230 MHz
  • Meets CISPR 16-1-2 and 61000-4-6 requirements
  • Current handling up to 50 Amps AC
  • Individual calibration
  • Three Year Warranty
  • Product Name: Coupling Decoupling Network (CDN)
  • Compliant Test Standards: IEC -61000-4-6, CISPR 16-1-2
  • Frequency Range: 150 kHz to 230 MHz
  • I/O rating for EUT/AE Ports: 250 VAC, 350 VDC
  • Max Input Voltage: 40 V
  • Application: Two wire power cables
  • Current rating: 50 Amps (AC), 35 Amps (DC)
  • RF Input Connector: 50 Ω BNC (female)
  • I/O Connection: 5.2 mm banana socket with shrouded Sheath
  • Common mode impedance:
    • 150 kHz - 24 MHz: 15Ω ±20Ω
    • 24 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω
    • 80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω
  • Voltage Division Factor: 9.5 dB +3 / -1 dB
  • Dimensions: 7 x 7 x 16 ¾ inches 17.7 x 17.7 x 42.5 cm
  • Weight: 7 lbs. / 3.1 kg
  • Accessories Available from Com-Power for setting test levels and running the test:
    • ADA-M250E shorting adapters
    • ADA-515-2 150 Ω to 50 Ω adapter
    • TEP-050 50 Ω Terminator
    • 1, 3, 6, 10, 20, 30 dB Power Attenuators
    • DCD-1000-100W Directional Coupler
    • ASC series Power Amplifier

    impedance chart for coupling decoupling two conductor powerline network 150 khz to 230 mhzphase chart for 50 amp cdn for two conductors 150 khz to 230 mhz
