CDN for 4 line Power at 50 Amps

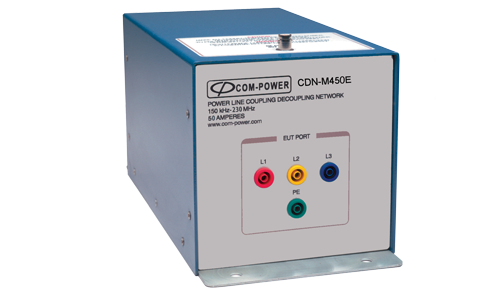

50 Amps CDN for Power Lines Coupling/Decoupling Network CDN-M450E is designed specially for conducted immunity testing per CISPR 16-1-2 and IEC 61000-4-6 of products using four conductor power cable. The noisy signals are coupled to each conductor individually. This Com-Power's CDN-M450E has a current rating of 50 Amps. This Coupling Decoupling Network has the frequency range of 150 kHz - 230 MHz.
- Frequency range: 150 kHz to 230 MHz
- Meets CISPR 16-1-2 and 61000-4-6 requirements
- Current handling up to 50 Amps AC
- Individual calibration
- Three Year Warranty
- Product Name: Coupling Decoupling Network (CDN)
- Compliant Test Standards: IEC / EN 61000-4-6, CISPR 16-1-2/li>
- Application: Four conductor power cable
- Frequency Range: 150 kHz to 230 MHz
- RF Input Voltage: 40 V (Max)
- RF Input Connector: 50 Ω BNC (Female)
- Voltage Rating: 250 VAC / 350 VDC (Line to Ground)
- Current Rating: 50 Amps AC / 35 Amps DC (Max)
- AE and EUT Connections: 5.2 mm shrouded banana sockets
- Common Mode Impedance
- 150 kHz - 24 MHz: 150Ω ± 20Ω
- 24 MHz - 80 MHz: 150Ω + 60Ω / -45Ω
- 80 MHz - 230 MHz: 150Ω + 60Ω / -60Ω
- Voltage Division Factor: 9.5 dB +3 / -0.5
- Decoupling of Common Mode Disturbance: ≥40dB (EUT/AE)
- Dimensions: 7 x 7 x 16
