High Power Horn Antenna

Model: AH-8055

800 MHz - 5.5 GHz

Double Ridge Horn Antenna

High Power Horn Antenna

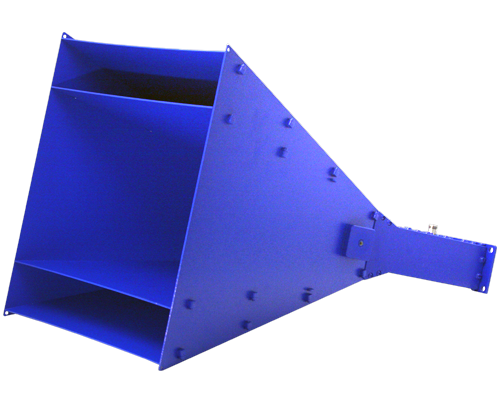

Model AH-8055 broadband horn antenna for EMC testing over the frequency range 800 MHz to 5.5 GHz. It is primarily intended for radiated immunity testing. It has excellent Gain, VSWR and high power handling capability.

  • Frequency Range: 800 MHz to 5.5 GHz
  • High Power Handling
  • Transmit or receive capability
  • Three year warranty
  • Frequency Range: 800 MHz to 5.5 GHz
  • Power: 450 Watts CW
  • VSWR (Typical): 2.8:1 Max / 1.7:1 Average
  • Gain: 10.6 dBi Min, 23 dBi Max,19.7 dBi Average
  • Polarization: Linear
  • Impedance: 50 Ω
  • Connector: N (f)
  • Weight: 19.5 lbs. / 8.8 kg
  • Size: 17 x17 x 27.5 inches, or 43.1 x 43.1 x 69.8 cm
  • Mounting: 1/4 x12 threaded hole
  • Antenna Factors/Isotropic Gain

    Antenna Factors / Isotropic Gain

    -3 dB [Half-Power] Beamwidth

    -3 dB [Half-Power] Beamwidth

    VSWR/Return

    VSWR/Return

    Impedance/Phase

    Impedance/Phase

    Field Strength with 450W Input Power

    Field Strength with 450W Input Power

    Forward Power Levels

    Forward Power Levels
