Double Ridge Active Horn Antenna

Model: AHA-840

18 - 40 GHz

Horn Antenna with Built in Preamplifier

Active Horn Model AHA-840

is part of our extensive line of EMC test antennas. The AHA-840 smartly incorporates a with a precision waveguide to coaxial adapter (meticulously tuned as a set for optimum VSWR performance and impedance matching) and a broadband, high-gain, low noise preamplifier; integrated into a single, well-built, durable, custom designed assembly which facilitates the flexibility to be configured for almost any application.

  • Broadband - 18 GHz to 40 GHz
  • Built-in Preamplifier Increases Sensitivity
  • Low Antenna Factor
  • Emissions & Immunity Capability
  • Individual Calibration Included
  • FCC, CISPR, EN, ETSI, FAA, Mil-Std, Automotive etc.
  • Frequency Range: 18 GHz to 40 GHz
  • Polarization: Linear
  • VSWR - Antenna Port: 1.4:1 average (see graph below)
  • P(out) @ 1 dB Compression: >10 dBm
  • Noise Figure: < 6 dB
  • Active Antenna Gain: > 55 dBi
  • Preamplifier Gain: 37 to 43 dB (see graph below)
  • Dimensions: 10.2” x 8.5” x 5.9” (26 cm x 21.7 cm x 15 cm)
  • Weight: 1.5 lbs (0.68 kg)
  • Connector Types: 50Ω [2.92mm] “K type” female (for all RF connections)

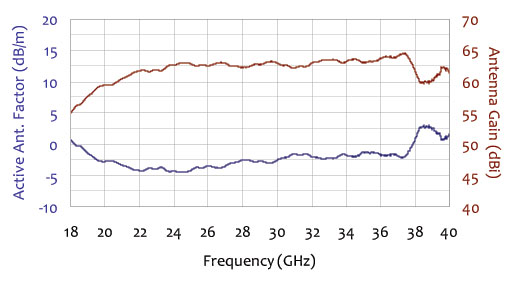

  • Active Antenna Factors / Gain

    active antenna factors and gain chart for double ridge active horn antenna 18 ghz to 40 ghz

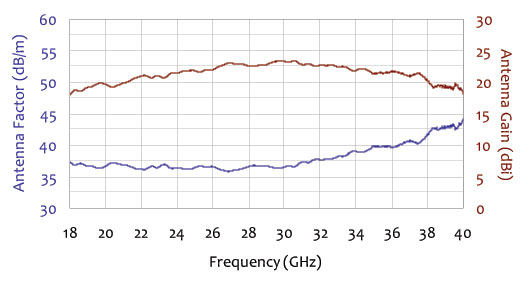

    Antenna Factors / Gain

    (not including preamplifier gain)
    antenna factors and gain chart for double ridge active horn antenna 18 ghz to 40 ghz

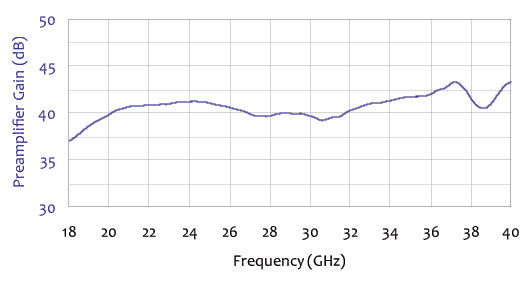

    Preamplifier Gain

    preamplifier gain frequency chart for double ridge active horn antenna 18 ghz to 40 ghz

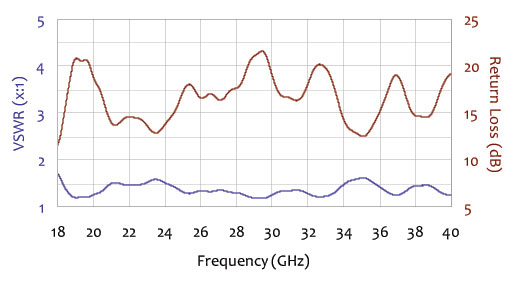

    VSWR / Return Loss

    vswr and return loss chart for double ridge active horn antenna 18 ghz to 40 ghz

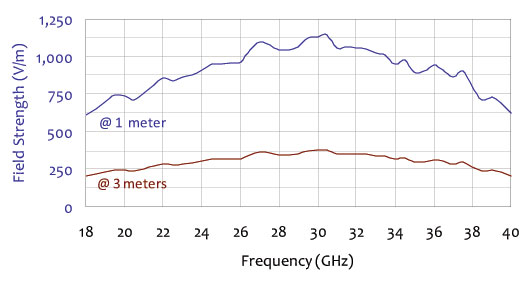

    Field Strength - 200W input power

    (directly to waveguide input - waveguide to coaxial adapter removed)
    200 watt input power field strength chart for double ridge active horn antenna 18 ghz to 40 ghz

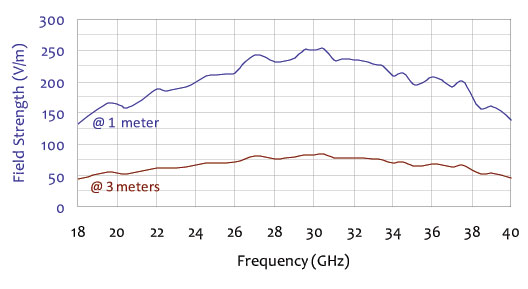

    Field Strength - 10W input power

    (to 2.92mm input of waveguide to coaxial adapter)
    10 watt input power field strength chart for double ridge active horn antenna 18 ghz to 40 ghz
