Log Periodic Antenna

AL-100

300 MHz to 1 GHz

Log Periodic Antenna

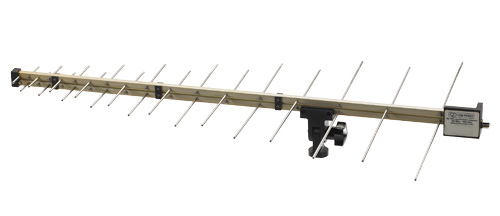

Log Periodic Antenna Model AL-100

Com-Power Model AL-100 Log Periodic Antenna is lightweight and rugged. This Log Periodic Antenna can be utilized for EMI radiated emissions or immunity testing to meet the various test standards. Our Log Periodic Antenna has a low VSWR and can be used inside an anechoic chamber or outdoors in an open area test site. This Log Periodic Antenna operates in the frequency range of 300 MHz to 1 GHz.

  • Frequency Range: 300 MHz to 1 GHz (useable from 200 MHz)
  • Transmit & Receive Capabilities emissions/immunity applications
  • Individual Calibration Included per ANSI C63.5 with NIST traceability
  • Three-year Standard Warranty
  • Frequency Range: 300 MHz to 1 GHz
  • Polarization: Linear
  • Nominal Impedance: 50 Ohm
  • Power Handling: 50 Watts Continuous
  • Connector: N-type (female)
  • Specifications: FCC, CISPR, EN, ETSI, FAA, Mil-Std, Automotive, etc.
  • Dimensions (L x W x H): 39 x 21.5 x 5.125 [99 x 54.6 x 13 cm]
  • Weight: 3 lbs. [1.36 kg]
  • antenna factor isotropic gain chart for standard log periodic antenna 300 mhz to 1 ghz field strength chart for standard log periodic antenna 200 mhz to 1 ghz -3 db beam width frequency chart forward power chart return loss with 5 db impedance matching pad chart for standard log periodic antenna 300 mhz to 1 ghz return loss frequency chart for standard log periodic antenna 300 mhz to 1 ghz vswr frequency chart for log periodic antenna 300 mhz to 1 ghz vswr frequency chart for standard log periodic antenna 300 mgz to 1 ghz
