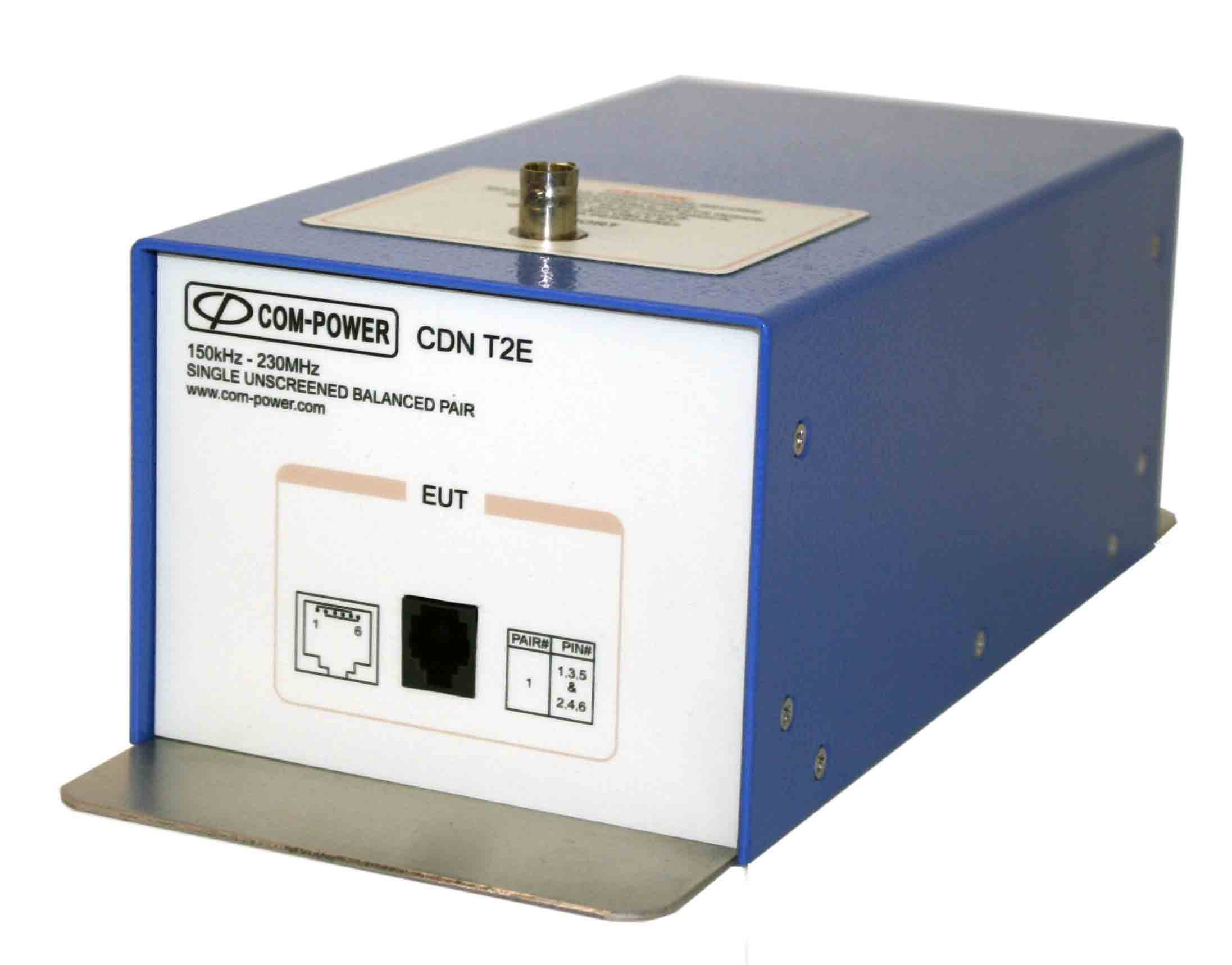

CDN for One Balanced Unscreened Pair

Model: CDN-T2E

150 kHz - 230 MHz Unscreened Balanced Pair

CDN-T2E

CDN-T2E is one of the Coupling/Decoupling Networks

for testing products that uses one unscreened, balanced pair for communication such as Ethernet for conducted immunity per IEC/EN 61000-4-6. It has a RJ11 connectors for both EUT and AE connection. The CDN-T2E can handle up to 2 Amps of current. The RF disturbance signal coupling port is female BNC. It can handle up to 40V of RF Input Voltage. The bottom surface of the CDN is not painted for easy and effective grounding. All Com-Power CDNs are individually calibrated. The Com-Power CDN-T2E fully complies with the requirements contained in the IEC 61000-4-6 and CISPR 16-1-2. All Com-Power CDNs can be purchased separately or as part of the CIS series conducted immunity test system (a pre-packaged solution that includes an ACS series power amplifier and all accessories).

  • Frequency Range 150 MHz to 230 MHz
  • Designed for IEC / EN 61000-4-6
  • One unscreened, balanced pair
  • Individual calibration included
  • Three Year Warranty
  • Product Name: Coupling Decoupling Network (CDN)
  • Compliant Test Standards: IEC / EN 61000-4-6
  • Application: One unscreened, balanced pair
  • Frequency Range: 150 kHz to 230 MHz
  • RF Input Voltage: 40 V (Max)
  • RF Input Connector: 50 Ω BNC (Female)
  • Voltage Rating: 124 V AC / 125 V DC (Line to Ground)
  • Current Rating: 2 Amps (Max)
  • AE and EUT Connections: RJ 11
  • Common Mode Impedance:
  • 150 kHz - 26 MHz: 150Ω ± 20Ω
  • 26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω
  • 80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω
  • Voltage Division Factor: 9.5 dB +4 / -1
  • Decoupling of Common Mode Disturbance:
  • 150 KHz ≥ 45dB (RF/AE)
  • 500 KHz ≥ 50dB (RF/AE)
  • 230 MHz ≥ 50dB (RF/AE)
  • Dimensions: 8.5 x 4.5 x 3.5 inches or 21.5 x 11.4 x 8.8 cm
  • Weight: 5 lbs. or 2.3 kg
  • Accessories Available from Com-Power for setting test levels and running the test:
  • ADA-T2 shorting adapters
  • ADA-515-2 150 Ω to 50 Ω adapters
  • TEP-050 50 Ω Terminator
  • ATTN-6-100W Power Attenuator
  • DCU-300-100W Directional Coupler
  • ASC series Power Amplifiers
