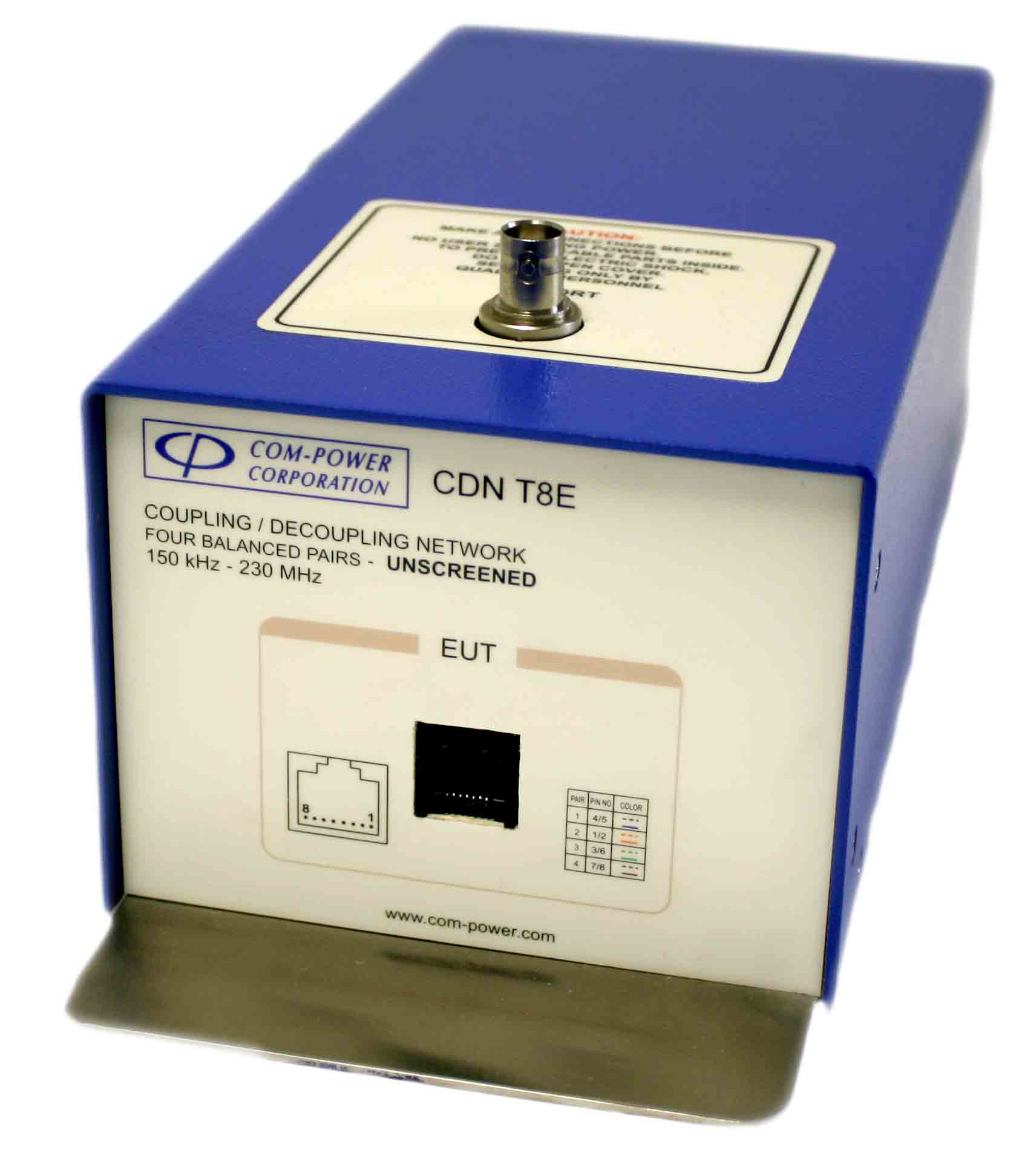

CDN for 8 Line (4 Balanced Pairs)
- Com-Power CDN-T8E is part of a series of Coupling/Decoupling Networks designed specifically for testing products conducted immunity per IEC/EN 61000-4-6.
- The CDN-T8E is designed for testing products that use four unscreened, balanced pairs for communication such as Ethernet.
- It has an RJ45 connector for both EUT and AE connections.
- The CDN-T8E can handle up to 1.5 Amps of current. The RF disturbance signal coupling port is female BNC.
- It can handle up to 40V of RF Input Voltage. The bottom surface of the CDN is not painted for easy and effective grounding.
- All Com-Power CDNs are individually calibrated. The Com-Power CDN-T8E fully complies with the requirements contained in the IEC 61000-4-6 and CISPR 16-1-2.
- Frequency Range 150 kHz to 230 MHz
- Designed for IEC / EN 61000-4-6
- Four unscreened, balanced pairs
- Individual calibration included
- Three Year Warranty
- Product Name: Coupling Decoupling Network (CDN)
- Compliant Test Standards: IEC / EN 61000-4-6
- Application: Four unscreened, balanced pair
- Frequency Range: 150 kHz to 230 MHz
- RF Input Voltage: 40 V (Max)
- RF Input Connector: 50 Ω BNC (Female)
- Voltage Rating: 124 V AC / 125 V DC (Line to Ground)
- Current Rating: 1.5 Amps (Max)
- AE and EUT Connections: RJ 45
- Common Mode Impedance:
- 150 kHz - 26 MHz: 150Ω ± 20Ω
- 26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω
- 80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω
- Voltage Division Factor: 9.5 dB +4 / -1
- Decoupling of Common Mode Disturbance:
- 150 KHz ≥ 45dB (RF/AE)
- 500 KHz ≥ 50dB (RF/AE)
- 230 MHz ≥ 50dB (RF/AE)
- Dimensions: 8.5 x 4.5 x 3.5 inches or 21.5 x 11.4 x 8.8 cm
- Weight: 5 lbs. or 2.3 kg
- Accessories Available from Com-Power for setting test levels and running the test:
- ADA-T4/T8 shorting adapters
- ADA-515-2 150 Ω to 50 Ω adapters
- TEP-050 50 Ω Terminator
- ATTN-6-100W Power Attenuator
- DCU-300-100W Directional Coupler
- ASC series Power Amplifiers
