coupling decoupling network

CDN for USB Connectors

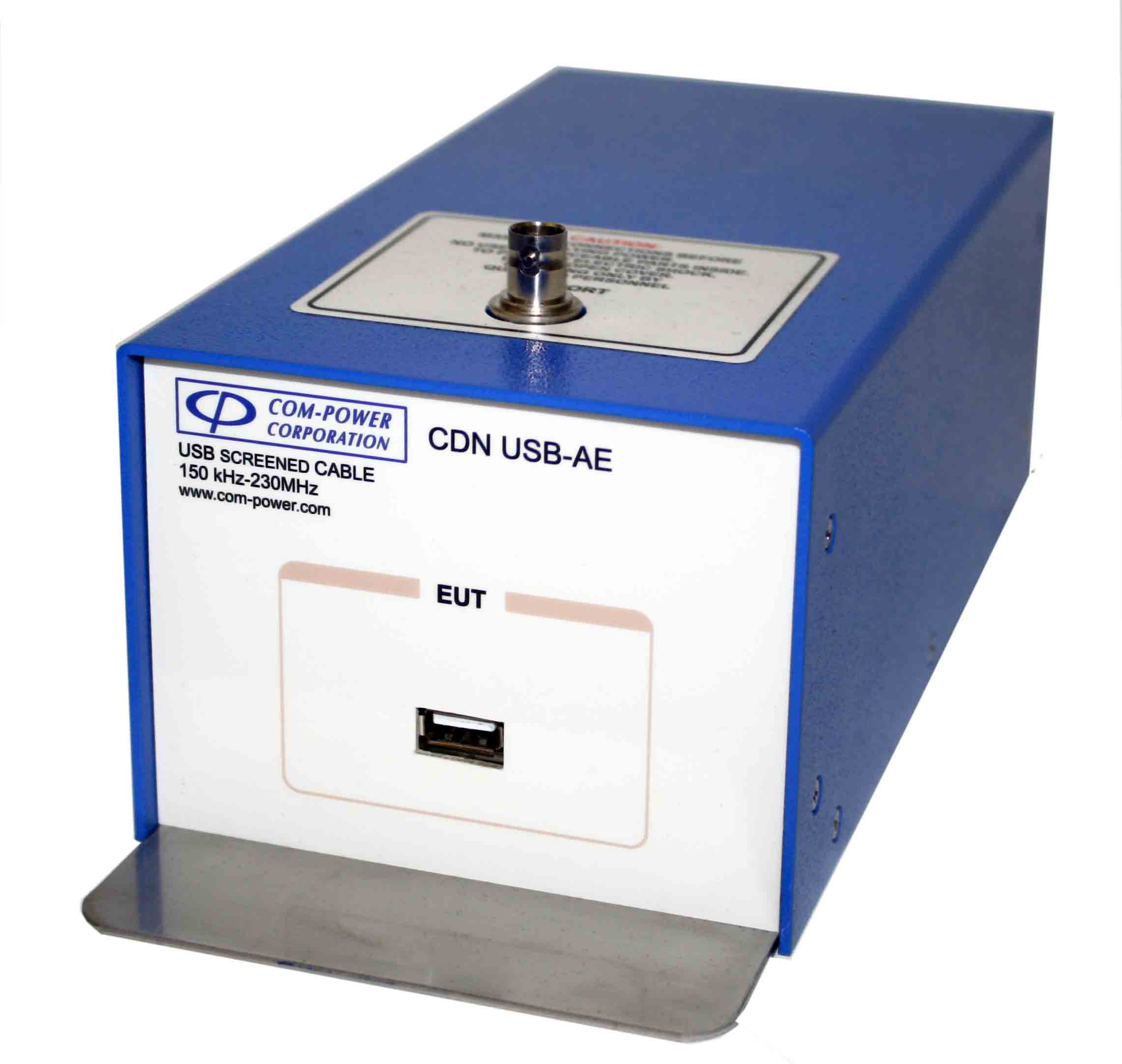

Products that use USB Type A connectors can use CDN-USB-AE for testing It has a USB type A on the EUT side and USB Type B on the AE side. Com-Power CDN-USB-AE can handle up to 1 Amp of current. The RF noisy signal coupling port is female BNC. It can handle up to 40V of RF Input Voltage-Power CDN-USB-AE is a member of the series of Coupling/Decoupling Networks designed for testing product for conducted immunity per IEC/EN 61000-4-6 and CISPR 16-1-2. The bottom surface of the CDN is not painted for easy and effective grounding during EMC testing. Com-Power CDN-USB-AE is individually calibrated. All Com-Power CDNs can be purchased separately or as part of the CIS series conducted immunity test system.

  • Frequency range 150 MHz to 230 MHz
  • Meets CISPR 16-1-2 requirements
  • USB cables with type A connector
  • Individual calibration
  • Three Year Warranty
  • Product Name: Coupling Decoupling Network (CDN)
  • Compliant Test Standards: IEC / EN 61000-4-6
  • Application: USB cable with type A connector
  • Frequency Range: 150 kHz to 230 MHz
  • RF Input Voltage: 40 V (Max)
  • RF Input Connector: 50 Ω BNC (Female)
  • Voltage Rating: 30 V AC / 30 V DC (Line to Ground)
  • Current Rating: 1 Amp (Max)
  • AE and EUT Connections: EUT: Type A, AE: Type B
  • Common Mode Impedance:
  • 150 kHz - 26 MHz: 150Ω ± 20Ω
  • 26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω
  • 80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω
  • Voltage Division Factor: 9.5 dB +2 / -1
  • Decoupling of Common Mode Disturbance: ≥ 50dB (EUT/AE)
  • Dimensions: 8.5 x 4.5 x 3.5 inches or 21.5 x 11.4 x 8.8 cm
  • Weight: 2 lbs. or 0.9 kg
  • Accessories Available from Com-Power for setting test levels and running the test:
  • ADA-USB-AE shorting adapters
  • ADA-515-2 150 Ω to 50 Ω adapters
  • TEP-050 50 Ω Terminator
  • ATTN-6-100W Power Attenuator
  • DCU-300-100W Directional Coupler
  • ASC series Power Amplifiers
