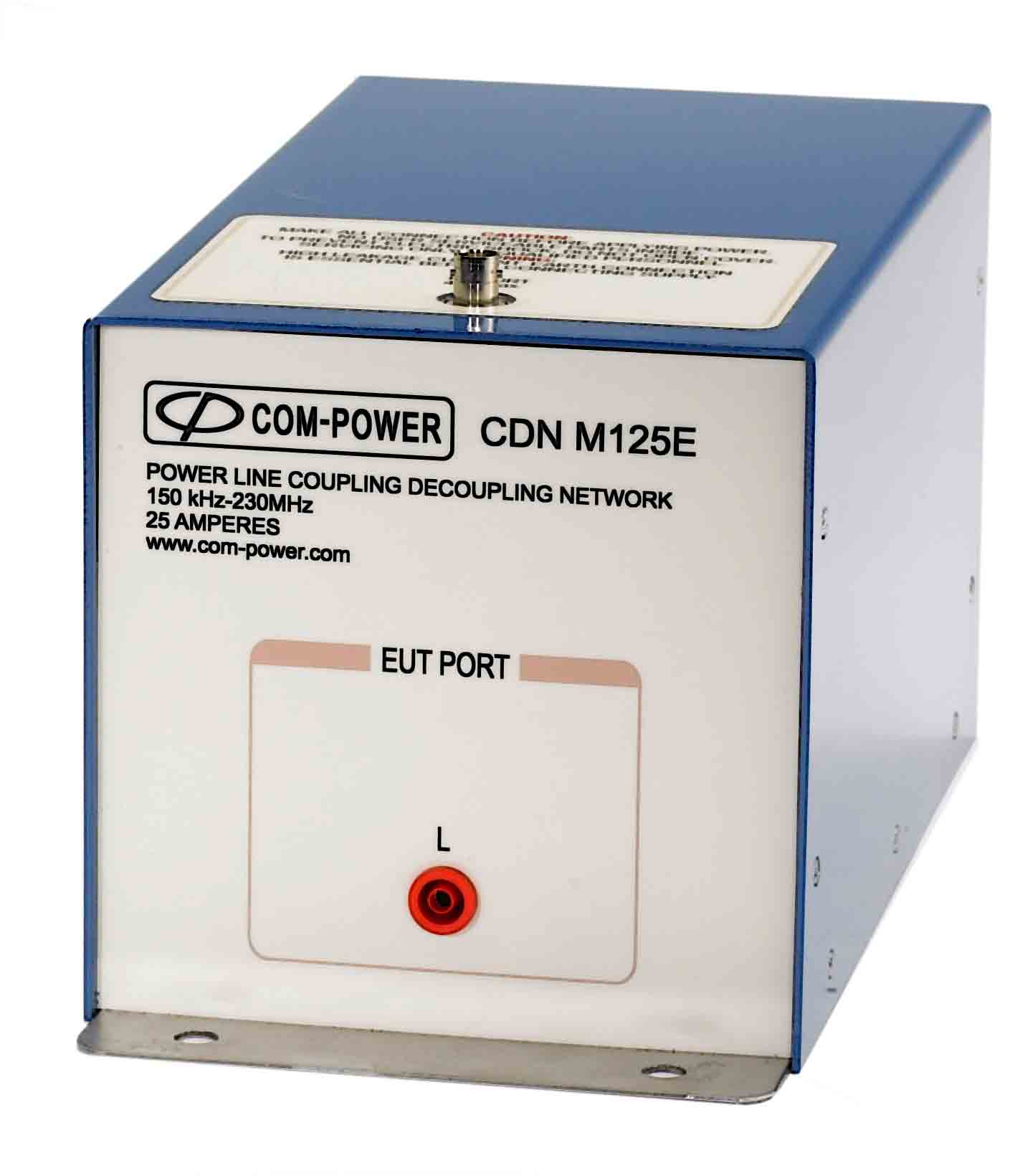

Unscreened Power Supply Line CDN

Model: CDN-M125E

150 kHz to 230 MHz

CDN-M125

Model: CDN-M125 is a single line

M series Coupling Decoupling Network with a current rating of 25 Amps power cable. This CDN covers the frequency range of 150 kHz - 230 MHz. This Coupling Decoupling Network is recommenced for all power supplies connections. The disturbance signals are coupled to each conductor in the supply lines according to EN 61000-4-6 standard.

  • Product Name: Coupling Decoupling Network (CDN)
  • Compliant Test Standards: IEC / EN 61000-4-6
  • Application: Single conductor power cable
  • Frequency Range: 150 kHz to 230 MHz
  • RF Input Voltage: 40 V (Max)
  • RF Input Connector: 50 Ω BNC (Female)
  • Voltage Rating: 250 V AC / 350 V DC (Line to Ground)
  • Current Rating: 25 Amps AC / 17 Amps DC (Max)
  • AE and EUT Connections: 4 mm shrouded banana sockets
  • Common Mode Impedance:
  • 150 kHz - 26 MHz: 150Ω ± 20Ω
  • 26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω
  • 80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω
  • Voltage Division Factor: 9.5 dB +4 / -1
  • Decoupling of Common Mode Disturbance: ≥ 40dB (EUT/AE)
  • Dimensions: 6 x 6 x 13 inches or 15.2 x 15.2 x 33 cm
  • Weight: 5 lbs. or 2.3 kg
  • Accessories Available from Com-Power for setting test:
  • levels and running the test
  • ADA-M125E shorting adapters
  • ADA-515-2 150 Ω to 50 Ω adaptersTEP-050 50 Ω Terminator
  • ATTN-6-100W Power Attenuator
  • DCU-300-100W Directional Coupler
  • ASC series Power Amplifiers
  • CDN-M125 Impedance CDN-M125 Impedance
