Unscreened AF Series CDNs

CDNs for single and multi-unshielded lines

The AF series CDNs are for unscreened, unbalanced cables with two, four, and eight conductors carrying low current. AF series CDNs have 2 mm shrouded banana sockets.

coupling decoupling network

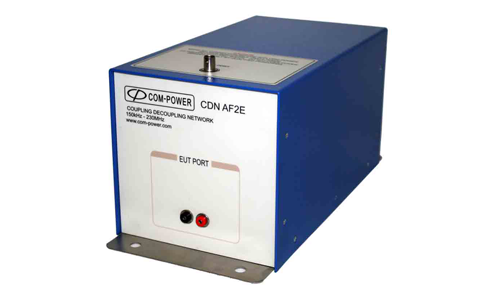

CDN-AF2E : For conducted immunity testing

CDN-AF2E is for two wire unscreened unbalanced cables. This CDN is designed for conducted immunity testing per IEC/EN 61000-4-6Frequency Range: 150 kHz to 230 MHz.



coupling decoupling network

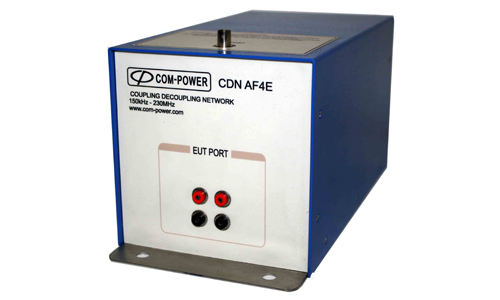

CDN-AF4E

CDN-AF4E is a four-conductor CDN for testing products for conducted immunity per IEC / EN 61000-4-6. Frequency Range 150 MHz to 230 MHz

coupling decoupling network

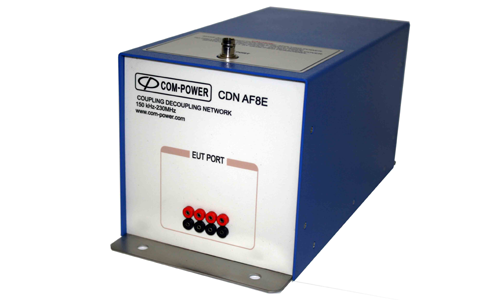

CDN-AF8E

CDN-AF8E is for products that use eight wire unscreened cables for data communication. For conducted immunity per IEC/EN 61000-4-6. Frequency Range: 150 MHz to 230 MHz.
