Comb Generator Reference with 1 MHz or 5 MHz Step size

Model: CGO-515

1 MHz - 1.5 GHz 1 and 5 MHz Step Switchable

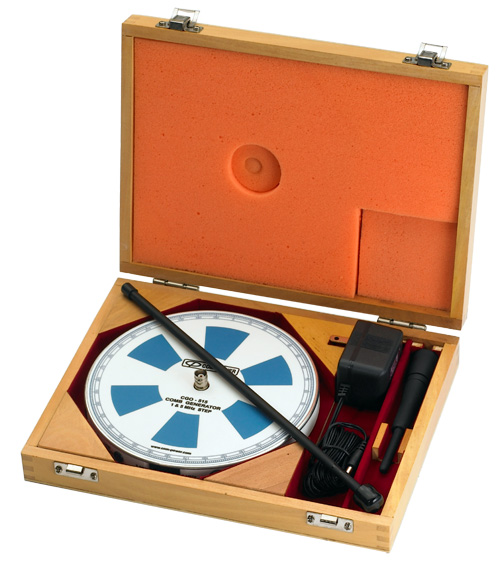

Com-Power CGO-515 Comb Generator

is a broadband EMC signal source for quick EMC site testing. It radiate signals up to 1500 MHz at user selectable 1 or 5 MHz frequency steps. EMC labs calibrate their radiated emissions test sites, instrumentation and accessories at least once a year. The calibration procedures are elaborate and time consuming. However, calibration does not prevent equipment malfunction in between calibration period such as damaged receivers,, broken cables, poor connections, bad antenna, etc. Monitoring a few frequencies regularly on the Comb Generator's broadband radiated output can verify the entire setup quickly and efficiently. Any potential problems with the test setup can be detected before it causes erroneous results. It is powered by a rechargeable NimH battery pack. It has circular shape for more uniform radiated output. It is supplied with one detachable antenna, battery charger adapter and custom wooden storage box.

  • Frequency range of 1 MHz to 1.5 GHz
  • Stable Frequency Output
  • Automatic Low Voltage Signal Shutoff
  • Battery Operated
  • Three-Year Warranty
  • Frequency: 1 MHz - 1.5 GHz
  • Application: EMI Radiated Site Reference Source
  • Frequency Step Size: 1 / 5 MHz
  • Antennas: 5 and 12 inch monopoles
  • Power: Battery 6 V NimH
  • Charger input: 6 VDC, 500 mA
  • Output connector: BNC
  • Weight: 1.5 lbs (0.68 kg)
  • Size: 7 x 1 inches (17.8 x 2.54 cm)
  • Radiated Data: 3 meters, vertical polarization, antenna height varied from 1 to 4 meters

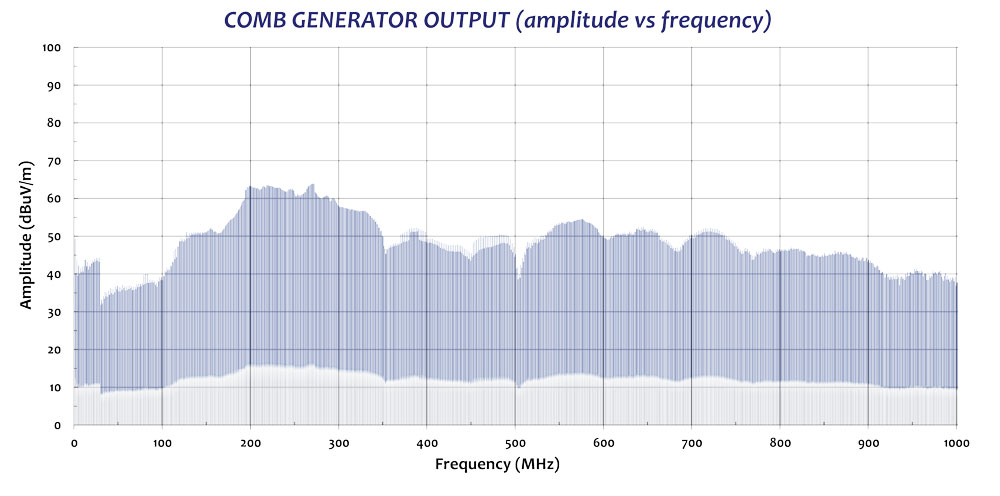

    CGO-515 1 MHz Step Size

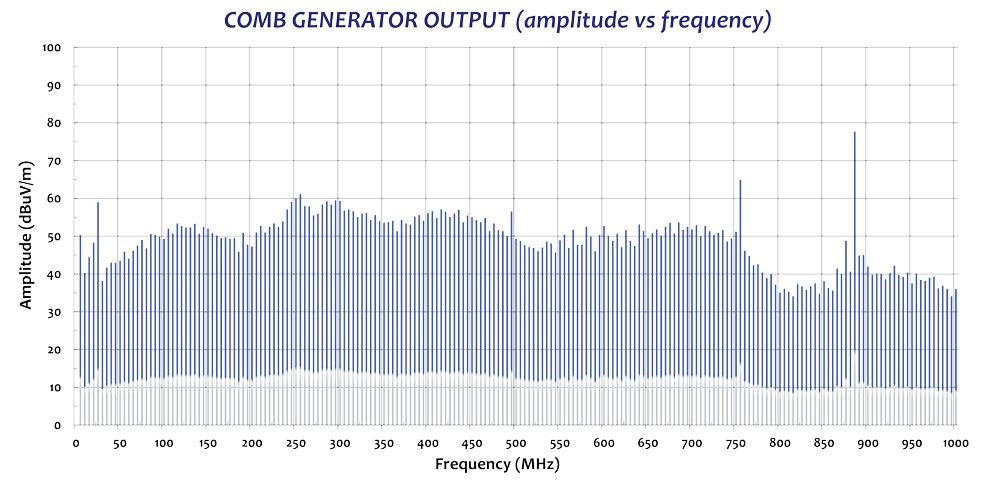

    CGO-515 5 MHz Step Size
