Reference Tuned Dipole Antenna Set - Standard

Model: AD-100A

30 MHz to 1 GHz

Dipole Antenna

Dipole Antenna Kit- ANSI C63.4

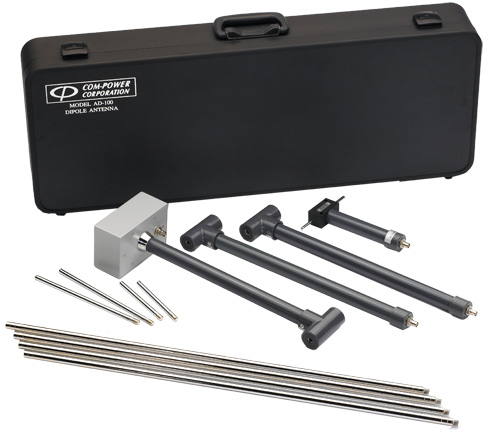

This kit is a reference antenna set specified in many EMC standards with a carrying case. It is used in the frequency range of 30 MHz to 1 GHz. This set consists of four baluns and was designed according to American National Standard C63.4. This reference antenna set is used for EMC test site calibrations and for calibrating other antennas, because it is considered a standard antenna according to ANSI C63.5 standard.

  • Frequency range: 30 MHz to 1 GHz
  • Adjustable (Tunable) Elements
  • Dipoles considered “reference antenna”
  • Rugged Carrying/Storage Case for transport and protected storage
  • Three year Standard Warranty
  • Frequency Range:
    • Balun 1 (dB1): 30 MHz - 65 MHz
    • Balun 2 (dB2): 65 MHz - 175 MHz
    • Balun 3 (dB3): 175 MHz - 400 MHz
    • Balun 4 (dB4): 400 MHz - 1 GHz
  • Polarization: Linear
  • Nominal Impedance: 50 Ohm
  • RF Connectors: BNC-type(female)
  • Min. Element Length: 2.6 inches [6.6 cm]
  • Max. Element Length: 114 inches [290 cm]
  • Isotropic Gain: 1.6 dBi
  • VSWR: less than 1.5:1
  • Specifications: ANSI, CISPR, EN, ETSI, etc.
  • Weight: 15 lbs [6.8 kg] (including baluns, elemnts & case)
  • Dipole Antenna Factors
