Impendace Stabilization Network for 8 lines

Model: ISN-T8

150 kHz to 30 MHz

ISN-T8 Telecom Lines

ISN T8 is for Unshielded Telecom Lines.

Its design is based on the circuit illustrated in Figure D.3 of CISPR 22 and Figure F8 of CISPR 32.

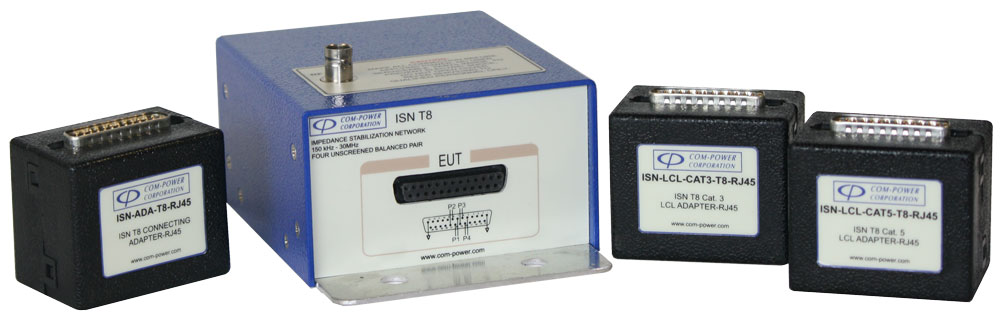

The RF Port is a 50 Ohm female BNC connector, located on the top of the ISN. The ISN is equipped with two D-sub 25 pin female connectors located on the front panel (EUT Port) and rear panel (AE Port), providing the interface to the LCL Adapter and Connecting Adapter, respectively.


  • Frequency Range: 150 kHz to 30 MHz
  • For Unshielded Telecomunication Lines 1 to 4 balanced pairs
  • Complies with CISPR 16-1-2, CISPR 22/32
  • Individual Calibration Included

  • Standards: CISPR 16-1-2, CISPR 22, CISPR 32
  • Frequency Range: 150 kHz to 30 MHz
  • Application: Unscreened lines w/up to 4 balanced pairs
  • Max. Current rating: 800 mA (per line), 1.6 Amps (per pair)
  • Voltage rating: 50 VDC / 32 VAC (line to ground @ 50/60 Hz)
  • RF Port Connector: 50O BNC (female)
  • EUT/AE Port Connections: RJ45 (RJ11 also available)
  • Common mode Impedance: 150O 20 Ohms
  • Phase: 0 20
  • Voltage Division Factor: 10.5 dB 1 dB
  • Decoupling Attenuation(minimum Isolation)
    • 150 kHz to 1.5 MHz: 35 to 55 dB
    • 1.5 MHz to 30 MHz: 55 dB
  • Symmetric Insertion Loss: Max: 3 dB 0.25 dB
  • Symmetric Load Impedance: 100O
  • Transmission Bandwidth: >100 MHz
  • Weight: 1.4 lbs. (0.6 kg) [ISN + LCL Adapter + Connecting Adapter]
  • Impedance

    ISN-T8 Impedance

    Phase

    ISN-T8 Phase

    Voltage Division Factor

    ISN-T8 Voltage Divsion Factor

    Decoupling Attenuation (Isolation)

    ISN-T8 Isolation

    Cat. 3 Longitudinal Conversion Loss (LCL)

    ISN-T8 Cat. 3 Longitudinal Conversion Loss (LCL)

    Cat. 5 Longitudinal Conversion Loss (LCL)

    ISN-T8 Cat. 5 Longitudinal Conversion Loss (LCL)
