Transient Limiter

LIT-153A

150 kHz - 30 MHz

LIT-153
LIT-153A

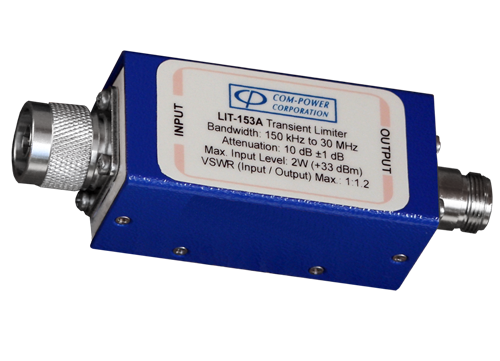

Transient Limiter helps limit the transients

when conducted EMI emissions measured using Line Impedance Stablization Network (LISN). The EMC receiver input is connected live and neutral line of the product via the LISN. The LISN blocks the supply voltage from LISN RF portt but allow the RF signal to pass without much attenuation, so that it can be measured with a EMC receiver. Because the RF signal must be passed through, any short transients (a few microseconds or less) on the power supply lines will also be passed through. Trasient limiter LIT-153A protects the EMI receiver input from these short transients A transient with high enough energy witll damage a unprotected receiver input.

  • Frequency range: 150 kHz - 30 MHz
  • 10 dB Attenuation (in-band)
  • Prevent Damage to Instrument Input from Transient Voltage Spikes
  • Act as a Band-Pass Filter to Attenuate Out-of-band Signals
  • Excellent Input/Output VSWR < 1:1.2
  • Three-Year Warranty
  • Application: Conducted Emissions (Disturbance Voltage) Testing
  • Frequency Range: 150 kHz to 30 MHz
  • Insertion Loss (in-band): 10 dB ±1 dB
  • Maximum Input Level: 2 Watts Continuous (+33 dBm) ±10 Volts DC (without damage)
  • VSWR: 1:1.06 (average), 1:1.2 (max)
  • Input/Output Connectors: N-type (male) / N-type (female)
  • Dimensions (L x W x H) (not including cable/connectors): 3.1" x 1.5" x 1.4" (79.5 mm x 38.2 mm x 35 mm)
  • Attenuation

    Transient Limiter LIT-153A 150kHz - 30 MHz
