powerline CDN 3 Line 50 Amps

(855) 364-2362

Model: CDN-M350E

Get a Quote

150 kHz - 230 MHz Unscreened Power Supply Line

CDN-M350E

50 Amps CDN for Power Lines

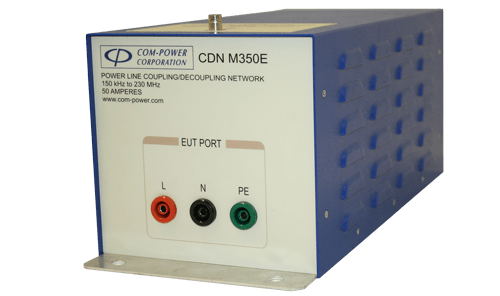

CDN-M350E Coupling/Decoupling Network is designed using three conductor power cable specifically for conducted immunity testing per IEC 61000-4-6 and per CISPR 16-1-2. The disturbance signals are coupled to each conductor individually. The CDN-M350E has a current rating of 50 Amps. This Coupling Decoupling Network covers the frequency range of 150 kHz - 230 MHz.

  • Frequency range: 150 MHz to 230 MHz
  • Meets CISPR 16-1-2 requirements
  • Up to 50 Amps AC current handling
  • Individual calibration
  • Three Year Warranty

  • Product Name: Coupling Decoupling Network (CDN)
  • Compliant Test Standards: IEC / EN 61000-4-6, CISPR 16-1-2
  • Application: Three conductor power cable
  • Frequency Range: 150 kHz to 230 MHz
  • I/O rating for EUT/AE Ports: 250 VAC, 350 VDC
  • Max Input Voltage: 40 V (Max)
  • Application: Three wire power cables
  • Current Rating: 50 Amps AC / 35 Amps DC
  • RF Input Connector: 50 Ω BNC (Female)
  • I/O Connection: 5.2 mm banana sockets with shrouded sheath
  • Common Mode Impedance
  • 150 kHz - 24 MHz: 150Ω ± 20Ω
  • 24 MHz - 80 MHz: 150Ω + 60Ω / – -45Ω
  • 80 MHz - 230 MHz: 150Ω + 60Ω / – -60Ω
  • Voltage Division Factor: 9.5 dB +4.5 / -0.5
  • Dimensions: 7 x 7 x 16 ¾ inches or 17.7 x 17.7 x 42.5 cm
  • Weight: 7.5 lbs. or 3.4 kg
  • Accessories Available from Com-Power for setting test levels and running the test:
    • ADA-M350E shorting adapters
    • ADA-515-2 150 Ω to 50 Ω adapters
    • TEP-050 50 Ω Terminator
    • 1, 3, 6, 10, 20, 30 dB Power Attenuators
    • DCU-1000-100W Directional Coupler
    • ASC series Power Amplifiers

    impedance frequency chart for three conductor 50 amps powerline coupling decoupling networkphase frequency chart for coupling decoupling network 50 amp 3 powerlines
