3 Phase LISN - For Medical Devices

LI-3P-2X

9 kHz to 30 MHz

LI-3P-2X

Three Phase LISN for CISPR / ANSI

The LI-3P-2x Series consists of four separate models of fourconductor, 50Ω, 50/250 µH +5Ω Line Impedance Stabilization Networks (LISNs); also known as Artificial Mains V-Networks (V-AMNs). The primary differences between the four models are their respective current ratings:

LI-3P-216 16 Amps (per line, continuous)
LI-3P-232 32 Amps (per line, continuous)
LI-3P-263 63 Amps (per line, continuous)
LI-3P-2100 100 Amps (per line, continuous)

These LISNs provide the necessary measurement platform for performing power line conducted emissions compliance testing per most worldwide commercial EMI/ EMC requirements, such as FCC (U.S.), CE (Europe), AS/NZS (Australia/New Zealand), VCCI (Japan), Industry Canada, etc.

Three phase LISNs

can be operated remotely or locally. Remote switching of the line under test (L1, L2, L3, N) is performed using the RLI-100 Remote LISN Interface, which controls the LISN via fiber optic connection.
In addition to the remote method, the line under test can also be selected using the mechanical, four-position switch located on the front panel of the LISNs. Using either switching method, the lines which are not selected are internally terminated into 50 ohms, while the selected line is terminated by the 50 ohm input impedance of the measuring instrument.

  • Frequency Range: 9 kHz to 30 MHz
  • Current Ratings of 16, 32, 63 and 100 Amps
  • Fully Compliant with CISPR 16-1-2(CE)and ANSI C63.4(FCC)
  • Remote Switching of Line Under Test
  • Four-conductor, 50Ω, 50/250 μH +5Ω Networks for 3Ø Delta and Wye Power Configurations
  • Three-Year Warranty


  • LI-3P-216 LI-3P-232 LI-3P-263 LI-3P-2100
    GENERAL
    Products Description Line Impedance Stabilization Network (LISN)
    Application Power Line Conducted Emissions (Disturbance Voltages) Tests
    Standards CISPR 16-1-2 (CE), ANSI C63.4 (FCC)
    Type 50Ω, 50/250 µH +5Ω, (4) Conductor Network
    Frequency Range 9 kHz to 30 MHz
    Insertion Loss - 9 kHz to 150 kHz <6.5 to <0.7 dB (decreasing linearly with the logarithm of frequency)
    Insertion Loss - 150 kHz to 30 MHz <0.7 dB
    Isolation - 9 kHz to 50 kHz >0 to >40 dB (increasing linearly with the logarithm of frequency)
    Isolation - 50 kHz to 30 MHz >40 dB
    INPUT POWER RATINGS FOR EQUIPMENT UNDER TEST (EUT)
    Current (maximum continuous, per line) 16 Amperes 32 Amperes 63 Amperes 100 Amperes
    AC Voltage (maximum) 500 Voltsrms (line to line), 288 Volts rms (line to ground)
    DC Voltage (maximum) 705 Volts DC
    ELECTRICAL
    Remote Interface Power Inputs 6 Volts DC (unregulated), 500 mA (LISN and RLI-100 Remote LISN Interface)
    Cooling Fans Power Input Not Applicable 15 Volts DC (unregulated), 500 mA
    INPUT/OUTPUT CONNECTORS
    Power Input Port Plug (affixed to LISN chassis) Schneider Electric P/N: 83862 Schneider Electric P/N: 83874 Schneider Electric P/N: 81886 Schneider Electric P/N: 81898
    Power Input Socket (for power input cable) Schneider Electric P/N: PKF16M745 Schneider Electric P/N: PKF32M745 Schneider Electric P/N: 81486 Schneider Electric P/N: 81498
    Power Output Port Socket (affixed to LISN chassis) Schneider Electric P/N: PKF16F745 Schneider Electric P/N: PKF32F745 Schneider Electric P/N: 81286 Schneider Electric P/N: 81298
    Power Output Port Plug (for EUT power cable) Schneider Electric P/N: PKE16M745 Schneider Electric P/N: PKE32M745 Schneider Electric P/N: 81386 Schneider Electric P/N: 81398
    RF Measurement Port 50Ω - N-Type (female)
    Fiber Optic Ports Avago Duplex Latching POF Jack (LISN and RLI-100 Remote LISN Interface)
    Remote Interface Power Input Ports 5.5/2.5 mm Power Jack (LISN and RLI-100 Remote LISN Interface)
    Cooling Fans Power Input Port Not Applicable 5.5/2.1 mm Power Jack
    ENVIRONMENTAL
    Operating Temperature 40°F to 104°F (5°C to 40°C)
    Cooling • Louvered Side Panels
    (no forced air)
    • Louvered Side Panels
    • Forced Air by (2) user-controlled, internal fans with (2) 4.5” circular intake openings on rear panel (each opening protected by a circular metal finger guard)
    •(2) 4” square air outlets located on the top cover (each opening protected by metallic mesh)
    Dimensions & Weight See Datasheet

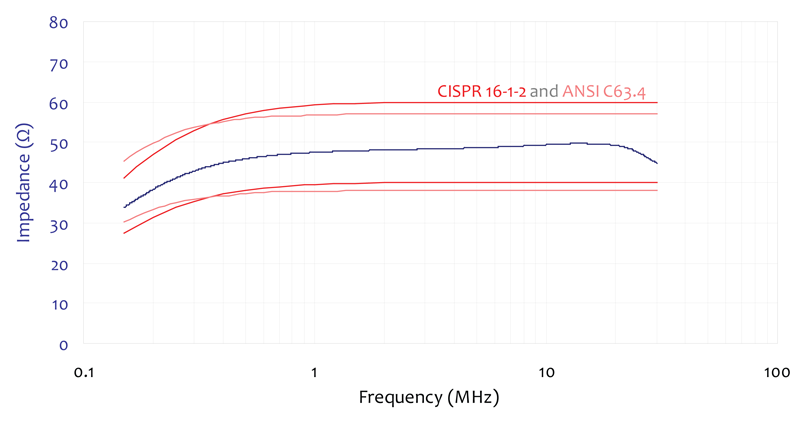

    Typical Impedance Data

    Imepdance

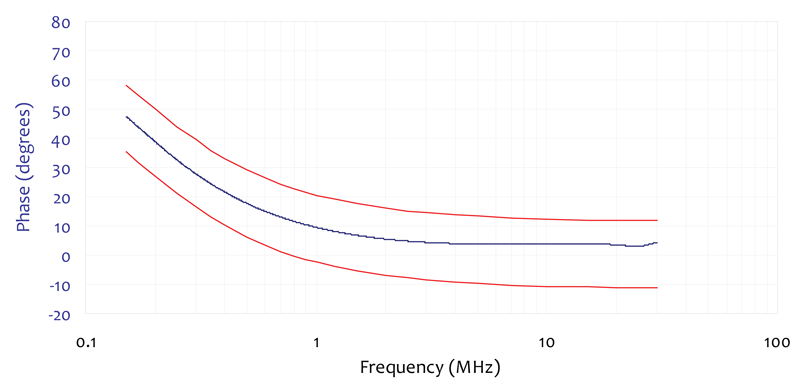

    Typical Phase Data

    Imepdance

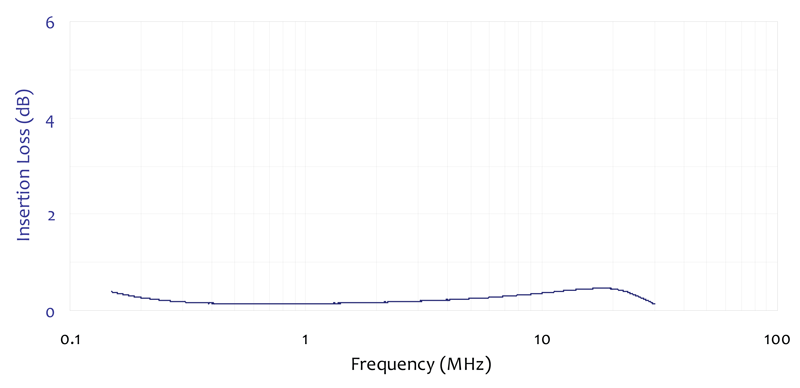

    Typical Insertion Loss

    Imepdance

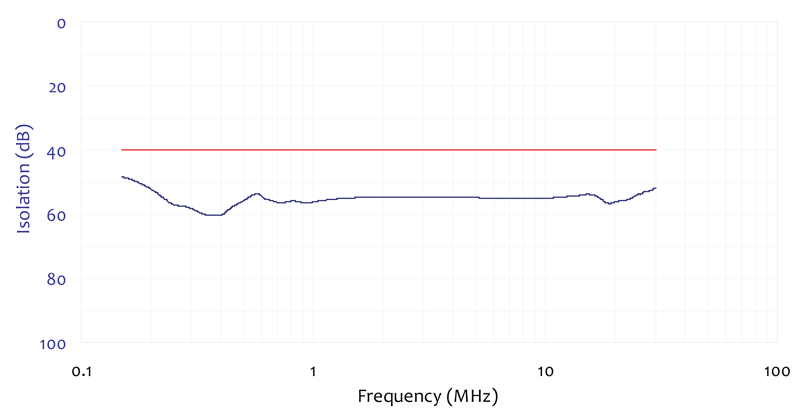

    Typical Isolation Data

    Imepdance
