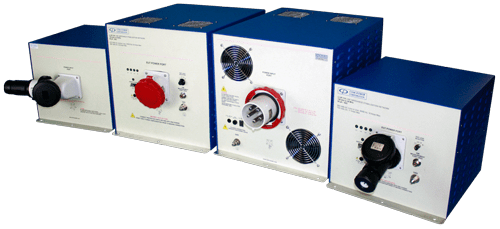

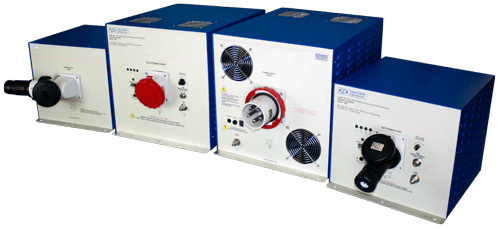

Com-Power three-phase LISN 3P Series consists of 12 separate models of four conductors, 50Ω, 50 μH Line Impedance Stabilization Networks (LISNs). The primary differences between the four models are their respective current ratings:
LI-3P-X16
|
16 Amps (per line, continuous)
|
LI-3P-X32
|
32 Amps (per line, continuous)
|
LI-3P-X63
|
63 Amps (per line, continuous)
|
LI-3P-X100
|
100 Amps (per line, continuous)
|
(X = 1, 2, and 4. 1X series: 4 models, 2X series: 4 models, 4X series: 4 models. Total 12 models)
These LISNs provide the necessary measurement platform for performing power line conducted emissions compliance testing per MIL-STD-461, CE102, conducted emissions, radio frequency potential, and power leads. The LISNs perform the following functions:
• provide a defined, stable power line impedance across its frequency range for the Equipment Under Test (EUT);
• isolate the EUT and measurement circuit from the power source, thereby minimizing its influence on the measurements; and,
• couple the disturbance voltages to the coaxial measurement port, which connects to the measuring instrument.
