Antenna Kit for FCC & CISPR

ANK-310

30 MHz to 1 GHz

EMC Antenna Kit ANK-310

Radiated Emission for FCC, CISPR, DO-160, MIL STD-461

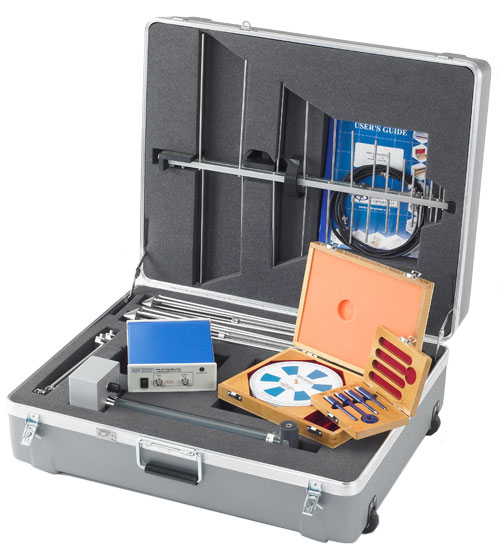

Com-Power ANK-310 antenna kit also known as the Starter Kit for Emissions Testing is suitable for offsite testing from 30 MHz to 1 GHz. The antenna kit is supplied with a carrying case with a specific storage compartment for each antenna. Antenna tripod model AT-120 with a separate carrying case (ATC-120) is available as an option.

Items Included:

1. ABF-900 Collapsible Biconical Antenna 25 MHz-300 MHz
2. ALC-100 Compact Log Periodic Antenna 300 MHz-1 GHz
3. PAM-103 33 dB Gain Preamplifier 1 MHz-1 GHz
4. CGO-501 or CGO-505 Comb Generator 1 or 5 MHz Step
5. PS-500 Near Field Probes 400 Hz-5 GHz
6. Cables N and BNC type

  • Broadband Antennas
  • High Gain Preamplifier
  • Near Field Probe Kit
  • Comb Generator
  • Carrying Case
  • Three-year Warranty
  • Frequency Range: 30 MHz to 1 GHz

    Items Included:
    ABF-900 Collapsible Biconical Antenna 25 MHz-300 MHz
    ALC-100 Compact Log Periodic Antenna 300 MHz-1 GHz
    PAM-103 33 dB Gain Preamplifier 1 MHz-1 GHz
    CGO-501 or CGO-505 Comb Generator 1 or 5 MHz Step
    PS-500 Near Field Probes 400 Hz-5 GHz
    Cables N and BNC type
    Calibration Data

    Weight: 54 lbs / 24.5 kg

    Dimensions: 27 x 22 x 10 Inches / 68.5 x 55.8 x 24.4 cm

    ABF-900A Antenna Factor

    Antenna Factor ABF-900A

    ALC-100 Antenna Factor and Gain


    PAM-103 Preamplifier Gain

    PAM-103 Gain

    CGO-501 Typical Data
