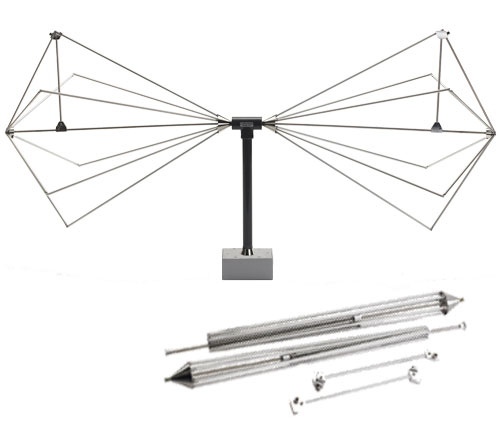

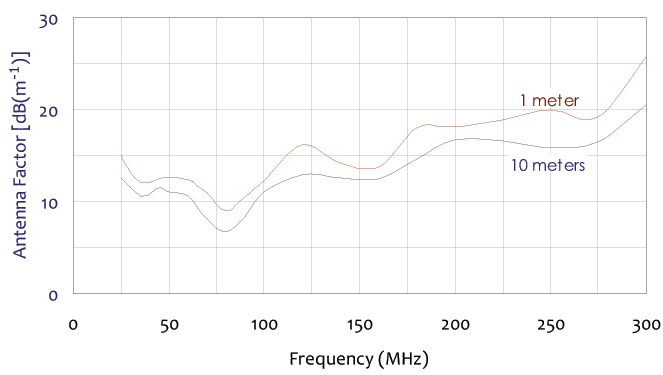

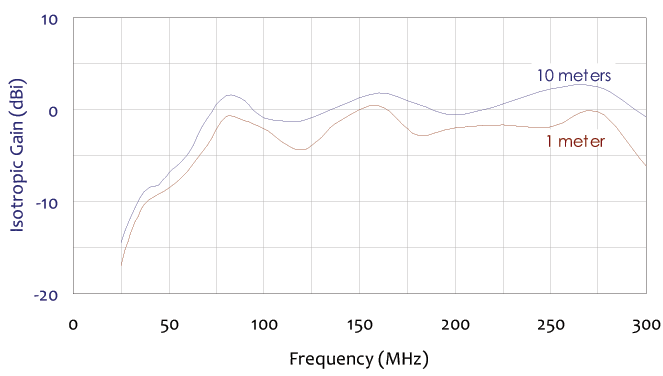

AB-300M Broadband, Linearly Polarized Biconical Dipole Antenna

🔍 Not Sure Which Antenna You Need?

Compare all Com-Power antenna models side-by-side with our interactive selection tool. Filter by frequency range, antenna category, application, polarization, and power handling to find your perfect match.

AB-300M Biconical Dipole Antenna – Technical FAQs

1. What is the AB-300M biconical antenna and where is it used in real EMC testing?
The AB-300M is a broadband biconical dipole antenna designed for 25 MHz to 300 MHz radiated emissions and immunity testing. In real-world EMC labs, it is used for testing products such as industrial controllers, power electronics, communication devices, and cable assemblies. It is especially useful for detecting emissions from long cables and enclosures that behave like unintended antennas.

2. Why is the 25 MHz to 300 MHz range critical in real product testing?
This frequency range is where many real-world EMI issues occur, especially from cable radiation, switching harmonics, and digital clock leakage. Products like power supplies, automotive electronics, and embedded systems often fail compliance in this band, making a biconical antenna essential for both compliance and troubleshooting.

3. When should you use a biconical antenna instead of a log periodic antenna?
A biconical antenna is preferred from 25 MHz to ~300 MHz because it provides better broadband performance at lower frequencies. Log periodic antennas are typically used above 200–300 MHz where smaller physical size and directional gain become more important. In most EMC setups, biconical antennas cover the lower band, while log periodic antennas cover mid frequencies.

4. How does a biconical antenna compare with a horn antenna?
Biconical antennas operate at lower frequencies (25–300 MHz), while horn antennas are used at much higher frequencies (typically above 700 MHz). Horn antennas provide higher gain and directionality, whereas biconical antennas provide broader coverage and are better suited for lower-frequency emissions testing.

5. Can the AB-300M be used for both emissions and immunity testing?
Yes. The AB-300M can be used as a receiving antenna for emissions testing and as a transmitting antenna for immunity testing when driven by an RF power amplifier. This makes it useful in both compliance testing and engineering validation setups.

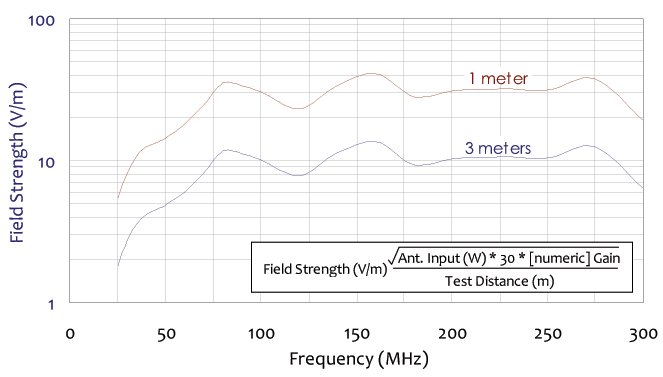

6. What are real-world immunity test use cases for this antenna?
In immunity testing, the AB-300M is used to generate RF fields to test product robustness. For example, automotive ECUs, avionics modules, and industrial PLCs are exposed to RF fields to ensure they continue operating without malfunction.

7. What standards require or recommend a biconical antenna like AB-300M?
This antenna is used in standards such as FCC Part 15, CISPR 32, CISPR 11, EN 55032, ANSI C63.4, and MIL-STD-461. It is also used for NSA (Normalized Site Attenuation) validation and chamber calibration.

8. What is antenna symmetry and why is ±1 dB important?
Antenna symmetry ensures both sides of the dipole radiate equally. A ±1 dB balance ensures measurement accuracy and repeatability, which is critical for compliance testing where results must be consistent across labs.

9. What practical problems does this antenna help diagnose?
It helps identify EMI caused by: - Cable radiation - Ground loops - Switching harmonics - Poor shielding - PCB layout issues Engineers often use it during debugging to locate emission hotspots.

10. How is this antenna used in chamber validation?
The AB-300M is used for Normalized Site Attenuation (NSA) testing to validate EMC chambers and open area test sites. This ensures the measurement environment meets regulatory requirements.

11. Why is NIST-traceable calibration important?
NIST traceability ensures measurement accuracy and allows results to be accepted globally. It is essential for certified EMC labs and compliance documentation.

12. What are real-world field measurement applications?
The antenna can be used for: - Field strength monitoring - Site surveys - Shielding effectiveness testing - EMC troubleshooting in industrial environments

13. When should you use a monopole antenna instead of this?
Use a monopole antenna (like AM-741R) when measuring electric fields below 30 MHz. Use a biconical antenna when testing radiated emissions above ~25 MHz where broadband dipole behavior is required.

14. What are advantages of collapsible vs fixed elements?
Collapsible elements are ideal for portable setups and storage, while fixed elements provide faster setup and better mechanical stability in permanent lab installations.

15. How does impedance matching affect measurements?
Proper impedance matching reduces reflections and improves measurement accuracy. The optional 5 dB attenuator helps meet CISPR return loss requirements, ensuring reliable data.

16. What industries typically use this antenna?
Industries include: - Automotive EMC testing - Aerospace and defense - Consumer electronics - Industrial equipment manufacturing

17. How does this antenna improve EMC test efficiency?
Because it covers a wide frequency range, engineers can perform full sweeps without changing antennas. This reduces setup time and improves repeatability.

18. Why should an EMC lab choose the AB-300M?
The AB-300M provides broadband coverage, high measurement accuracy, dual transmit/receive capability, and compliance with major standards. It is a versatile antenna that supports compliance testing, troubleshooting, and chamber validation.
