Passive Loop Antennas

Two Models

Com-Power’s MIL-STD-461 loop antennas are specifically designed for testing per RE101 (emissions) and RS101 (radiated susceptibility), and operate over the frequency range of 30 Hz to 100 kHz.

AL-RE101 loop antenna

AL-RE101 Loop Antenna

The AL-RE101 is a receiving loop antenna used for Mil-Std 461, RE101 testing to measure the magnetic field intensity generated by the Equipment Under Test (EUT). Its construction consists of a 13.3 cm diameter, 36-turn, electrostatically shielded coil of 7-strand, 41 gauge Litz wire




View Product

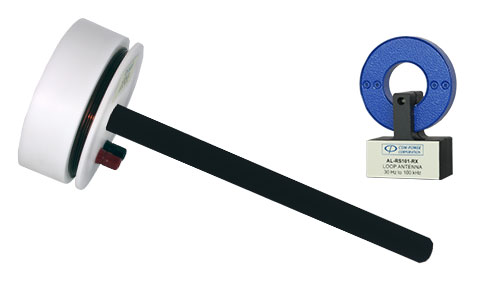

AL-RS101 loop antenna set

AL-RS101 Loop Antenna Set

The AL-RS101-TX is a transmitting loop antenna constructed with 20 turns of 12 gauge enamel-insulated copper wire with a mean diameter of 12 cm. The antenna input terminals are fitted with 4 mm banana jacks.
The AL-RS101-RX is a receiving loop antenna constructed with a 51-turn, electrostatically shielded coil of 7-strand, 41 gauge Litz wire. The antenna output port is fitted with a female BNC connector.

View Product
