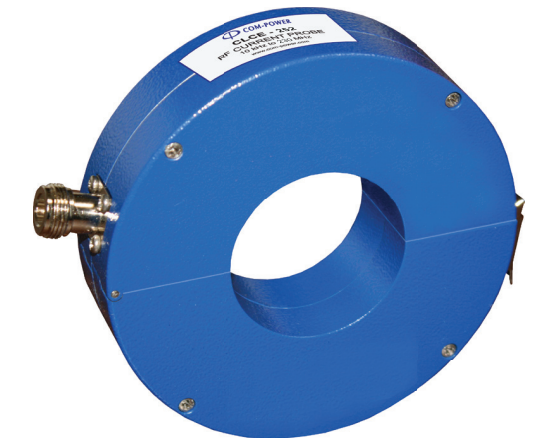

High-Performance RF Current Probe

Wide Frequency Range (9 kHz–230 MHz):
The CLCE-252 covers a broad range ideal for EMC testing and RF current measurement on cables and wire bundles.

Large Aperture Design (2 inches):
Accommodates thick cable bundles up to 52 mm, making it suitable for high-current applications and bulk cable testing.

EMC Compliance Testing:
Designed for conducted disturbance measurements compliant with CISPR 15, 25, 32, MIL-STD-461, IEC 61000-4-6, and RTCA DO-160 standards.

Current Monitoring for BCIP:
Effective as a Bulk Current Injection Probe (BCIP) monitor in immunity testing, ensuring precise diagnostics.

Inductive Clamp Measurement:
Operates as a toroidal transformer to measure current via inductive coupling—non-invasive and efficient testing method.

Split-Core Convenience:
The rugged, hinged enclosure allows easy clamping around live or fixed cables without disconnecting them.

NIST Traceable Calibration:
Each unit includes individual NIST-traceable calibration data with optional ISO 17025 certified calibration.

Compact & Lightweight:
With dimensions of 5.9” x 4.9” x 1.4” and weight of 1.5 lbs, it's portable yet robust for field and lab environments.

High Current Capacity:
Supports up to 150A DC, 90A AC (50/60 Hz), and 72A AC (400 Hz)—ideal for demanding test setups.

Com-Power Accessories Compatible:
Best used with FCLCE-452 Calibration Fixture and SPA-932TG Spectrum Analyzer for complete EMC compliance systems
