Tempest Line Impedance Stabilization Network

LIP-120

5 kHz to 1 MHz

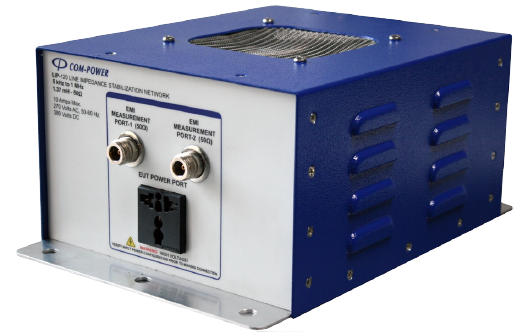

Tempest LIP-120 Line Impedance Stabilization Network for conducted emissions testing 5 kHz to 1 MHz

Tempest Line Impedance Stabilization Network

  • The Com-Power LIP-120 PLISN is engineered specifically for TEMPEST conducted emissions testing, delivering reliable performance across the 5 kHz to 1 MHz frequency range.

  • It provides a controlled and stable 50Ω impedance, ensuring accurate and repeatable test results in government, military, and compliance labs.

  • The LISN isolates the Equipment Under Test (EUT) and the measurement circuit from the power source, minimizing external interference during TEMPEST evaluations.

  • Its compliance with TEMPEST standards makes it suitable for sensitive applications where secure and standardized EMI performance verification is required.

  • The 50 Ω N-type connectors allow direct connection to EMI receivers or spectrum analyzers for reliable conducted noise measurements.

  • Designed for both AC and DC input power, the unit supports up to 270 VAC / 380 VDC and currents of 10 amps, making it versatile for multiple test setups.

  • Its compact, durable design (11.8 × 8 × 5.1 inches, 9 lb) allows easy integration into laboratory environments and portable test systems.

  • Each LIP-120 is supplied with calibration data traceable to NIST, with optional ISO-17025 calibration available for high-assurance compliance testing.

  • Backed by a three-year warranty, the LIP-120 provides long-term reliability for critical TEMPEST and EMC/EMI compliance testing needs.

  • Designed for TEMPEST-conducted emissions testing (5 kHz – 1 MHz)

  • Provides stable 50Ω impedance for accurate and repeatable results

  • Isolates EUT and measurement circuits from power sources to minimize interference

  • Compliant with TEMPEST standards for government and military testing

  • Supports both AC (270 VAC, 50/60 Hz) and DC (380 VDC) operation

  • Handles up to 10 amps of current

  • Equipped with a 50 Ω N-type (female) RF measurement connector

  • Universal three-pin AC receptacle for EUT connection

  • Supplied with NIST-traceable calibration data (ISO-17025 optional)

  • Compact, rugged design with a three-year warranty

Electrical

  • Frequency Range: 5 kHz to 1 MHz (TEMPEST testing compliant)

  • Impedance: 50Ω

  • Inductance: 1.37 mH

  • Standard Compliance: TEMPEST

  • Number of Lines: 2 (Line & Neutral)

  • Max Current: 10 amps

  • Max Voltage: 270 VAC (50/60 Hz, Line to Ground) / 380 VDC

  • RF Measurement Port: 50Ω, N-type (female)

  • EUT Power Connector: Universal three-pin AC receptacle

Mechanical

  • Dimensions: 11.8 × 8 × 5.1 in (30 × 20.5 × 13 cm)

  • Weight: 9 lb (4.05 kg)

Environmental

  • Operating Temperature: 5 °C to 40 °C (40 °F to 104 °F)

  • Storage Temperature: –25 °C to +70 °C
