Tempest LISN For Power Line Conducted Emissions Compliance Testing

LIP-1000

1 MHz to 1 GHz

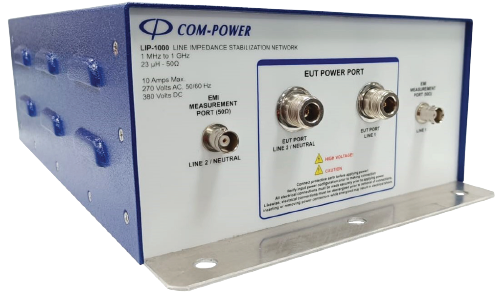

Tempest LIP-1000 Line Impedance Stabilization Network for conducted emissions testing 1 MHz to 1 GHz

Tempest LISN For Power Line Conducted Emissions Compliance Testing

  • The Com-Power LIP-1000 is a high-frequency Tempest LISN, engineered for conducted emissions testing in the 1 MHz to 1 GHz range.

  • It provides a stable and defined 50Ω impedance, ensuring consistent and repeatable results during government and military TEMPEST evaluations.

  • By isolating the Equipment Under Test (EUT) and measurement circuits from the mains, the LISN minimizes external power source influence.

  • Its dual-conductor design reduces cross-coupling between lines, enhancing accuracy for sensitive testing environments.

  • The LIP-1000 couples disturbance voltages to its RF measurement ports, allowing direct connection to EMI receivers or spectrum analyzers.

  • Air-core inductors are used to eliminate saturation effects, maintaining performance stability across the entire frequency band.

  • It supports both AC and DC systems, handling up to 270 VAC / 380 VDC and 10 A continuous current, making it versatile for a wide range of setups.

  • Supplied with NIST-traceable calibration data and available ISO-17025 accredited calibration, it meets the highest compliance assurance standards.

  • Compact, lightweight, and backed by a three-year warranty, the LIP-1000 is built for reliability in demanding TEMPEST testing laboratories.

  • Designed for TEMPEST conducted emissions testing (1 MHz – 1 GHz)

  • Provides stable 50Ω impedance

  • Dual-conductor network with reduced cross-coupling

  • Isolates EUT and mains power to minimize interference

  • Handles 10 A continuous current per line

  • Supports 270 VAC / 380 VDC operation

  • Air-core inductors prevent magnetic saturation

  • EUT ports: Coaxial N-type connectors with universal adapter

  • RF measurement ports: BNC (female)

  • Supplied with NIST-traceable calibration (ISO-17025 optional)

  • Three-year warranty

General

  • Type: TEMPEST Line Impedance Stabilization Network

  • Application: Power Line Conducted Emissions Tests

  • Standard: TEMPEST

  • Frequency Range: 1 MHz – 1 GHz

  • Impedance: 50 Ω (+30/–20 Ω)

  • Inductance: 23 µH

  • Insertion Loss: < 2.5 dB

  • Isolation (Mains to EUT Port): > 40 dB

  • Isolation (Line to Line): > 40 dB

Electrical

  • Max Voltage: 270 VAC (50/60 Hz, Line to Ground) / 380 VDC

  • Max Current: 10 A continuous

Connectors

  • Mains Input Port: IEC C13 receptacle

  • EUT Ports: Coaxial N-type connectors (adapter to universal receptacle included)

  • RF Measurement Ports: BNC (female)

Mechanical

  • Dimensions (H × W × D): 4.1 × 8.1 × 14.4 in (104.5 × 206.9 × 365 mm)

  • Weight: 5.5 lb (2.5 kg)

Environmental

  • Operating Temperature: 5 °C to 40 °C (40 °F to 104 °F)
