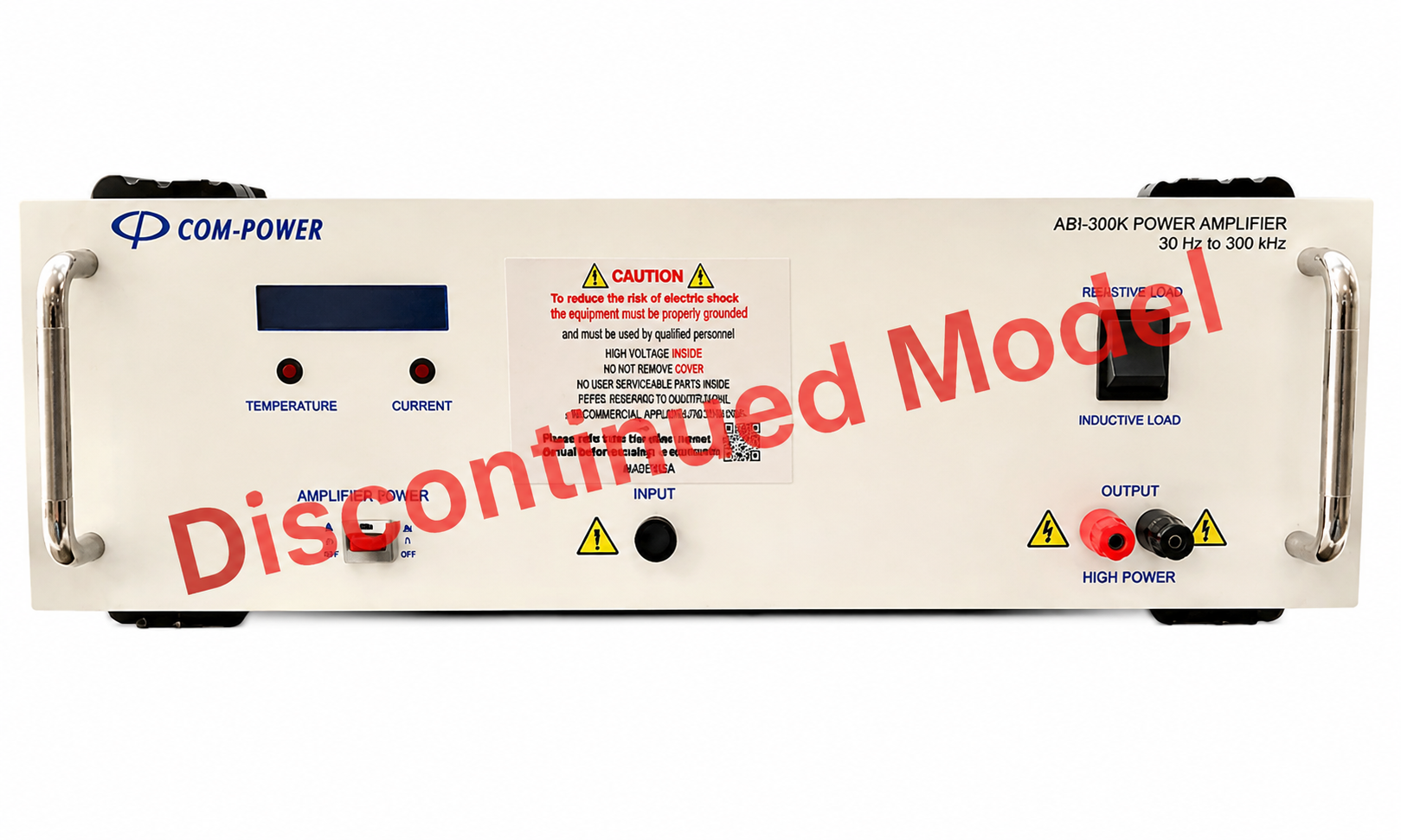

Power Amplifier: 30 Hz to 300 kHz
- ▸ ARI-300K low-frequency power amplifier, 30 Hz–300 kHz — a low-frequency RF power amplifier for conducted and radiated susceptibility testing per MIL-STD-461 and RTCA DO-160.
- ▸ Up to 150 W into low-impedance loads — delivers up to 150 W into 1–2 Ω loads, 100 W into 4 Ω, and 50 W into 8 Ω, with ≤8% distortion.
- ▸ Extended 300 kHz upper frequency — the wider 30 Hz–300 kHz range covers more low-frequency susceptibility test requirements than 150 kHz-class amplifiers.
- ▸ Built for MIL-STD-461 CS101 and RS101 testing — supports conducted susceptibility (CS101) on power and signal lines and radiated susceptibility (RS101) magnetic field immunity, plus RTCA DO-160 Section 18.
- ▸ Precision performance with ±5° phase response — maintains ±5° phase accuracy up to 75 kHz and DC drift under ±1.5 mV after warm-up for stable test conditions.
- ▸ Robust over-temperature and over-current protection — built-in protection circuitry with LED fault indicators safeguards the amplifier during demanding test runs.

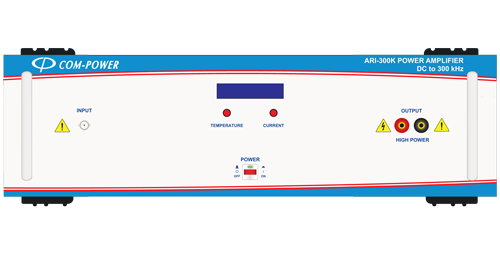

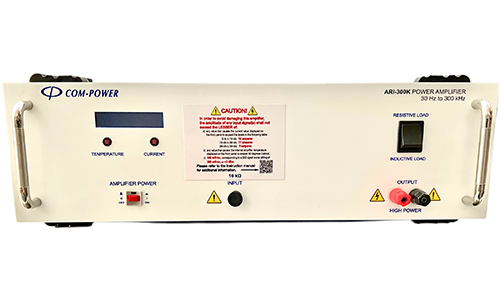

- ▸ Front-panel digital monitoring — displays internal temperature and bias current in real time; BNC input and dual 4 mm banana-jack outputs suit versatile lab setups.
- ▸ 3U rack-mount design with wide-range AC input and three-year warranty — operates on 100–250 VAC with forced-air cooling, sized for lab and system integration.
ARI-300K Features
- ▸ Low-frequency power amplifier — for conducted and radiated susceptibility testing
- ▸ Frequency range 30 Hz to 300 kHz
- ▸ Up to 150 W into 1–2 Ω; 100 W into 4 Ω; 50 W into 8 Ω
- ▸ Designed for MIL-STD-461 CS101 and RS101
- ▸ Supports RTCA DO-160 Section 18 testing
- ▸ ≤8% total harmonic distortion
- ▸ ±5° phase response up to 75 kHz; DC drift < ±1.5 mV
- ▸ Over-temperature and over-current protection — with LED fault indicators
- ▸ Front-panel digital display — internal temperature and bias current
- ▸ BNC input, dual 4 mm banana-jack outputs
- ▸ Wide-range 100–250 VAC input; forced-air cooled; 3U rack-mount
- ▸ Three-year warranty
ARI-300K Specifications
| Parameter | Specification |
|---|---|
| Model | ARI-300K |
| Type | Low-frequency power amplifier |
| Application | Conducted and radiated susceptibility testing |
| Standards | MIL-STD-461 (CS101, RS101), RTCA DO-160 (Section 18) |
| Frequency Range | 30 Hz to 300 kHz |

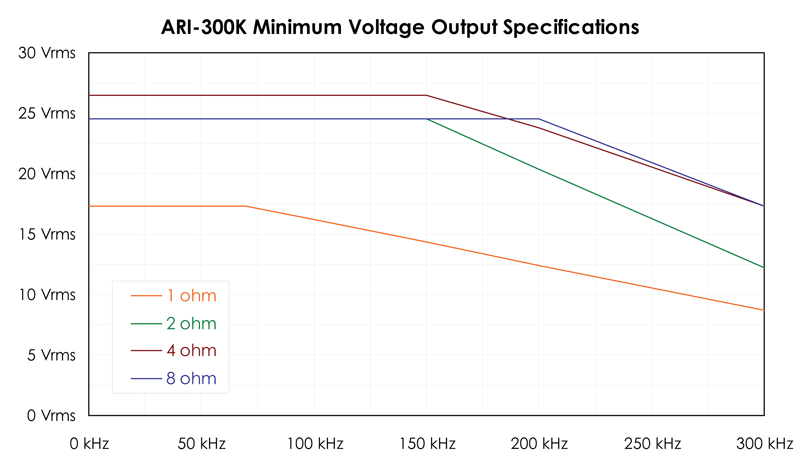

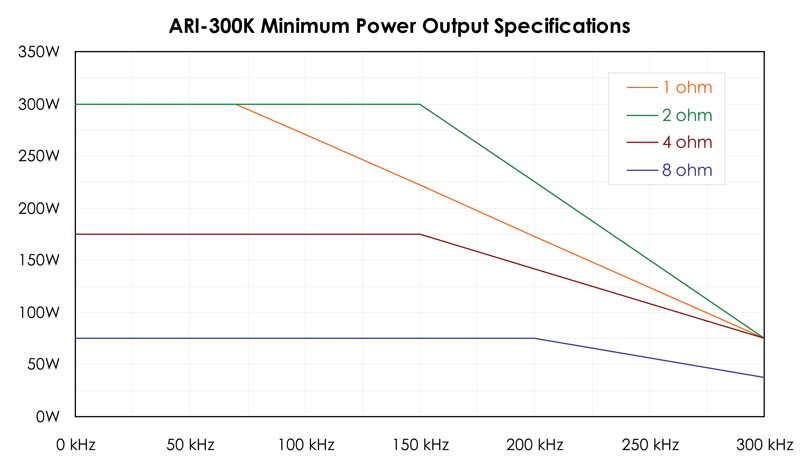

| Output Power | Up to 150 W (1–2 Ω), 100 W (4 Ω), 50 W (8 Ω) |
| Distortion | ≤8% |
| Phase Response | ±5° up to 75 kHz |
| DC Drift | < ±1.5 mV after 30 min |
| Input Impedance | 10 kΩ nominal |
| Output Impedance | 6.25 mΩ nominal |
| Protection | Over-temperature and over-current with LED fault indicators |
| Input Connector | BNC (female) |
| Output Connectors | Two 4 mm banana-jack binding posts |
| AC Input Power | 100–250 VAC, 50/60 Hz (1000 VA max) |
| AC Input Connector | IEC C13 receptacle |
| Cooling | Forced air |
| Dimensions (H × W × D) | 6.125" × 19" × 23.25" (15.9 × 48.3 × 59 cm) |
| Rack Mount | 3U, 5.25" × 19" × 22.25" |
| Operating Temperature | 40°F to 104°F (5°C to 40°C) |
| Warranty | 3 years |
Load configuration: Output power depends on load impedance — choose the 1/2/4/8 Ω configuration based on the effective impedance seen by the amplifier. Built-in protection with LED fault indicators guards against over-temperature and over-current conditions.
| Title | Link |
|---|---|
| ARI-300K Hardware V2.0 Datasheet | View PDF |
| ARI-300K Hardware V2.0 Manual (applies to serial numbers 42060020 and higher)) | View PDF |
| ARI-300K Manual Excerpt (Operating Limitations - applies to serial numbers 42060020 and higher) | View PDF |
| Manual REV020218 (applies to serial numbers 42060019 and lower) | View PDF |
| ARI-300K Old Version Datasheet | View PDF |
