6 Feet Automated Turntable EMC Testing

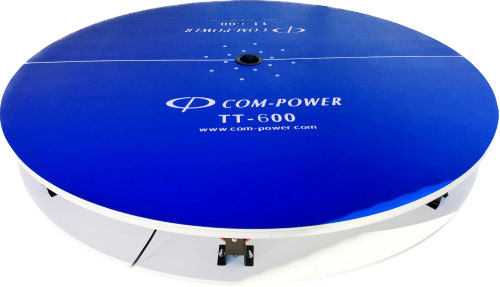

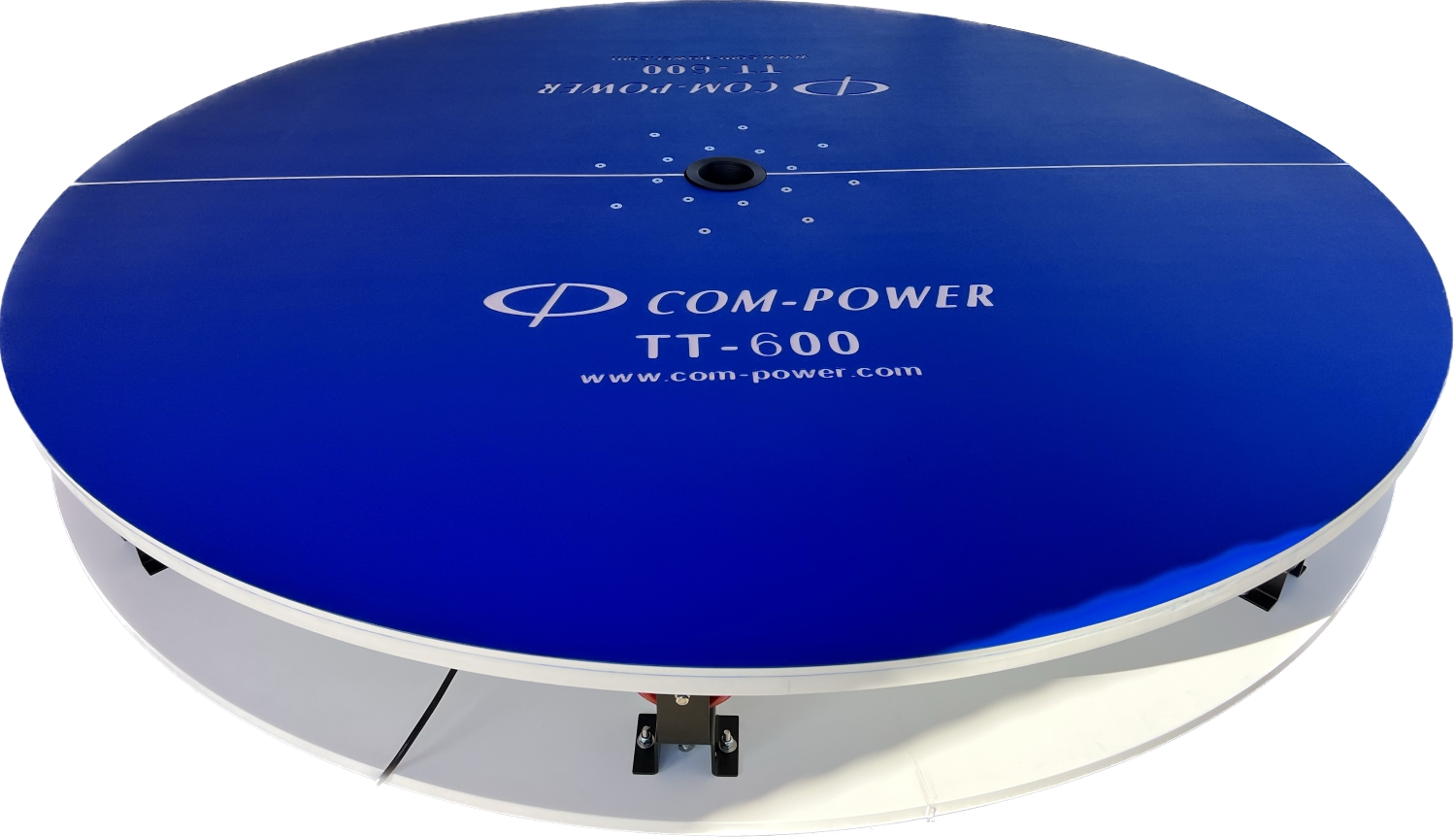

- ▸ TTW-600A automated EMC turntable, 6-foot diameter — a fully automated, low-profile motorized platform that rotates large equipment under test (EUT) during commercial EMI/EMC radiated emissions testing.
- ▸ Fully automated control via the Com-Power AMTTC-300 — the turntable is driven through the AMTTC-300 controller for programmed azimuth rotation and unattended, repeatable radiated test runs.
- ▸ Manual toggle-switch backup on the motor box — alongside automated control, the TTW-600A can be operated directly via a toggle switch on the table's motor box.
- ▸ Large 6 ft platform for sizable EUTs — the 6 ft (1.8 m) automated table accommodates large desktop and floor-standing equipment that exceeds a 4 ft turntable's capacity.
- ▸ Finds the maximum-emission orientation automatically — programmed rotation lets the test system locate the angle of peak electromagnetic interference for radiated emissions compliance.
- ▸ Motor and gear-reduction rotation drive — an electric motor with a gear-reduction unit delivers smooth, stable rotation under heavy load.
- ▸ Non-reflective construction for clean measurements — the turntable is built from non-reflective material so it adds no reflections to radiated emissions testing.
- ▸ Ideal for automated radiated emissions test systems — pairs with a Com-Power antenna mast and the AMTTC-300 controller for a fully automated EMC measurement setup.
TTW-600A Features
- ▸ Fully automated motorized EMC turntable — for EMI/EMC radiated emissions testing
- ▸ 6-foot (1.8 m) table diameter — for larger EUTs
- ▸ Automated control through the Com-Power AMTTC-300 controller
- ▸ Manual toggle-switch control on the motor box
- ▸ Motor and gear-reduction rotation drive
- ▸ Low-profile, above-ground platform
- ▸ Non-reflective construction — no measurement reflections
- ▸ Rotates the EUT to find the maximum-emission angle
- ▸ Integrates with Com-Power antenna masts for automated test systems
TTW-600A Specifications
| Parameter | Specification |
|---|---|
| Model | TTW-600A |
| Type | Fully automated motorized EMC turntable |
| Table Diameter | 6 feet (1.8 m) |
| Table Height | 9 inches (23 cm) |
| Load Rating | 1000 lbs (455 kg) |
| Control | Automated via Com-Power AMTTC-300 controller |
| Manual Control | Toggle switch on motor box |
| Rotation Drive | Motor and gear-reduction drive |
| Construction | Non-reflective material |
| Use Environment | Indoor and outdoor |
Note: Physical table specifications follow the 6 ft TTW-600 platform; non-reflective construction suits both indoor and outdoor test sites. Contact Com-Power to confirm exact ratings for your configuration.
