LISN 150 kHz to 30 MHz, 20 Amps

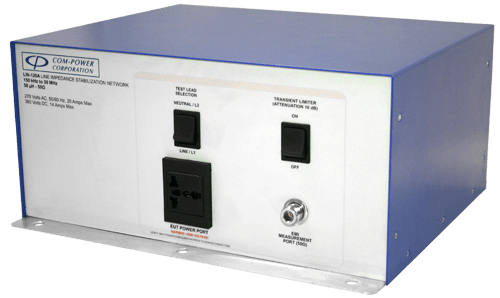

The LIN-120A Line Impedance Stabilization Network (LISN) provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products. The LIN-120A is compliant with both CISPR 16-1-2 and ANSI C63.4.
The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results.
The LIN-120A includes one pair of single-conductor networks, housed together, to be installed in series with each current-carrying conductor in a single-phase, dual-phase or DC power system. A second LIN-120A pair can be used to accommodate 3-phase power systems (Wye or Delta configurations).
