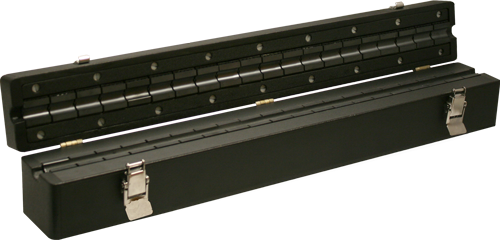

Absorbing Clamp for up to 1cm diameter cable
- ▸ Absorbing clamp (ferrite clamp), 30 MHz–1 GHz — disturbance power measurement on power and auxiliary I/O cables per CISPR 13 [EN 55013], CISPR 14 [EN 55014], and CISPR 32 [EN 55032].
- ▸ 0.5" (12.7 mm) aperture for cables up to 1 cm (0.39 in) diameter — matched to small mains cords, low-voltage DC leads, and signal/IO cabling from lighting controls, small appliances, and ITE peripherals.
- ▸ CISPR 16-1-3 compliant absorbing clamp measurement method (ACMM) — broadband RF current transformer plus two sets of split-ferrite rings deliver defined RF termination and decouple the mains side.
- ▸ Household appliances and small electronics — kitchen mixers, hair dryers, electric shavers, hand tools, and other small CISPR 14 products with mains cords under 1 cm.
- ▸ Lighting equipment with thin cabling — LED drivers, dimmers, fluorescent ballasts, and similar CISPR 15-style products evaluated using disturbance power on the power cord.
- ▸ ITE and multimedia auxiliary I/O cabling — USB, audio, video, and other peripheral cables on multimedia equipment qualified per CISPR 32 [EN 55032].
- ▸ Rolling chassis with wheels and top handle — clamp slides smoothly along the line under test for the swept length measurement called for in the absorbing clamp method.
- ▸ NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; pairs naturally with the SPA-900TG series spectrum analyzer/EMI receiver for disturbance power scans.
CLA-050 Features
- ▸ Absorbing clamp (ferrite clamp) per CISPR 16-1-3 — disturbance power measurements for CISPR 13, 14, and 32
- ▸ Frequency range 30 MHz to 1 GHz — covers the full CISPR disturbance power band
- ▸ 0.5" (12.7 mm) aperture diameter — cables up to 1 cm (0.39 in) diameter
- ▸ Clamp factor −4 to +5 dBpW/µV [−17 + clamp insertion loss]
- ▸ Clamp insertion loss 13 dB to 22 dB across the operating band
- ▸ Decoupling factor DF > 21 dB — isolates current transformer from receiver-side impedance
- ▸ Decoupling factor DR > 30 dB — isolates the line under test from the mains side
- ▸ 50 Ω BNC (female) RF output — direct mate to spectrum analyzer / EMI receiver
- ▸ 20 A maximum operating current — supports loaded mains-powered EUTs during measurement
- ▸ Mobile chassis with handle and wheels — easy traversal of the line under test, indoor or outdoor lab use
- ▸ Individually calibrated with NIST-traceable data and certificate — ISO/IEC 17025 accredited calibration available on request
- ▸ Three-year warranty
CLA-050 Specifications
| Parameter | Specification |
|---|---|
| Model | CLA-050 |
| Type | Absorbing clamp (ferrite clamp) |
| Applicable Standards | CISPR 16-1-3; supports CISPR 13 [EN 55013], CISPR 14 [EN 55014], CISPR 32 [EN 55032] |
| Frequency Range | 30 MHz to 1 GHz |
| Aperture Diameter | 0.5" (12.7 mm) |
| Maximum Cable Diameter | ~0.39" (1 cm) |

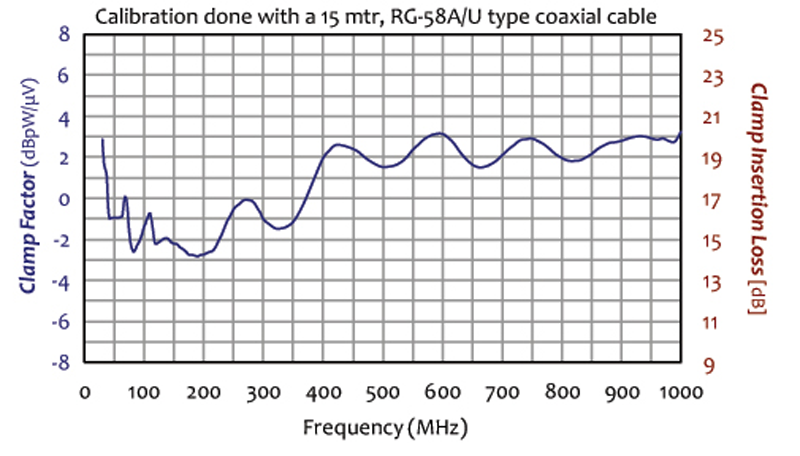

| Clamp Factor | −4 to +5 dBpW/µV [−17 + clamp insertion loss] |
| Clamp Insertion Loss | 13 dB to 22 dB |
| Decoupling Factor (DF) | > 21 dB |

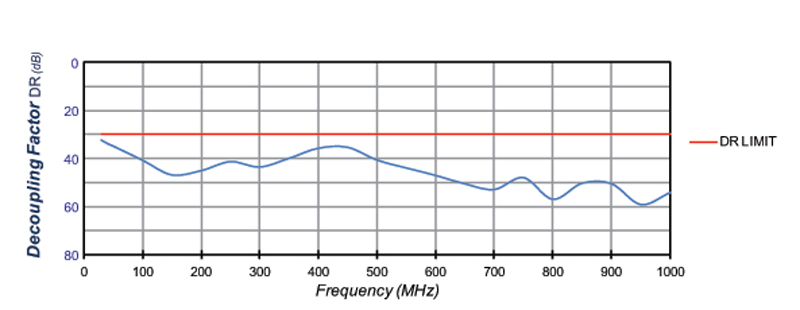

| Decoupling Factor (DR) | > 30 dB |
| RF Connector | 50 Ω BNC (female) |
| Operating Current (max) | 20 A |
| Operating Temperature | 40°F to 104°F (5°C to 40°C) |
| Mobility | Wheeled base with top handle |
| Calibration | NIST-traceable individual calibration; ISO/IEC 17025 accredited optional |
| Warranty | 3 years |
Typical use: Disturbance power measurement on mains cords and auxiliary I/O cables for small appliances, lighting equipment, hand tools, and multimedia/ITE products.
