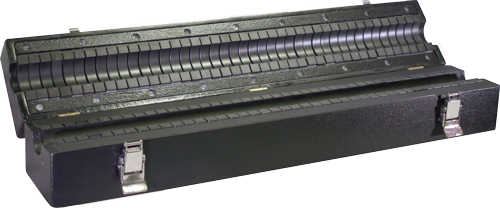

Absorbing Clamp for up to 3.2cm diameter cable
- ▸ Absorbing clamp (ferrite clamp), 30 MHz–1 GHz — disturbance power measurement on power and auxiliary I/O cables per CISPR 13 [EN 55013], CISPR 14 [EN 55014], and CISPR 32 [EN 55032].
- ▸ 1.37" (34.9 mm) aperture for cables up to 3.2 cm (1.26 in) diameter — accommodates large power cords, multi-conductor industrial cables, and bundled auxiliary I/O typical of larger appliances and information technology equipment.
- ▸ CISPR 16-1-3 compliant absorbing clamp method — broadband RF current transformer plus two sets of split-ferrite rings provide defined RF termination and mains-side decoupling for repeatable ACMM measurements.
- ▸ Large household and commercial appliances — washing machines, dishwashers, ranges, refrigerators, vacuum cleaners, and other CISPR 14 products with thicker mains cords.
- ▸ Industrial, scientific, and medical (ISM) equipment — benchtop instruments, motor drives, and other CISPR 11 / EN 55011 products evaluated by disturbance power on connected cables.
- ▸ Information technology and multimedia equipment — servers, network gear, and multimedia products with thick power cords or bundled I/O qualified per CISPR 32 [EN 55032].
- ▸ Wheeled chassis with top handle — smooth traversal of the line under test during the swept length measurement called for in CISPR 16-2-2.
- ▸ NIST-traceable individual calibration with two-year warranty — ISO/IEC 17025 accredited calibration optional; pairs naturally with the SPA-900TG series spectrum analyzer/EMI receiver for disturbance power scans.
CLA-150 Features
- ▸ Absorbing clamp (ferrite clamp) per CISPR 16-1-3 — disturbance power measurements for CISPR 13, 14, and 32
- ▸ Frequency range 30 MHz to 1000 MHz — covers the full CISPR disturbance power band
- ▸ 1.37" (34.9 mm) aperture diameter — cables up to 3.2 cm (1.26 in) diameter
- ▸ Designed for CISPR 14 [EN 55014] testing — suited for larger household and commercial appliances
- ▸ 50 Ω BNC (female) RF output — direct mate to spectrum analyzer / EMI receiver
- ▸ Compact-footprint enclosure 627 × 114 × 165 mm (24.7 × 4.5 × 6.5 in)
- ▸ Weight 21 lbs (9.5 kg) with wheels and handle for easy positioning
- ▸ Wheeled mobile chassis with handle — designed for daily indoor and outdoor lab use
- ▸ Individually calibrated with NIST-traceable data and certificate — ISO/IEC 17025 accredited calibration available on request
- ▸ Two-year warranty

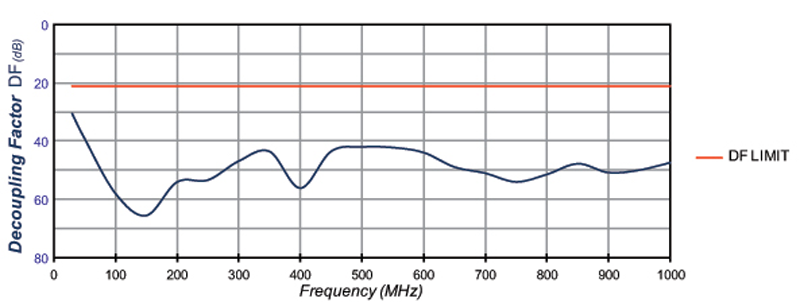

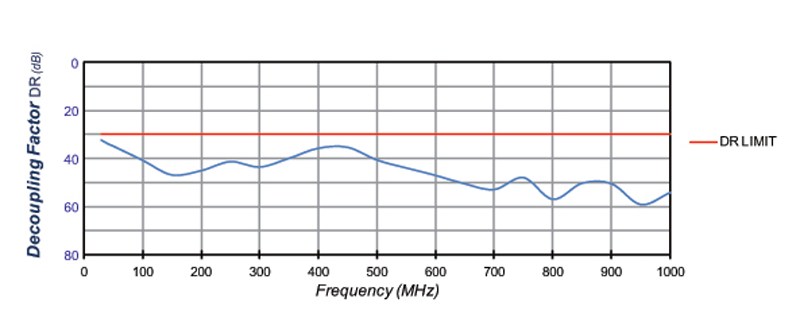

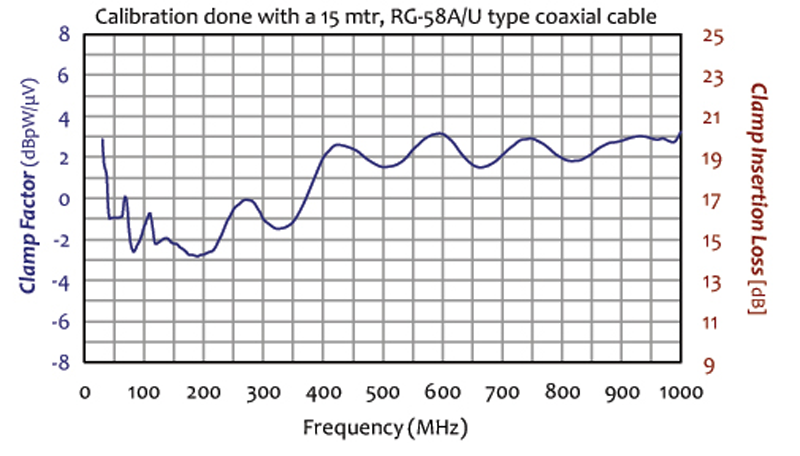

CLA-150 Specifications
| Parameter | Specification |
|---|---|
| Model | CLA-150 |
| Type | Absorbing clamp (ferrite clamp) |
| Applicable Standards | CISPR 16-1-3; supports CISPR 13 [EN 55013], CISPR 14 [EN 55014], CISPR 32 [EN 55032] |
| Frequency Range | 30 MHz to 1000 MHz |
| Impedance | 50 Ω |
| Connector Type | BNC (female) |
| Aperture Size | 34.9 mm (1.37 in) |
| Maximum Cable Diameter | 32 mm (1.26 in) |
| Dimensions | 627 × 114 × 165 mm (24.7 × 4.5 × 6.5 in) |
| Weight | 21 lbs (9.5 kg) |
| Mobility | Wheeled base with top handle |
| Calibration | NIST-traceable individual calibration; ISO/IEC 17025 accredited optional |
| Warranty | 2 years |
Typical use: Disturbance power measurement on large mains cords and bundled cables of major appliances, ISM equipment, and ITE/multimedia products. Larger aperture sibling of the CLA-050.
