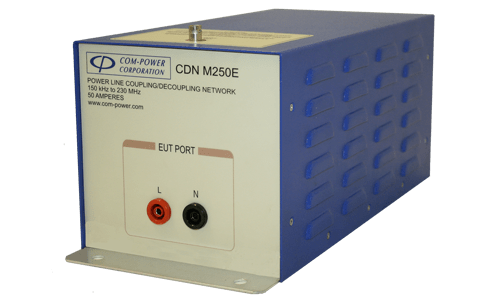

50 Amp Powerline CDN (Coupling Decoupling Network) for Two Conductors
- ▸ Two-line 50 A power CDN, 150 kHz–230 MHz — IEC 61000-4-6 conducted immunity for 2-wire DC or single-phase AC equipment drawing up to 50 A continuous current.
- ▸ 4 mm shrouded banana sockets rated 250 VAC / 350 VDC — doubled current capacity over the CDN-M225E without changing connector type or footprint.
- ▸ 150 Ω common-mode impedance, 9.5 dB VDF, 50 Ω BNC RF port — full IEC 61000-4-6 coupling profile with 40 Vrms RF input rating.
- ▸ High-current DC industrial supplies — 48 VDC server rack distribution, telecom plant rectifiers, and forklift / AGV battery chargers needing 50 A test capability.
- ▸ EV and e-mobility module-level testing — on-board chargers, traction inverter logic supplies, and high-power 24/48 VDC subsystems within electric vehicles.
- ▸ Welding equipment and induction heating power inputs — 2-wire input stages drawing tens of amps requiring CISPR 11 / FCC Part 18 supporting immunity work.
- ▸ Industrial DC motor drives and BLDC controllers — pump drives, conveyor controllers, and material-handling equipment up to 50 A DC bus current.
- ▸ NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; ADA-515-X 150 Ω / 50 Ω calibration adapters available separately for IEC 61000-4-6 test-level setting; integrates into Com-Power Conducted Immunity Test Systems.
CDN-M250E Features
- ▸ Power-line CDN for DC power or AC power without ground (L+N or DC+ / DC−) at 50 A — 2 lines configuration designed per IEC 61000-4-6 for conducted RF immunity testing of equipment power supplies
- ▸ 50 A per line continuous current rating covering 250 VAC / 350 VDC mains operation; 4 mm shrouded banana sockets for safe, repeatable EUT and AE power connections
- ▸ Frequency range 150 kHz to 230 MHz — covers the entire IEC 61000-4-6 standard band including the optional extended-band test region up to 230 MHz
- ▸ 150 Ω common-mode impedance profile per IEC 61000-4-6 with 9.5 dB voltage division factor (VDF) for accurate, repeatable test-level setting
- ▸ 50 Ω BNC (female) RF injection port — direct connection to immunity-test power amplifier output through standard 50 Ω coaxial cable
- ▸ 40 Vrms maximum RF input — supports test levels of 1, 3, and 10 Vrms per IEC 61000-4-6 with comfortable headroom
- ▸ High decoupling between EUT and AE ports — prevents auxiliary equipment from being stressed and prevents test signals from feeding back into the building mains
- ▸ Sturdy aluminum enclosure with carry handle — benchtop and floor-standing operation; ground stud on rear panel for proper reference-plane bonding
- ▸ NIST-traceable individual calibration with ISO/IEC 17025 accredited calibration available on request; all units shipped with calibration certificate
- ▸ Compatible with ADA-515-X 150 Ω / 50 Ω calibration adapters for test-level setting per IEC 61000-4-6 setup procedure
- ▸ Three-year warranty — covers manufacturing and workmanship defects
CDN-M250E Specifications
| Parameter | Specification |
|---|---|
| Model | CDN-M250E |
| CDN Type / Application | M-Series Power-Line CDN — DC power or AC power without ground (L+N or DC+ / DC−) at 50 A |
| Number of Power-Line Conductors | 2 |
| Applicable Standards | IEC / EN 61000-4-6, CISPR 16-1-2 |
| Frequency Range | 150 kHz to 230 MHz |
| Max Continuous Current (per line) | 50 A |
| Max Line Voltage (L – G) | 250 VAC / 350 VDC |
| EUT / AE Power Connectors | 4 mm shrouded banana sockets |
| RF Injection Port | 50 Ω BNC (female) |
| Max RF Input Voltage | 40 Vrms |

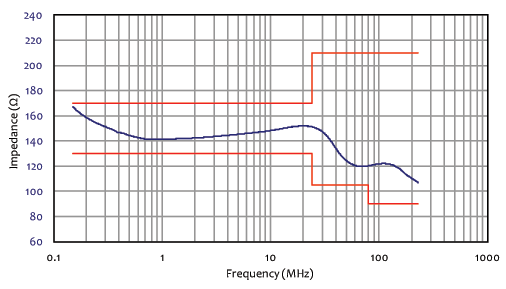

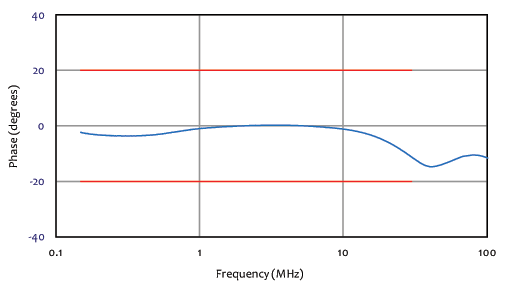

| Common-Mode Impedance | 150 Ω (IEC 61000-4-6 profile) |
| Voltage Division Factor (VDF) | 9.5 dB (typical, with specified tolerance) |
| Decoupling (EUT ↔ AE) | High isolation per IEC 61000-4-6 |
| Calibration | NIST-traceable; ISO/IEC 17025 accredited optional |
| Warranty | 3 years |
Test-level setup: ADA-515-X 150 Ω to 50 Ω calibration adapters (sold separately) are required for setting IEC 61000-4-6 test levels (typically 1, 3, and 10 Vrms) prior to testing the EUT.
