10 kHz–400 MHz Injection Probe

CLCI-400

10 kHz–400 MHz

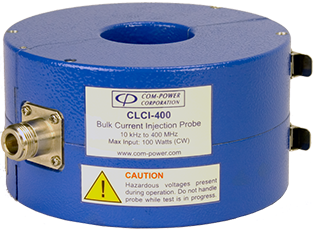

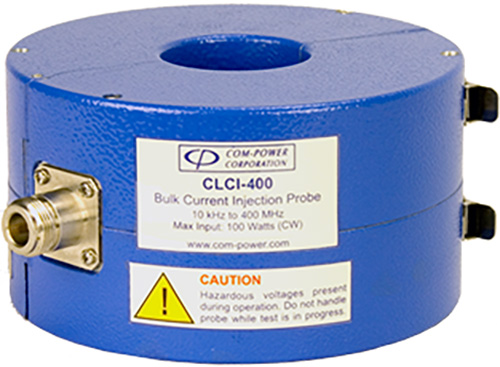

Com-Power CLCI-400 bulk current injection probe for EMC testing, 10 kHz to 400 MHz, 40 mm aperture

10 kHz–400 MHz Injection Probe

  • The CLCI-400 is a bulk current injection probe designed for conducted immunity testing in compliance with MIL-STD-461 and RTCA DO-160 standards.

  • It operates across a wide frequency range of 10 kHz to 400 MHz, enabling reliable RF injection for various EMC test requirements.

  • The probe features a 1.575” (40 mm) window diameter, suitable for testing a wide range of cable sizes and bundles.

  • Its 5.75” (146 mm) outer diameter ensures structural stability and durability during lab use.

  • A compact 2.75” (70 mm) width allows for convenient handling and integration into test setups.

  • The probe weighs 4.5 lbs (2.04 kg), offering a solid balance between portability and robustness.

  • It comes equipped with a Type-N (female) input connector for secure and standardized RF connections.

  • Designed to handle up to 100 watts of continuous input power, the CLCI-400 maintains performance across its full frequency range.

  • It is rated for a maximum core temperature of 284º F (140º C), ensuring thermal reliability under demanding test conditions.

  • Available accessories from Com-Power include the FCLC-400 Calibration Fixture, Term-50-100W Power Termination, and ACS-series Power Amplifiers for complete test system integration.

  • Frequency Range: 10 kHz to 400 MHz

  • Complies with MIL-STD-461 and RTCA DO-160

  • Current Injection & Monitoring capability

  • Split-core ferrite design for easy cable insertion

  • Three-year warranty

  • Product: Bulk Current Injection Probe

  • Frequency Range: 10 kHz to 400 MHz

  • Window Diameter: 1.575” (40 mm)

  • Outside Diameter: 5.75” (146 mm)

  • Width: 2.75” (70 mm)

  • Weight: 4.5 lbs (2.04 kg)

  • Input Connector: Type-N (female)

  • Maximum Input Power: 100 Watts (continuous)

  • Maximum Core Temperature: 284º F (140º C)

  • Accessories Available from Com-Power:

    • FCLC-400 Calibration Fixture

    • Term-50-100W Power Termination

    • ACS-series Power Amplifiers

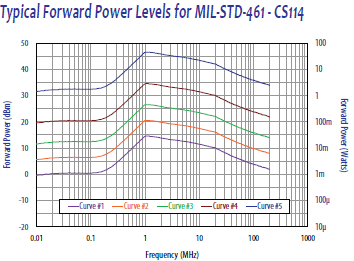

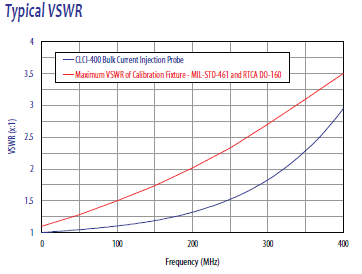

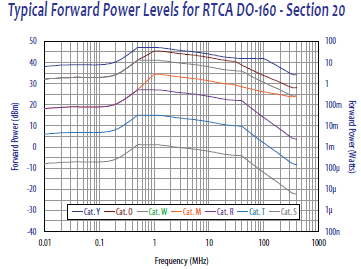

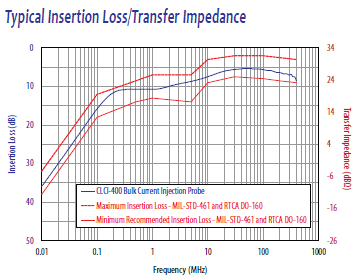

Typical Insertion Loss Values / Transfer Impedance Factors Typical VSWR Typical Forward Power Levels for RTCA DO-160 - Section 20 Typical Forward Power Levels for MIL-STD-461 - CS114

Title Link
CLCI-400 Datasheet View PDF
CLCI-400 Manual View PDF
