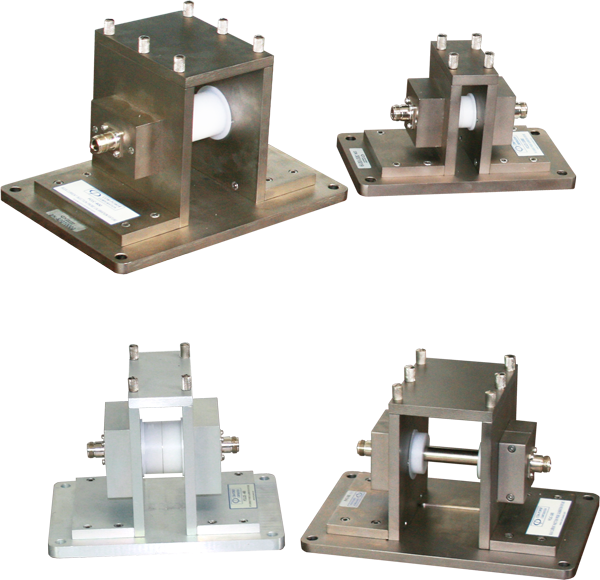

Current Probe Calibration Fixtures

  • Com-Power’s Current Probe and Bulk Current Injection (BCI) Probe Calibration Fixtures are each designed to accomodate the exact physical dimensions and electrical properties of the respective probe with which it is intended to be used (see cross reference table).
  • With the appropriate probe installed, a nominal 50 ohm transmission line impedance is maintained across the frequency range of the probe.
  • Calibration fixtures are used for calibration of Coupling Loss/Transfer Impedance of current probes and BCI probes, as well as for the calibration of test levels for conducted immunity/susceptibility tests using BCI probes.
Frequently bought together
  • Maintains 50 ohm Nominal Impedance Transmission Line with Probe Installed
  • Coupling Loss/Transfer Impedance Calibration
  • Test Level Calibration of Bulk Current Injection Probes
  • Three-year warranty

Please read datasheet on Documentation tab.

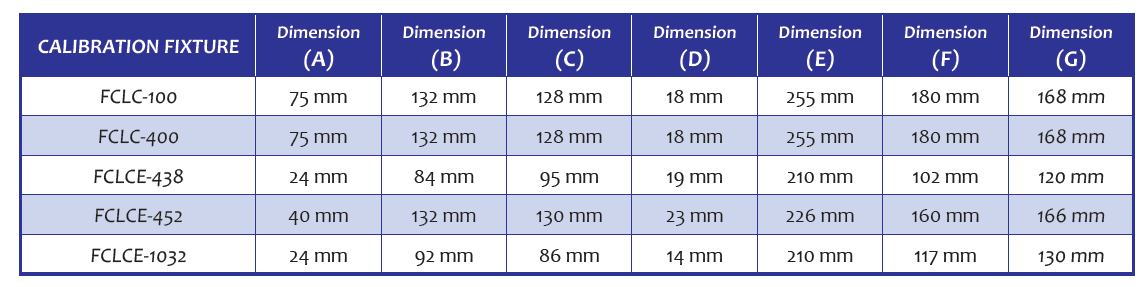

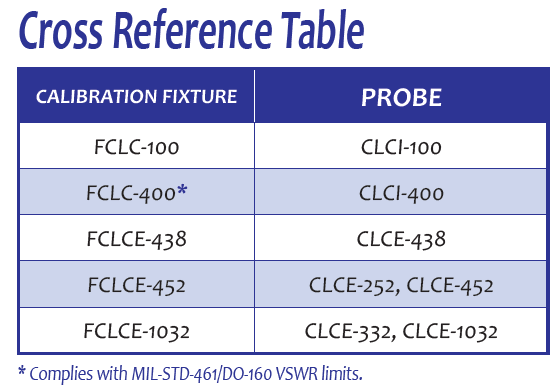

Cross Reference Table Fixture Dimensions
