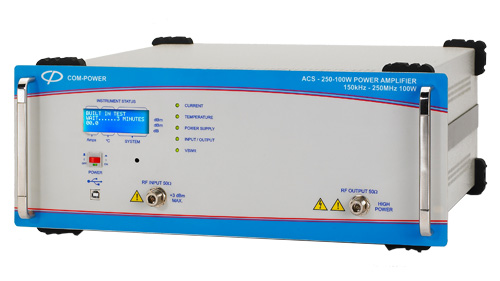

Broadband Power Amplifier 100 Watts for Conducted Immunity
-
Broadband frequency support: The ACS-250-100W operates across a wide frequency range of 150 kHz to 250 MHz, making it ideal for IEC 61000-4-6 conducted RF immunity testing and a variety of EMC applications.
-
High power output: This amplifier delivers a powerful 100 watts into a 2:1 VSWR load, ensuring sufficient energy for rigorous testing scenarios without compromising performance.
-
Excellent signal fidelity: With 50 dB of gain and no compression up to 100 watts, it maintains clean, undistorted signal output across the entire frequency band.
-
Versatile modulation compatibility: The unit supports AM, FM, and pulse modulation formats, enabling flexible integration with different test systems and signal generators.
-
Advanced protection features: An automatic safety shutoff activates when the VSWR exceeds 7, protecting the amplifier and connected equipment from potential damage.
-
Real-time display and monitoring: A front panel LCD screen provides continuous readouts of key performance metrics such as current, temperature, RF power input/output, gain, and VSWR.
-
Reliable and user-friendly: The amplifier includes a USB interface for automation, forced-air cooling for durability, and is backed by a 3-year manufacturer warranty for dependable long-term use.
-
Wide frequency range from 150 kHz to 250 MHz for EMC testing.
-
Delivers 100 watts of rated power output into a 2:1 VSWR load.
-
Provides 50 dB gain with ±2 dB variation for consistent performance.
-
No compression up to 100W, ensuring clean signal amplification.
-
Supports AM, FM, and pulse modulated input signals.
-
Low harmonic distortion of -15 dBc at 100 watts output.
-
Automatic shutoff if VSWR exceeds 7 for safety.
-
Front panel LCD displays current, temperature, power, VSWR, and gain.
-
USB interface allows automation and easy integration.
-
Includes a 3-year warranty for long-term reliability.
- Frequency Range: 150 kHz to 250 MHz
- Rated Power Output: 100 watts into 2:1 VSWR
- Gain: 50 dB ±2 dB
- Input for rated output: 0 dBm (typical)
- Automatic Safety Shut-off: 140 watt
- Power Output @ 1 dB Compression Point: No Compression unit 100 W
Input:
- Impedance 50 ohms (nominal)
- VSWR: 1.7 (maximum
- Input Signal Modulation Compatibility: AM, FM, or Pulse modulation
- Connector: Type N on Front Panel
Output:
- Impedance: 50 ohms (nominal)
- VSWR: 1.7 (maximum)
- Harmonic distortion: 15 dBc at 50 watts
- Mismatch Tolerance: Automatic Safety Shut-off @ VSWR >7
- Connector: Type N on Front Panel
Power: (Universal)
- AC, Single Phase: 100-240 VAC 50/60 Hz
- Display and Interfaces: USB Remote Interface
- Front Panel Display (Column 1): Amplifier Current measurement Data
- Front Panel Display (Column 2): Amplifier Temperature measurement data
- Front Panel Display (Column 3): Load VSWR, RF Power Input/Output, Gain
- Remote Interlock (optional): 2-pin DIN
Mechanical:
- Cooling: Forced air (self-contained fans)
- Size: 19” Rack 4U
- Weight: 47 lbs (21.4 kg)
- Operating Temperature Range: 0° C to +40° C
