LISN 50 Amps for CISPR 25 Safety Standard
- The LI-550C Line Impedance Stabilization Network (LISN) provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products.
- The LI-550C is compliant with both CISPR 25 (Automotive Durability Testing) and CISPR 16-1-2 .

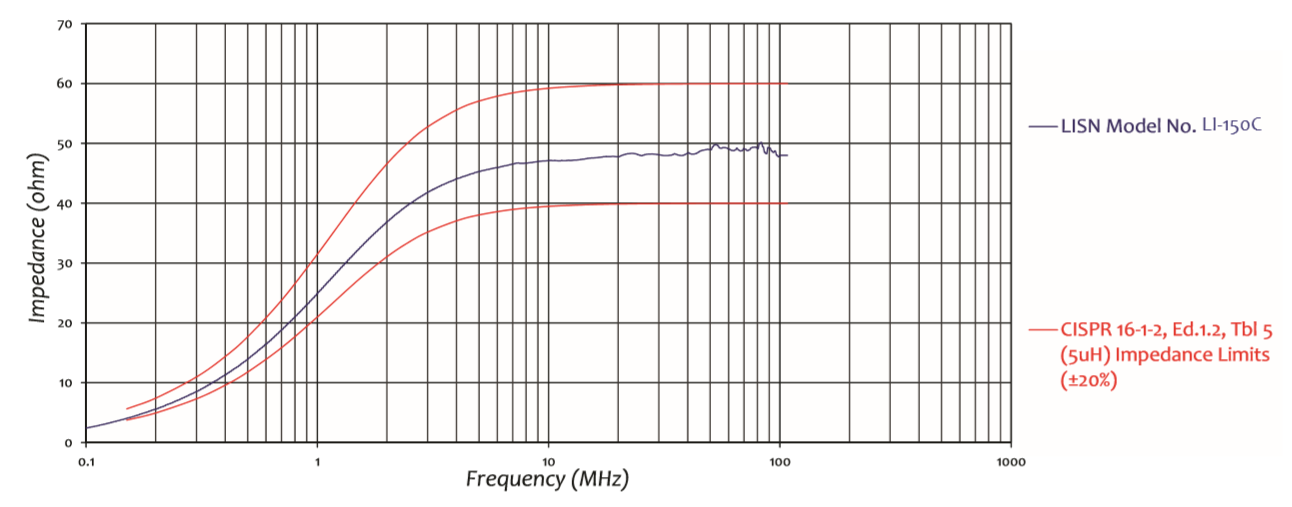

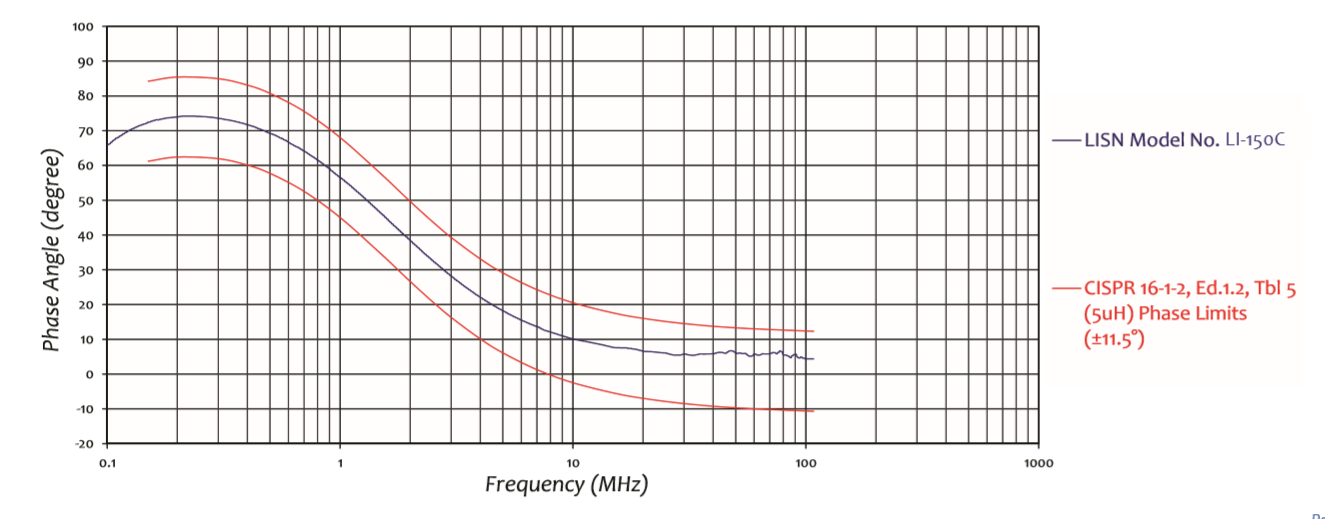

- The LISN provides defined stable impedance and isolates the EUT from power source influences, thereby providing accurate and repeatable results.

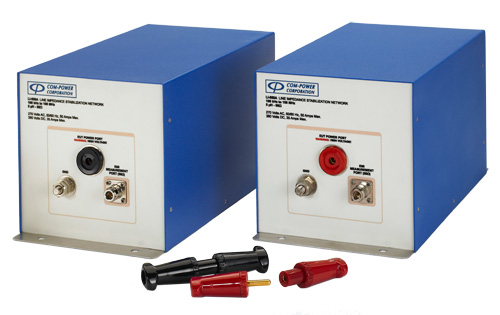

- The LI-550C includes one pair of separately housed single-conductor networks, to be installed in series with each current-carrying conductor in a single- phase, dual-phase or DC power system. A second LI-550C pair can be used to accommodate 3-phase power systems (Wye or Delta configurations).
- The LI-550C is equipped with Superior Electric SUPERCON® shrouded sockets at the mains (power input) and EUT (power output) ports.
- The matching color-coded plugs for connection to the mains and EUT wiring are included.
- This LISN uses air-core inductors to prevent saturation and permeability variation.
- The mounting plate of the LI-550C is left unpainted in order to facilitate connection to earth ground in its installation, which is essential due to high leakage current.
- Frequency range of 100 kHz to 108 MHz
- Fully compliant with CISPR 25 / CISPR 16-1-2
- “Air-core” inductors to prevent saturation
- Individual Calibration Included
- Three-Year Warranty
- Product Name: Line Impedance Stabilization Network (LISN)
- Specification: CISPR 25 / ANSI C16-1-2
- Application: Power Line conducted emission tests
- Frequency Range: 100 KHz - 108 MHz
- RF Connector: 50 Ohms N-type (female)
- Current Rating: 50 Ampere AC, 35 Ampere DC
- Voltage Rating: 270 VAC (Line to Ground), 380 VDC
- Inductors: 5 microhenry (air-core)
- Mains & EUT Connections: Superior Electric SUPERCON shrouded sockets
- Dimensions (each network): 13 x 7 x 7 inches / 33 x 17.7 x 17.7 cm
- Weight (each network): 14 lbs. / 6.3 kg
- Insertion Loss: < 1 dB (100 kHz to 108 MHz)
- Isolation: > 20 - 40 dB (100 kHz to 3 MHz), >40 dB (3 MHz to 30 MHz)
