Active Monopole Antennas for EMC Testing
Battery-powered electric field (E-field) antennas for low-frequency EMC testing from 9 kHz to 30 MHz. MIL-STD-461 RE102 compliant for military, aerospace, automotive, and commercial radiated emissions measurements in shielded and screened room environments.
Frequently Asked Questions: Active Monopole Antennas
What is an active monopole antenna and how does it work?

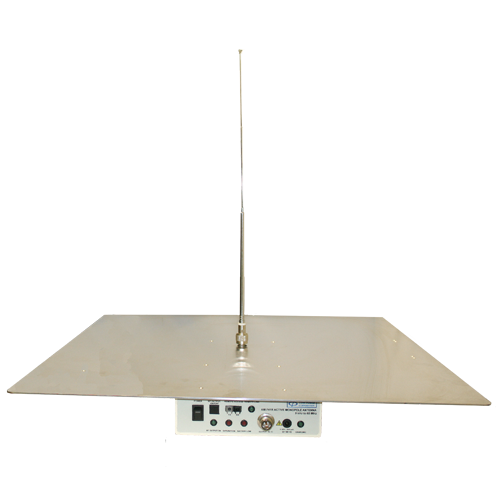

An active monopole antenna is a vertical telescoping rod mounted above a conductive ground plane (counterpoise), with an integrated active matching network and battery-powered preamplifier. Unlike loop antennas that measure magnetic field (H-field), monopole antennas measure the electric field (E-field) component of electromagnetic radiation. At low frequencies (9 kHz–30 MHz), the rod is electrically short relative to the wavelength, producing very high input impedance and weak induced voltage. The active matching network transforms this high impedance to 50Ω and amplifies the signal before it reaches the EMI receiver, enabling accurate detection of low-level E-field emissions that a passive rod could not reliably measure. The counterpoise completes the electrical circuit by acting as the “mirror image” of the missing antenna half.
What frequency range does the AM-741R active monopole antenna cover?
The AM-741R covers 9 kHz to 30 MHz continuously, and is usable up to 60 MHz. The 9 kHz–30 MHz range is the primary compliance range for MIL-STD-461 RE102 (low-frequency segment), RTCA DO-160 Section 21, ANSI C63.4 commercial E-field measurements, and sub-30 MHz portions of CISPR 25 automotive testing. The telescoping rod is adjustable from 23 cm to 105 cm, with the standard compliance height of 104 cm (41 inches) specified by MIL-STD-461 and most referencing standards. The 60 MHz usable upper limit makes it practical for some pre-compliance work in the VHF low band as well.
Which EMC standards require or specifically reference the active monopole antenna?
The AM-741R is designed to support: MIL-STD-461 RE102 (radiated emissions, military and aerospace equipment, 10 kHz–30 MHz segment — monopole is the mandated antenna type), RTCA DO-160 Section 21 (avionics radiated emissions, references MIL-STD-461 procedures for low frequencies), CISPR 25 (automotive vehicle component radiated emissions, sub-30 MHz portion), ANSI C63.4 (commercial product E-field measurements, 9 kHz–30 MHz, used alongside a loop antenna for H-field), and pre-compliance screening supporting any product tested against these frameworks. It is calibrated per SAE ARP-958 using the Equivalent Capacitance Substitution Method (ECSM).
What is the correct MIL-STD-461 grounding configuration for the AM-741R?
This is the most critical setup detail and has changed across MIL-STD-461 revisions. Per the latest revisions (G/H): the counterpoise must not be connected directly to the chamber ground plane — this is a common error from older practice. Instead, the counterpoise grounds through the output cable shield, which connects to a metallic L-bracket bonded to the chamber floor with a low-impedance connection (<2.5 mΩ). A ferrite sleeve (minimum 20–30Ω at 20 MHz) must be installed on the output cable, centered between the bracket and the antenna base, to suppress common-mode currents on the shield. The optional AMS-741 Grounding Kit provides all required hardware (ferrite-fitted cable, metallic bracket, bonding hardware) pre-configured to MIL-STD-461 requirements, eliminating setup errors.
How is the AM-741R calibrated and what documents are included?
Each AM-741R is individually calibrated using the Equivalent Capacitance Substitution Method (ECSM) per SAE ARP-958. The ECSM method measures antenna capacitance between the rod and counterpoise, calculates the theoretical antenna factor from capacitance and frequency, and verifies preamplifier gain and system response — providing calibration traceable to fundamental electrical standards without requiring a reference field source. The calibration certificate and antenna factor vs. frequency data table are supplied with every antenna. Antenna factor is typically −1.2 to −0.3 dB(m−1) across 9 kHz–30 MHz (±0.5 dB max variation). ISO 17025 accredited calibration is also available upon request.
When should I use an active monopole instead of an active loop antenna for low-frequency testing?
The choice depends on the standard and the dominant emission mechanism. Use the AM-741R monopole when: MIL-STD-461 RE102 testing is required (monopole is mandated — loop is not acceptable for this test); the EUT has extensive external cabling or enclosure seams that emit E-field via capacitive coupling; or digital logic, microprocessors, and high-impedance circuits are the dominant emission sources. Use the AL-130R loop when: CISPR or ANSI C63.4 H-field measurements are required; the EUT contains switching power supplies, motors, transformers, or other inductive sources generating magnetic fields. For ANSI C63.4 commercial testing, both monopole (E-field) and loop (H-field) measurements are required from 9 kHz to 30 MHz — neither alone is sufficient for full compliance.
What is the RAI-100 Remote Antenna Interface and is it required for the AM-741R?
The RAI-100 is an optional fiber optic controller that connects to the AM-741R and enables remote monitoring and control of battery status, preamplifier saturation, and RF circuit on/off from up to 30 meters away. It uses a galvanically isolated fiber optic link, so there is no electrical connection between the antenna in the shielded chamber and the operator’s control room — preventing ground loops and RF contamination of the measurement. It is particularly important for MIL-STD-461 and automated test setups where the operator cannot physically access the antenna during a test run, and for any situation where saturation monitoring from outside the chamber is needed. While not always required, it is strongly recommended for formal compliance testing environments.
What are the power indicators on the AM-741R and what does each signal?
The AM-741R includes four status indicators to ensure proper operation during testing: RF ON/OFF confirms the RF measurement circuit is active and the antenna is in measurement mode; Battery Low gives advance warning before the battery reaches a level that would compromise measurement accuracy, allowing the operator to replace or recharge before test integrity is affected; Amplifier Saturation indicates the preamplifier input is being overdriven by a signal too strong for the linear range — any measurement taken during saturation is invalid and must be discarded; and Charging Status confirms the 6V NiMH battery is actively charging when connected to the charger. Monitoring these indicators — particularly saturation — is essential during compliance testing. The RAI-100 fiber optic interface allows all four states to be monitored remotely from outside the test chamber.
