coupling decoupling network

CDN for 3 Conductors Powerline

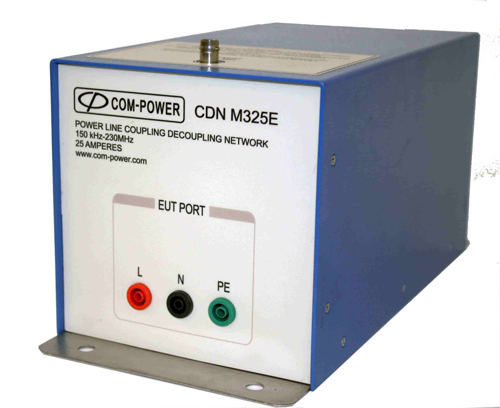

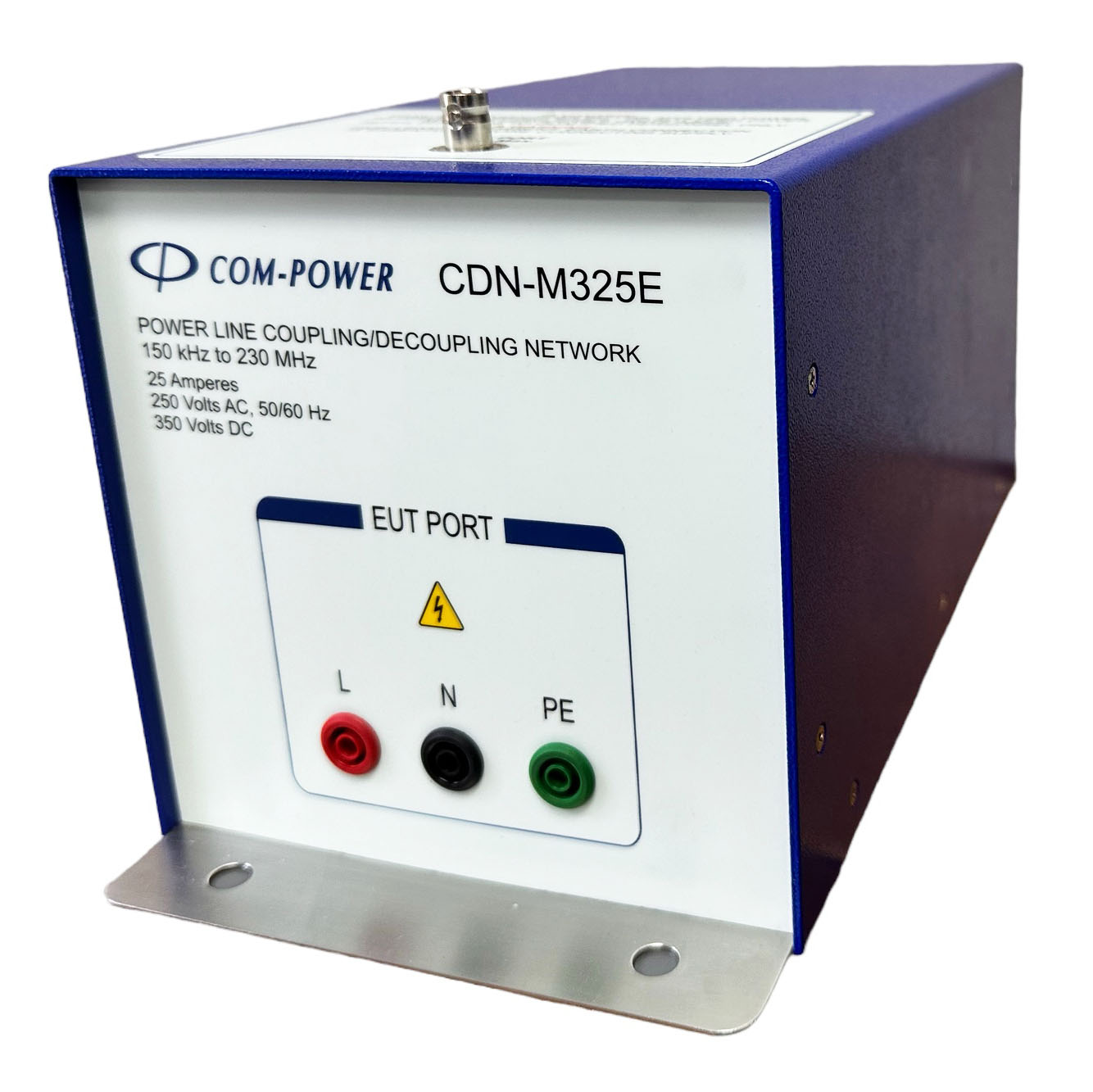

  • CDN-M325E is the Coupling Decoupling Network with a three conductor power cable.
  • This CDN complies the test Standards of IEC / EN 61000-4-6.
  • The disturbance signals are coupled to each conductor in the supply lines.
  • This standard M series CDN has a current rating of 25 Amps and a frequency range of 150 kHz - 230 MHz.
  • Each CDN is optionally available with two (2) Common Mode (or shorting) Adapters. These adapters are used to short circuit each of the CDN power conductors at the EUT and Auxiliary Equipment (AE) port during calibration of test levels, and also during measurement of the CDN electrical performance parameters (impedance, phase, voltage division factor, isolation, etc.).
Frequently bought together
  • Frequency Range: 150 kHz to 230 MHz
  • Current Ratings of 25, 50 and 100 Amps
  • Single-Line (M1), Two-Line (M2), Three-Line (M3), Four-Line (M4) and Five-Line (M5) Models
  • Fully Compliant with CISPR 16-1-2 and IEC 61000-4-6
  • Three-Year Warranty
  • Product Name: Coupling Decoupling Network (CDN)
  • Compliant Test Standards: IEC / EN 61000-4-6
  • Application: Three conductor power cable
  • Frequency Range: 150 kHz to 230 MHz
  • RF Input Voltage: 40 V (Max)
  • RF Input Connector: 50 Ω BNC (Female)
  • Voltage Rating: 250 V AC / 350 V DC (Line to Ground)
  • Current Rating: 25 Amps AC / 17 Amps DC (Max)
  • AE and EUT Connections: 4 mm shrouded banana sockets
  • Common Mode Impedance:
    • 150 kHz - 26 MHz: 150Ω ± 20Ω
    • 26 MHz - 80 MHz: 150Ω + 60Ω / – 45Ω
    • 80 MHz - 230 MHz: 150Ω + 60Ω / – 60Ω
  • Voltage Division Factor: 9.5 dB +4 / -1
  • Decoupling of Common Mode Disturbance: ≥ 40dB(EUT/AE)
  • Dimensions: 6 x 6 x 13 inches or 15.2 x 15.2 x 33 cm
  • Weight: 5 lbs. or 2.3 kg
  • Accessories Available from Com-Power for setting test levels and running the test:
    • ADA-M325E shorting adapters
    • ADA-515-2 150 Ω to 50 Ω adapters
    • TEP-050 50 Ω Terminator
    • ATTN-6-100W Power Attenuator
    • DCU-300-100W Directional Coupler
    • ASC series Power Amplifiers
