Conducted Immunity Testing Probe
-

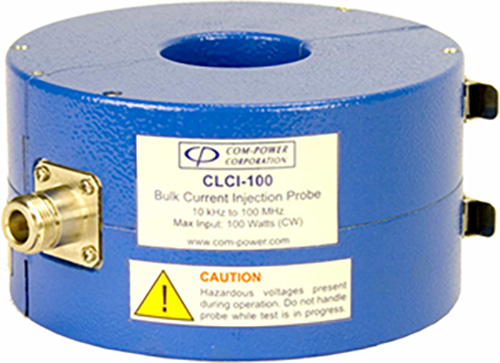

The CLCI-100 is a precision bulk current injection probe engineered for conducted RF immunity testing in EMC applications.
-
Operates over a 10 kHz to 100 MHz frequency range, suitable for IEC 61000-4-6 test environments.
-
Features a 1.575” (40 mm) window diameter, ideal for clamping onto individual cables or bundles.
-
Constructed with a 5.75” (146 mm) outer diameter housing to provide durability and mechanical stability.
-
A compact profile with a 2.75” (70 mm) width ensures easy integration into test setups.
-
Weighs approximately 4.5 lbs (2.04 kg), offering a solid balance of portability and structural strength.
-
Equipped with a Type-N (female) input connector for dependable RF signal connections.
-
Capable of handling up to 100 watts of continuous RF input power across its operating range.
-
Rated for a maximum core temperature of 284°F (140°C), supporting extended usage under thermal load.
-
Compatible accessories include the FCLC-100 Calibration Fixture, ADA-515-2 Adapters, Term-50-100W Power Termination, and ACS-series Power Amplifiers for complete system support.
-
Frequency range: 10 kHz to 100 MHz
-
40 mm window fits large cables and bundles
-
Split-core design for easy clamp-on access
-
Complies with IEC 61000-4-6 and CISPR 16-1-2
-
Supports up to 100 watts continuous RF power
-
Enables both injection and monitoring
-
1:1 turns ratio for accurate current transfer
-
Works with FCLC-100 calibration fixture
-
Durable design with 140°C max core temperature
-
Includes 3-year manufacturer warranty
Product: Bulk Current Injection Probe
Model: CLCI-100
-
Frequency Range: 10 kHz to 100 MHz
-
Window Diameter: 1.575” (40 mm)
-
Outside Diameter: 5.75” (146 mm)
-
Width: 2.75” (70 mm)
-
Weight: 4.5 lbs (2.04 kg)
-
Input Connector: Type-N (female)
-
Maximum Input Power: 100 Watts (continuous)
-
Maximum Core Temperature: 284ºF (140ºC)
-
Turns Ratio: 1:1
-
Accessories Available: FCLC-100 Calibration Fixture, ADA-515-2 150Ω to 50Ω Adapters, Term-50-100W Power Termination, ACS-series Power Amplifiers
Quote Request
