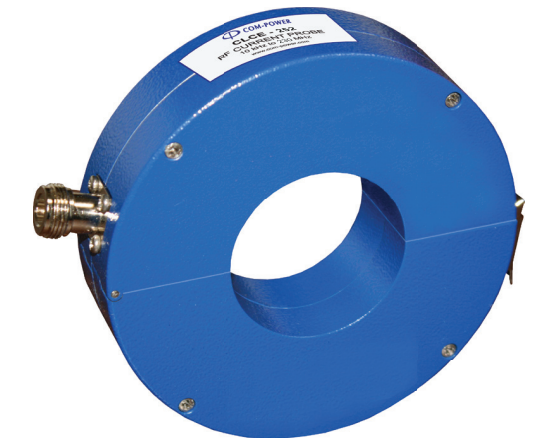

400 MHz RF Current Probe

Wide Frequency Range (9 kHz–400 MHz):
Covers a broad RF spectrum ideal for EMC testing, conducted emissions, and RF current measurements on various cable types.

Large Aperture Design (2 inches):
Fits cable bundles up to 52 mm, making it suitable for industrial, automotive, and military high-current test applications.

EMC Compliance Testing:
Engineered for conducted disturbance measurements per CISPR 15/25/32, MIL-STD-461, IEC 61000-4-6, and RTCA DO-160 standards.

Current Monitoring for BCIP:
Functions as a reliable Bulk Current Injection Probe (BCIP) monitor in immunity testing for accurate current assessment.

Inductive Clamp Measurement:
Measures current inductively via toroidal transformer principles—enabling efficient, non-contact testing of live lines.

Split-Core Convenience:
Hinged split-core design allows fast clamping on cables without the need for disconnection—ideal for quick diagnostics.

NIST Traceable Calibration:
Each unit comes with individual NIST-traceable calibration data, with optional ISO 17025 certified calibration service.

Compact & Lightweight:
With dimensions of 5.9” x 4.9” x 1.4” and a weight of 1.5 lbs, it offers portability and durability for lab or field use.

High Current Capacity:
Supports 200A DC, 100A AC (50/60 Hz), 60A AC (400 Hz), 2A RF, and 2000A (8/20 μs pulse)—built for rigorous testing needs.

Com-Power Accessories Compatible:
Optimized for use with FCLCE-452 Calibration Fixture and SPA-932TG Spectrum Analyzer in EMC compliance setups
