LISN for CISPR 25 & 16-1-2, DO-160, MIL-STD 461


10 kHz to 400 MHzDO-160/ MIL-STD 4615 microhenry / 50 Amps

line impedance stabilization network

LISN for CISPR 25 & 16-1-2, DO-160, MIL-STD 461

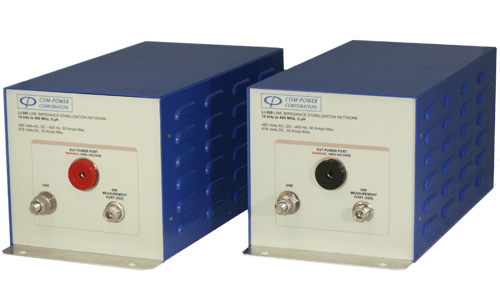

The LI-350 LISN for DO-160, MIL-STD 461F, CISPR 25, and CISPR 16-1-2.

The LI-350 Line Impedance Stabilization Network (LISN) provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by most worldwide standards for commercial products. The LI-350 is compliant with both RTCA DO-160 and MIL-STD 461F.

The concept and advantages of the LISN is to:

a) connect in series with, and impose a defined impedance on, the lines under test, thereby providing a distinct advantage over current or voltage probe measurements, where the impedance of the lines is largely uncontrolled;

b) provide a coaxial RF measurement port for connection to the measurement equipment, to which the disturbance voltages present at the EUT port are coupled for measurement; and,

c) isolate the AE (ancillary equipment) port from the EUT and RF ports, which:

    1) minimizes the influence of the AE-connected equipment/cabling on the impedance (and voltage division factor) of the network; and,

    2) reduces the amplitude of any ambient signals and spurious disturbance voltages generated by the AE-connected equipment, thereby minimizing their potential impact on the measurement results.

Two pairs of LI-350 can accommodate 3-phase power systems (Wye or Delta configurations).

Frequently bought together
  • Frequency range of 10 kHz to 400 MHz
  • Fully compliant with DO-160/ MIL-STD 461/ CISPR 25 / CISPR 16-1-2
  • “Air-core” inductors to prevent saturation
  • Individual Calibration Included
  • Three-Year Warranty
  • Product Name: Line Impedance Stabilization Network (LISN)
  • Specification: RTCA DO-160 / MIL-STD 461F / CISPR 25 / CISPR 16-1-2
  • Application: Power Line conducted emission tests
  • Frequency Range: 10 kHz to 400 MHz
  • RF Connector: 50 Ohms N-type (female)
  • Current Rating: 50 Ampere AC, 35 Ampere DC
  • Voltage Rating: 480 VAC (Line to Ground), 676 VDC
  • Inductors: 5 microhenry (air-core)
  • Mains & EUT Connections: Superior Electric SUPERCON shrouded sockets
  • Dimensions (each network): 15.4 x 7 x 6.6 inches / 39.1 x 17.7 x 16.7 cm
  • Weight (each network): 6 lbs. / 2.7 kg
  • Insertion Loss: < 0.2 dB (150 kHz to 30 MHz)

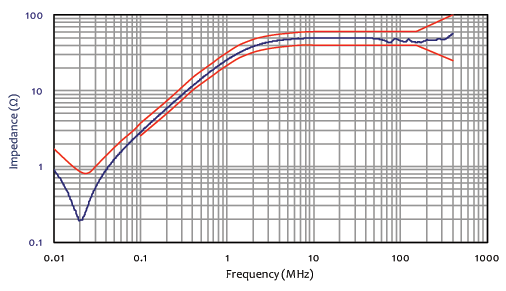

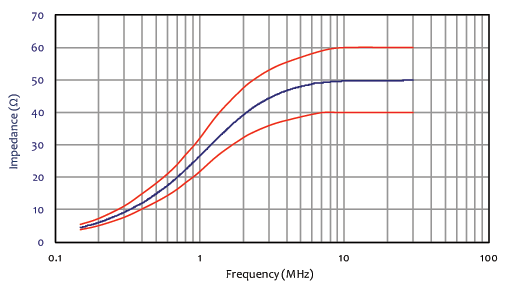

chart chart
