Biconical Antenna

Model AB-900A

25 MHz to 300 MHz

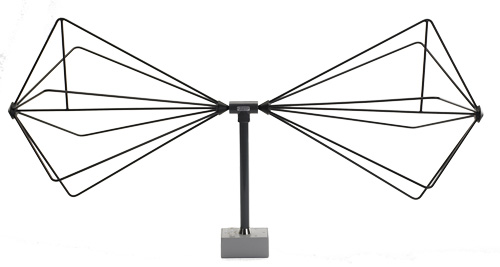

AB-900A Biconical Antenna

Also known as Broadband Dipole Antenna

The Model AB-900A is used for emissions and immunity testing to meet various EMC standards such as Mil-Sts-461, FCC, CISPR and DO-160. It has frequency range of 25 MHz to 300 MHz. The broadband characteristics of the biconical antenna makes it a good choice for making sweep measurements and for automated measurement systems.

  • Frequency Range: 25 MHz to 300 MHz
  • Transmit & Receive Capabilities emissions/immunity applications
  • Individual Calibration Included per ANSI C63.5 with NIST traceability
  • Three-year Standard Wararanty
  • Frequency Range: 25 MHz to 300 MHz
  • Polarization: Linear
  • Nominal Impedance: 50 Ohm
  • Power Handling: 50 Watts Continuos
  • Connector: N-type(female)
  • Test Specifications: FCC, CISPR, EN, ETSI, FAA, MIL-STD 461, Automotive, etc
  • Width: 52.75 in / 134 cm
  • Dimensions (L x W x D): 51.5 x 20.2 x 27.2 [130.8 x 51.3 x 69.1 cm]
  • Weight: 5 lbs. [2.3 kg]
  • antenna factor frequency chart for broadband dipole antenna 25 mhz to 300 mhz field strength and frequency chart for broadband dipole antenna 25 mhz to 300 mhz forward power chart for standard biconical broadband antenna isotropic gain frequency chart for broadband dipole antenna 25 mhz to 300 mhz return loss chart for standard biconical broadband antenna vswr chart for standard biconical broadband antenna
