Operational Advantage:

During FCC Part 15 or CISPR emissions testing from 200 MHz to 1 GHz, a tuned dipole kit requires stopping the test 15-20 times to change baluns and adjust element lengths. A log periodic antenna covers the entire range continuously without interruption, reducing test time from 3-4 hours to 1-2 hours while improving measurement repeatability by eliminating operator-dependent tuning variables.

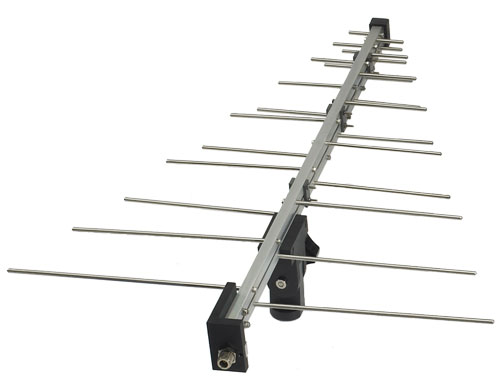

📊 ALC-100: Compact Log Periodic (200 MHz - 1 GHz, 50W)

Applications & Use Cases:

• Commercial Emissions Testing (FCC Part 15, CISPR 22/32): Primary antenna for 200-1000 MHz portion of commercial product testing. Covers broadcast FM (88-108 MHz extended operation), VHF communications, UHF TV, cellular bands, and ISM 900 MHz. Single antenna eliminates element tuning delays that plague tuned dipole testing in this frequency range.
• NSA Site Validation (Alternative Method): While ANSI C63.4 specifies tuned dipoles as primary NSA antennas, many labs use calibrated log periodics as practical alternative for 200 MHz - 1 GHz region. Eliminates dipole tuning at each frequency (saving 1-2 days per validation). Must use individually calibrated log periodics (not published antenna factors) and document deviation from standard procedure in validation report.
• Pre-Compliance Testing: Rapid emissions screening during product development. Engineers can sweep 200 MHz - 1 GHz in minutes without antenna changes, identifying problem frequencies early. Compact size and light weight enable easy relocation between test chambers, benchtop setups, and troubleshooting locations.
• Medical Device Testing (IEC 60601-1-2): Radiated emissions from medical electrical equipment. The 200 MHz - 1 GHz range captures emissions from microprocessors, digital displays, and wireless telemetry systems in medical devices.
• Automotive Component Testing: CISPR 25 radiated emissions from vehicle ECUs, sensors, and entertainment systems. Log periodic's directional pattern helps isolate specific harness or component emissions during troubleshooting.
• Light Industrial Immunity Testing: 50W power handling suitable for immunity levels up to 10-20 V/m at 3 meters. Covers IEC 61000-4-3 commercial immunity requirements in 200 MHz - 1 GHz range. For higher field strengths, use ALP-100 power version.
• RF Site Surveys: Ambient RF measurements at OATS or indoor facilities. Directional pattern helps identify RF interference sources by bearing. Weather-resistant construction allows outdoor use.
• Antenna Range Work: Compact size and portability make ALC-100 ideal for antenna pattern measurements, gain comparisons, and range calibration activities requiring frequent antenna repositioning.

Test Environment Suitability:

• Semi-Anechoic Chamber: Excellent - compact size fits chamber constraints, directional pattern reduces multipath
• Open Area Test Site: Excellent - weather-resistant, lightweight for mast mounting, no element adjustment in wind
• Shielded Room: Very Good - reduced size minimizes near-field coupling to chamber walls
• Benchtop/Near-Field: Good - compact dimensions enable close-proximity troubleshooting

Setup Tips: Mount on tripod with hinge mechanism for quick polarization changes. Elements point toward EUT (end-fire radiation pattern). For vertical polarization, mount antenna horizontally with elements parallel to ground. Rotate 90° on hinge for horizontal polarization. Maintain minimum 1m height above ground plane. Calibration data supplied as antenna factor vs frequency table - load into receiver/software for automatic correction during sweep.

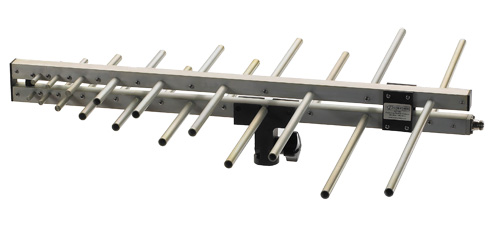

📊 ALP-100: High-Power Log Periodic (200 MHz - 1 GHz, 500W)

Applications & Use Cases:

• Radiated Immunity Testing (IEC 61000-4-3, ISO 11452): The ALP-100's 500W power handling generates field strengths of 100-150 V/m at 3 meters across 200 MHz - 1 GHz, meeting automotive (80-200 V/m), industrial (10-30 V/m), and military (varies by specification) immunity requirements. Single antenna for entire frequency sweep eliminates field strength variations caused by antenna changes mid-test.
• Automotive Immunity (ISO 11452-2): High-power capability meets automotive OEM requirements for component-level immunity testing. 500W enables 100+ V/m field strengths for testing safety-critical ECUs (ABS, airbag controllers, steering systems). Covers 200 MHz - 1 GHz cellular, broadcast FM, and communication band immunity.
• MIL-STD-461 RS103: Radiated susceptibility testing for military and aerospace equipment. ALP-100 covers 200 MHz - 1 GHz portion of RS103 frequency range (typically extends to 18 GHz using horns). 500W provides required field strengths for ground equipment, shipboard systems, and airborne platforms per MIL-STD-461 requirements.
• RTCA DO-160 Section 20: Radiated susceptibility testing for avionics equipment. Covers VHF/UHF communication bands and navigation aids in 200 MHz - 1 GHz range. Categories A through M specify different field strength levels - ALP-100's 500W capability covers all categories.
• High-Volume Production Testing: Automated immunity test systems in high-volume manufacturing (automotive tier suppliers, consumer electronics) benefit from ALP-100's no-tuning operation. Continuous frequency sweeps without antenna changes maximize throughput. 500W power provides margin for field strength uncertainty and aging amplifier output.
• Emissions Testing (Same as ALC-100): When not used for immunity, ALP-100 serves identical emissions testing role as ALC-100 (FCC, CISPR, pre-compliance). The larger size and weight are disadvantages for emissions-only applications, but dual emissions/immunity capability justifies investment for full-service EMC labs.
• Test Equipment Rental: Rental houses stock ALP-100 as universal 200 MHz - 1 GHz antenna covering both emissions and immunity applications, reducing inventory complexity.

Immunity Field Strength Capability:

Setup Tips: Requires heavy-duty tripod or ceiling mount for 4 lb weight. For immunity testing, use low-loss cables (LMR-400 minimum) to minimize power loss between amplifier and antenna. Install directional coupler between amplifier and antenna to monitor forward power (should match amplifier output) and reflected power (should be <10% of forward for VSWR <2:1). Perform field strength calibration with calibrated field probe before each test. Allow antenna cooling periods during extended high-power testing (>200W continuous for >30 minutes).

Frequency Coverage Comparison

Typical FCC/CISPR Test (30 MHz - 1 GHz):

Option 1: Tuned Dipoles Only

• 30-65 MHz: Dipole with DB1 balun (adjust elements at each frequency)
• 65-180 MHz: Change to DB2 balun, adjust elements
• 180-400 MHz: Change to DB3 balun, adjust elements
• 400-1000 MHz: Change to DB4 balun, adjust elements
• Result: Maximum accuracy, but 15-20 tuning stops, 3-4 hour test time

Option 2: Biconical + Log Periodic (Traditional)

• 30-300 MHz: Biconical antenna (no tuning, continuous sweep)
• 300-1000 MHz: Change to log periodic (no tuning, continuous sweep)
• Result: One antenna change at 300 MHz, ~2.5 hour test time, good accuracy

Option 3: Biconical + Log Periodic Starting at 200 MHz

• 30-200 MHz: Biconical antenna
• 200-1000 MHz: Log periodic (ALC-100 or ALP-100)
• Result: One antenna change at 200 MHz, covers full range, ~2.5 hour test time

Option 4: CombiLog Hybrid (if available)

• 20 MHz - 2 GHz: Single antenna, no changes
• Result: Zero antenna changes, ~2 hour test time, slight cost premium

Emissions Testing Setup

1. Antenna Orientation: Log periodic antennas are end-fire: radiation is strongest off the smallest element end (high-frequency end). Point this end toward EUT. Boom (center support structure) should aim at EUT center.
2. Polarization Setup: For vertical polarization, mount antenna horizontally (boom parallel to ground, elements vertical). For horizontal polarization, rotate 90° using hinge mount (boom becomes vertical).
3. Height & Distance: Set antenna height per standard (1m initial, vary 1-4m for max search). Position at specified distance from EUT (3m or 10m). Maintain this distance during height scan.
4. Cable Connection: Connect Type-N cable to antenna. Route cable perpendicular to boom to minimize cable radiation. Use ferrite cores if cable radiation suspected.
5. Calibration File: Load antenna factor table (provided with antenna) into EMI receiver or measurement software. Modern receivers auto-apply corrections during sweep. Verify calibration is active before test.
6. Frequency Sweep: Configure receiver to sweep 200-1000 MHz. No antenna adjustment needed during sweep. Record maximum emissions at each frequency, apply regulatory limits, generate test report.

Immunity Testing Setup (ALP-100)

1. System Assembly: Signal generator → modulator (80% AM @ 1 kHz per IEC 61000-4-3) → RF amplifier (500W+) → directional coupler → ALP-100 → EUT
2. VSWR Check: Before applying power, verify VSWR <2:1 across 200-1000 MHz. High VSWR damages amplifier and creates measurement errors. Use network analyzer or VSWR meter.
3. Field Calibration: Position calibrated field probe at EUT location (where EUT will be placed). Perform frequency sweep at low power (50-100W). Measure field strength at each frequency. Create lookup table: Frequency → Amplifier Power Required for Target Field Strength.
4. Field Uniformity Verification: Per ISO 11452-2 Annex A, measure field strength at 16 points in test volume (4x4 grid, ±7.5cm from EUT center). Verify all points within ±6 dB of calibration point. Adjust if needed.
5. EUT Positioning: Place EUT in calibrated test volume. Ensure EUT and cables positioned identically to field uniformity mapping setup.
6. Immunity Sweep: Apply modulated RF field while sweeping 200-1000 MHz per test plan. Typical dwell: 15 seconds minimum per frequency (some standards specify longer). Monitor EUT for failures: loss of function, degradation, permanent damage.
7. Power Monitoring: Continuously monitor forward and reflected power during test. Forward power should match calculated values from calibration. Reflected power <10% of forward indicates good VSWR. High reflected power indicates impedance mismatch or antenna failure.

Common Issues & Solutions

• Issue: Low signal levels received / poor sensitivity
  Solution: Verify antenna is pointing at EUT (end-fire pattern). Check cable connections and connector tightness. Verify calibration file is correctly applied. Compare to known signal source.
• Issue: High VSWR in certain frequency bands
  Solution: Inspect elements for physical damage, corrosion, or loose connections. Clean element-to-boom junctions. Check feed system for water ingress. Replace antenna if persistent.
• Issue: Inconsistent immunity results during frequency sweep
  Solution: Verify field probe calibration. Check amplifier output stability (some amplifiers have frequency-dependent gain). Ensure EUT doesn't move during test. Verify modulation depth remains 80%.
• Issue: Amplifier shuts down / overheats during high-power testing
  Solution: Reduce duty cycle (add dwell time between frequency steps for cooling). Verify VSWR <2:1 (high VSWR reflects power into amplifier). Check amplifier ventilation. Use lower power if possible.
